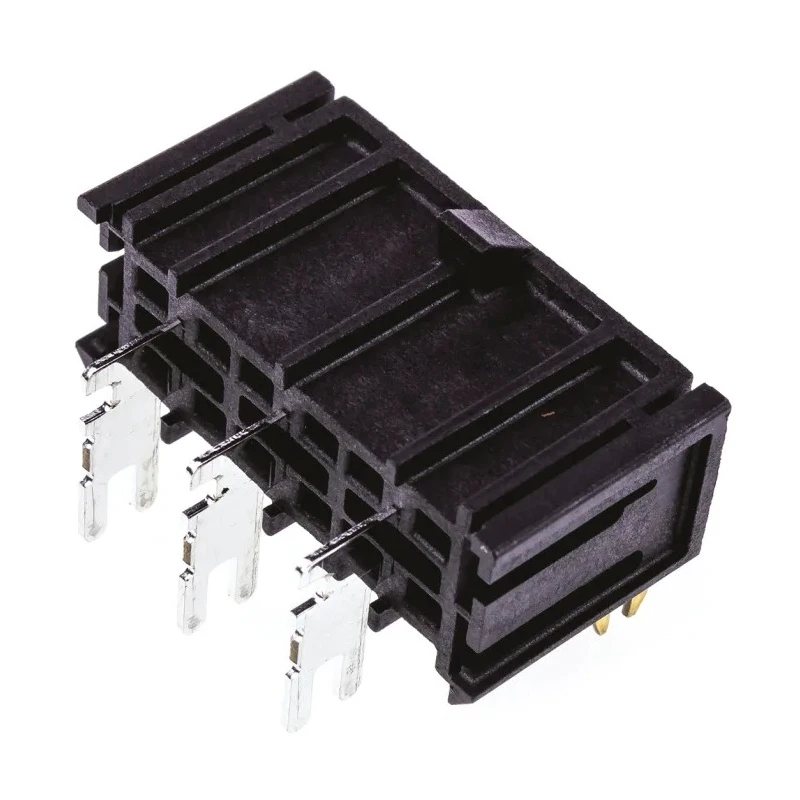

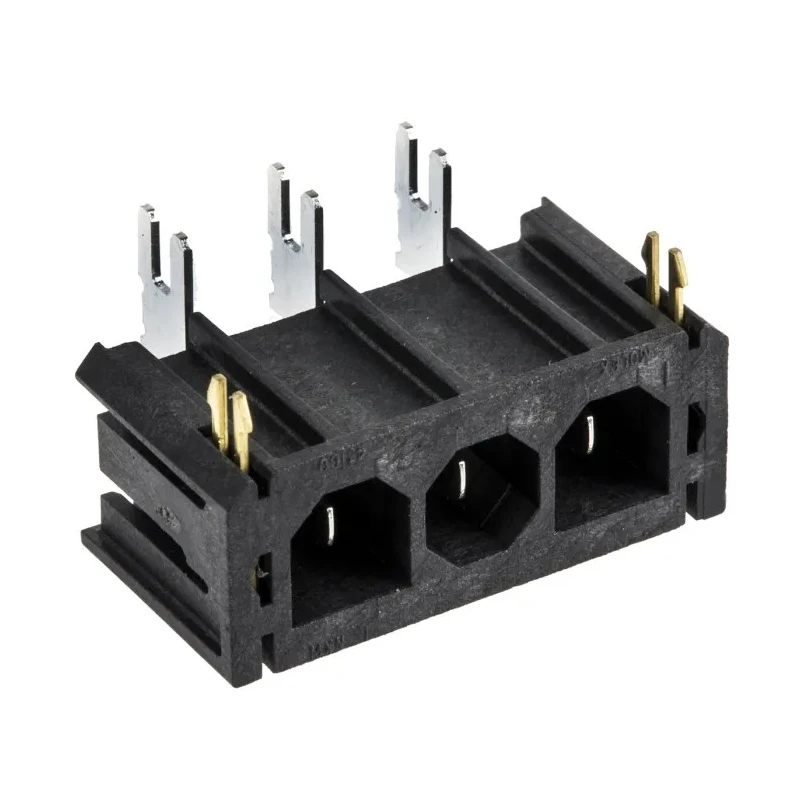

Molex Sabre Series Right Angle Through Hole PCB Header 3 Contacts 7.49 mm Pitch 1 Row Shrouded 43160-3103

Molex 43160-3103 from the Sabre Series is a right angle through hole PCB Header designed for robust and reliable electrical connections in high current applications.

This component consists of 3 male brass contacts plated with tin, arranged in a single row with a 7.49 mm pitch, making it ideal for wire-to-board connector systems where a right angle orientation is needed.

The housing is made from high temperature thermoplastic material, providing excellent mechanical strength and heat resistance suitable for operating temperatures ranging from -40°C up to 75°C.

Its shrouded design enhances contact insulation and minimizes the risk of accidental disconnections by incorporating positive locking casings with an audible click and polarised housing to ensure correct mating.

The header is rated to handle currents up to 18A and voltages up to 600V, making it suitable for industrial, electronic component manufacturing, and power connector applications.

Other key features include a 3.81 mm tail pin length to facilitate effective soldering, row pitch of 7.5 mm compatible with standard PCB designs, and solder termination type for secure and reliable connections.

This connector complies with UL E29179, UL1950, and CSA LR19980 standards, underlining its quality and safety suitability for demanding environments. Designed for high current applications up to 18A with a voltage rating of 600V.

Features a right angle orientation suitable for wire-to-board connections. Constructed with high temperature thermoplastic housing for durability. Contacts are brass with tin plating and solder termination for reliable connectivity.

Supports operating temperatures from -40°C to 75°C for flexible application environments. Incorporates positive locking and polarising casing to ensure secure mating and prevent accidental disconnections. Tail pin length of 3.81 mm facilitates effective soldering and mechanical stability.

Single-row connector row pitch is 7.5 mm compatible with standard PCB layouts. Shrouded design provides insulation and protection to the contacts. Adheres to UL E29179 and UL1950, and CSA LR19980 standards, assuring quality and safety compliance.

This product is ideal for applications in electronic components assembly, power connectors, and PCB manufacturing, supporting industrial and commercial use cases requiring reliable electrical interconnections. Explore the full Molex Sabre Series category for compatible connectors and accessories on EnvMart.
