Tektronix Oscilloscope Probe Current Type 2 MHz BNC Connector TCPA400

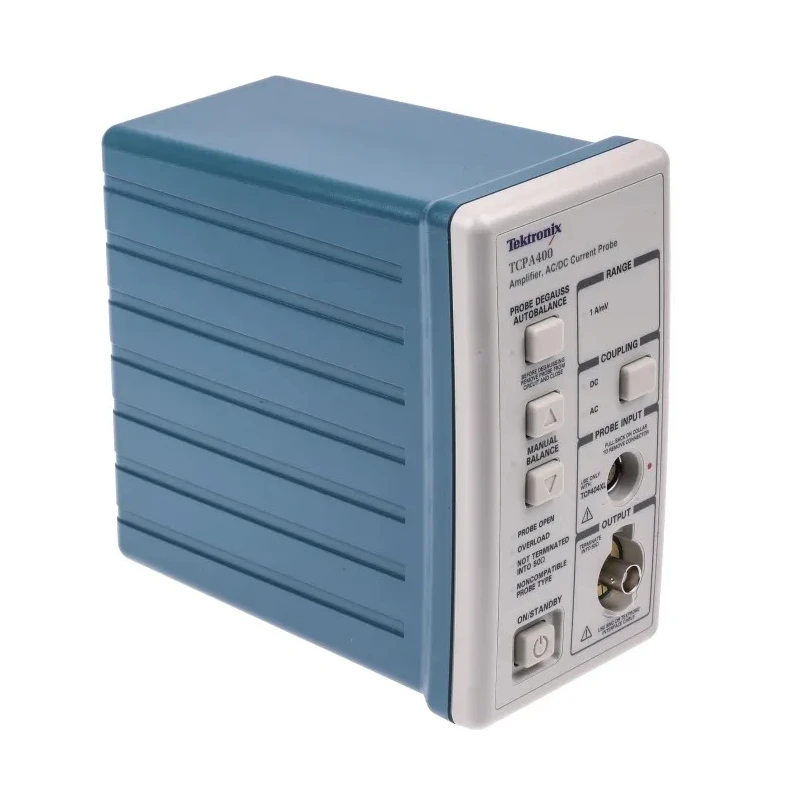

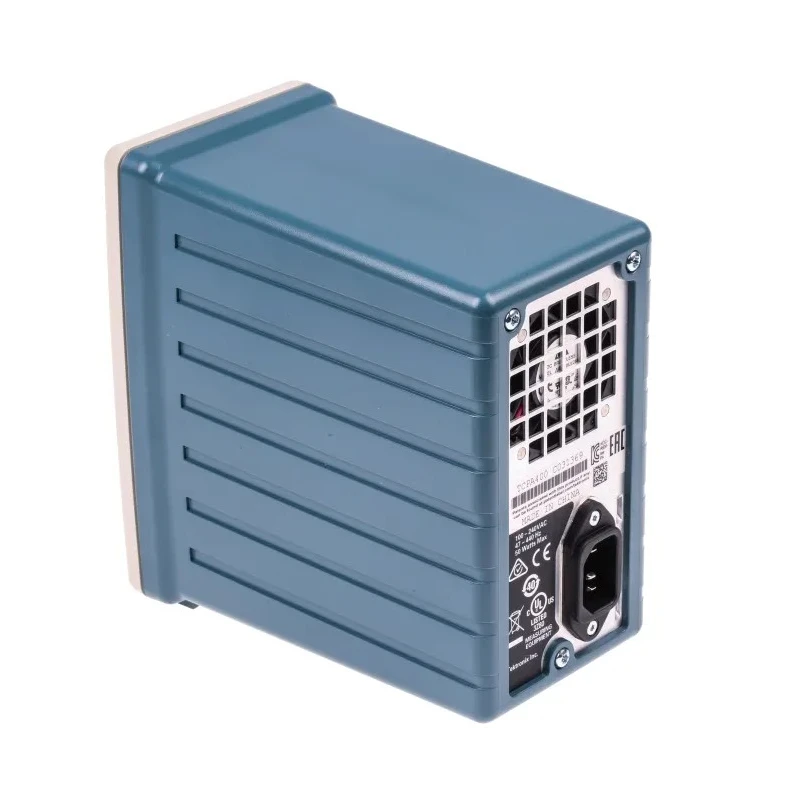

Tektronix TCPA400 oscilloscope current probe amplifier is a state-of-the-art device designed for use with the Tektronix TCP404XL probe and compatible TDS series oscilloscopes. This probe offers a bandwidth of 2 MHz and features a BNC connector for easy integration. Its split-core construction enables effortless circuit connection without the need for disconnecting wires.

The probe supports AC/DC current measurement from low-level milliamps to high currents with automatic scaling and onscreen display to minimize manual calculation errors. Low insertion impedance helps reduce loading effect on the device under test, ensuring accurate measurements. Visual status indicators alert operators to conditions such as overload, degauss, or probe mismatch, enhancing operational safety and reliability.

This probe is suitable for development, analysis, and service of power supplies, semiconductor devices, electronic ballasts, inverters, and motor drives. It finds use across industrial electronics, data communications, telecom, and transportation system applications.

AC/DC measurement capabilities with up to 2 MHz bandwidth. Automatic scaling and unit display on oscilloscope screen to reduce measurement errors. Low insertion impedance to minimize device loading. Split-core construction allows easy connection to circuits.

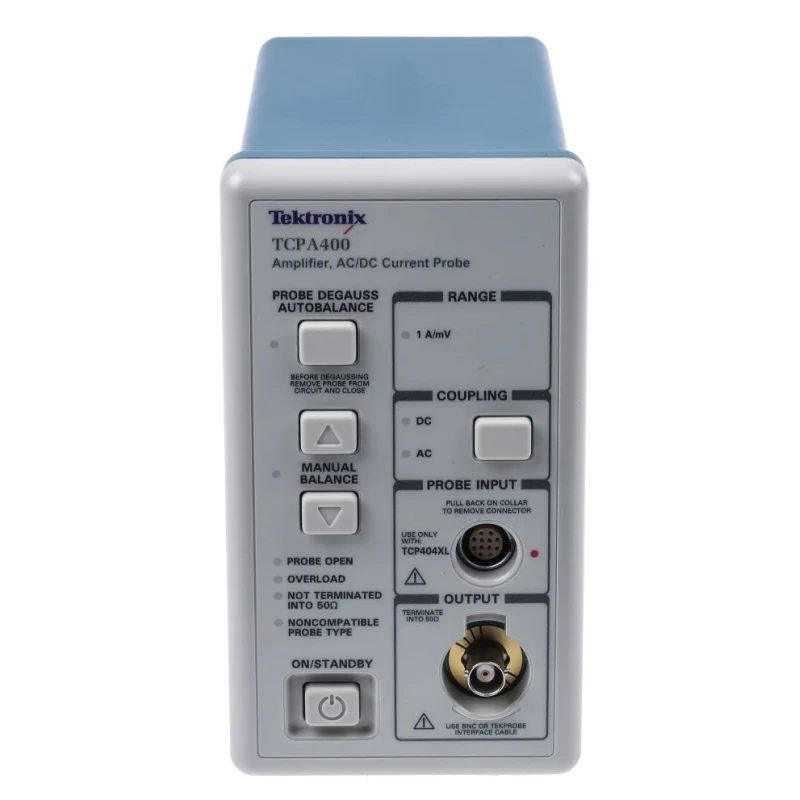

Visual status indicators including overload and probe mismatch warnings. Wide application range including power electronics and telecom installations. Safety ratings CAT III, CAT II, and CAT I for 600 V service voltages.

Country of origin: United States.

This Tektronix oscilloscope current probe is ideal for precision current measurement in laboratory, industrial, and field electronics testing environments. Browse the Oscilloscope Probes category at EnvMart for compatible test equipment and accessories.
