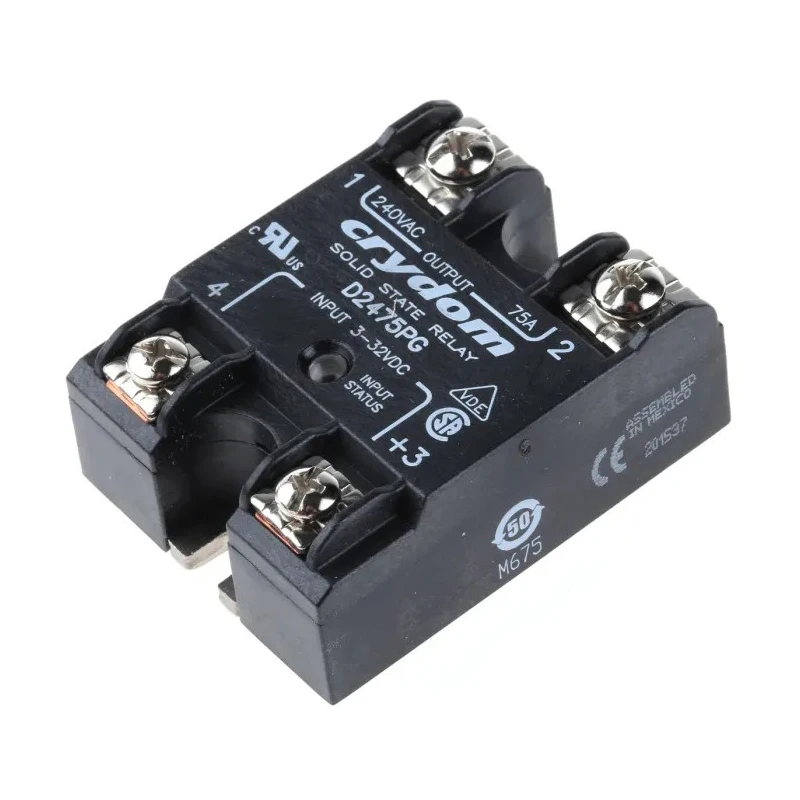

Crydom 1/240 V AC Series Solid State Relay, 75 A Load Current, Panel Mount, 280 Vrms Load, 32V Control D2475PG

Crydom D2475PG solid state relay is a high-performance device engineered for industrial automation and control systems. It facilitates reliable switching of inductive and resistive loads with a maximum current rating of 75 amperes and can handle load voltages up to 280 Vrms. The relay uses zero-cross switching technology, activating at near zero voltage to minimize electrical noise and inrush current spikes, thus protecting sensitive equipment and enhancing operational efficiency.

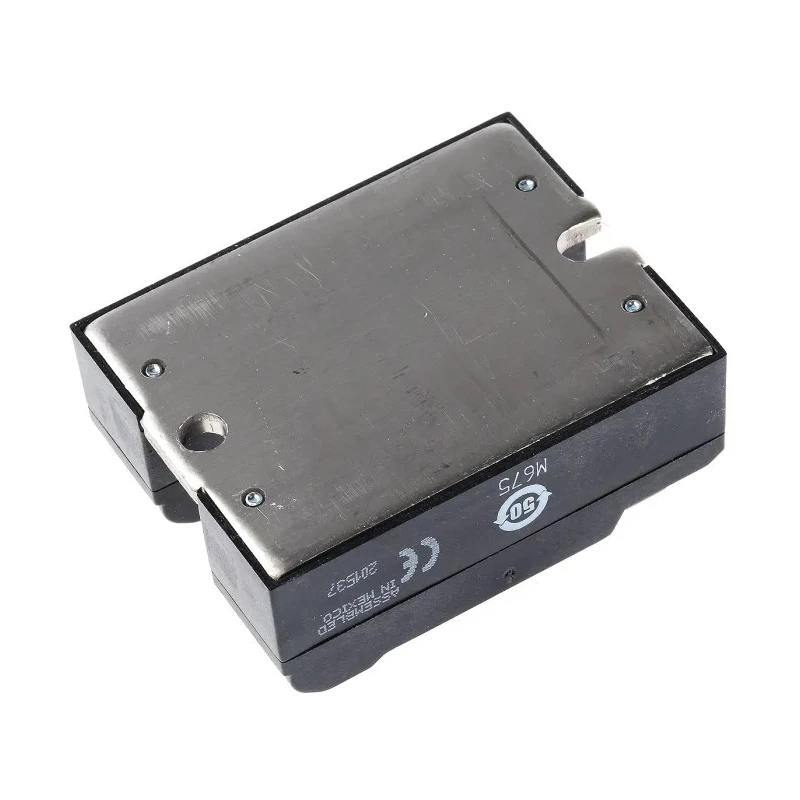

This solid state relay is designed for panel mounting with screw terminal connections that enable fast and secure wiring, ideal for integration into control panels used in manufacturing, HVAC, factory automation, and electrical distribution systems. Its operating temperature range from -40°C to 80°C makes it suitable for demanding industrial environments with wide temperature fluctuations.

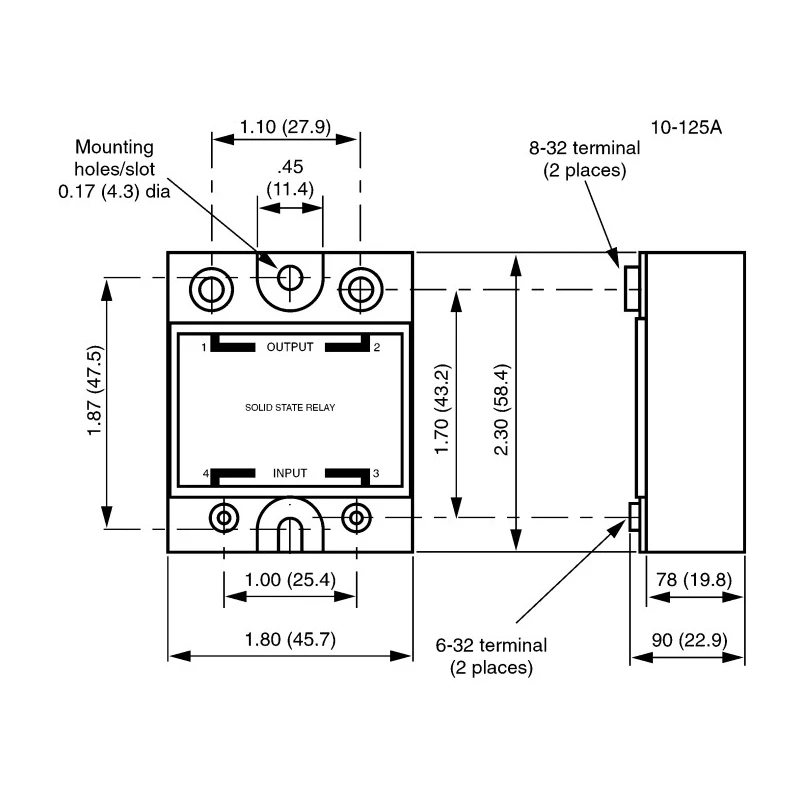

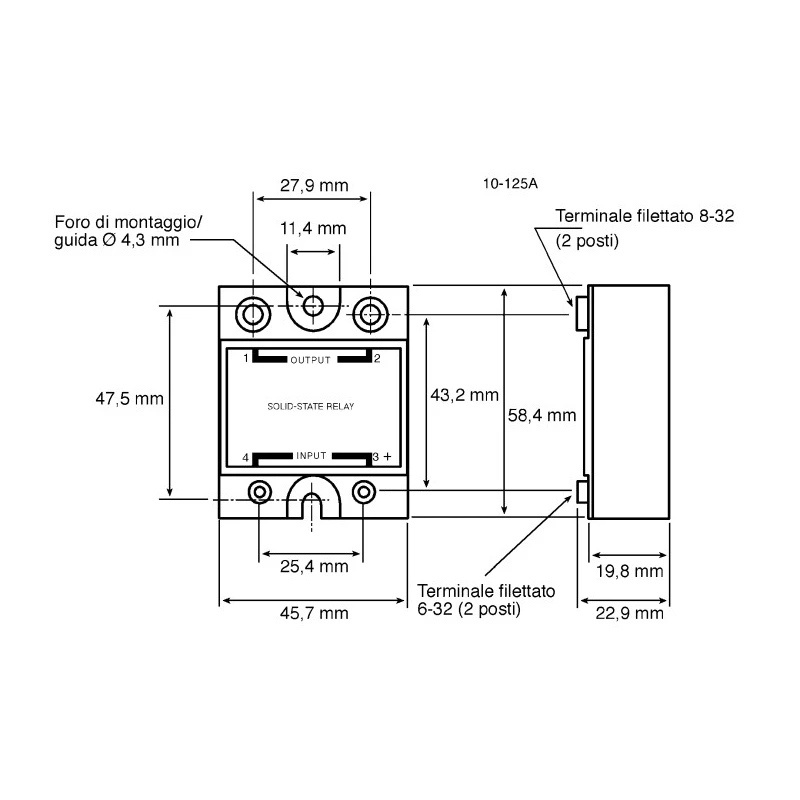

The compact dimensions of 58.4 mm length, 22.9 mm height, and 22.6 mm width allow easy installation in tight panel spaces. Additionally, the device features low off state leakage current of 10 mA, low capacitance of 8 pF, and utilizes an SCR output type for durable switching performance. Compliance with industry standards including UR, RoHS, and CSA ensures quality and safety for reliable operation.

Its lightweight of 86.5 grams reduces mechanical load on mounting hardware, enhancing longevity and ease of installation. Typical applications include lighting control, data acquisition systems, medical technology, and other industrial automation use cases where silent, reliable switching is critical.

Supports maximum load current of 75 amperes for heavy-duty applications. Operates with load voltage up to 280 Vrms with zero cross switching for reduced noise. Control voltage range spans 3 V DC to 32 V for flexible input control.

Panel mounting ensures secure and compact installation in industrial panels. Wide operating temperature range from -40°C to 80°C for harsh environments. Screw terminals deliver secure and quick electrical connections. Compact form factor with dimensions suitable for panel spaces.

Low off state leakage current and capacitance improve efficiency. Compliant with UR, RoHS, and CSA standards for safety and quality. Lightweight design minimizes mechanical strain on installation points. Explore EnvMart’s comprehensive range of Solid State Relays and industrial automation components to enhance your electrical control systems.
