Texas Instruments Operational Amplifier 2.2 MHz, 14-Pin SOIC, 4 Channels, 8V TLC2274ID

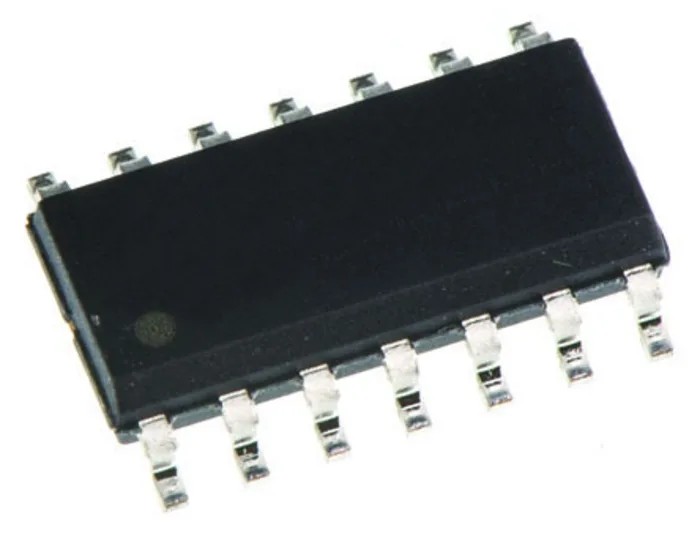

Texas Instruments TLC2274ID is an advanced quad operational amplifier designed for a broad range of electronic applications requiring high precision and stability. Rated at a gain bandwidth product of 2.2 MHz and operating from 5V to 8V supply voltage, it ensures robust and reliable performance in demanding environments. The device comes housed in a 14-pin SOIC package optimized for surface mount technology.

This operational amplifier features extremely low input bias currents of 800 picoamperes and an input offset voltage of just 3 millivolts, which makes it ideal for precision signal conditioning in industrial, laboratory, and instrumentation applications. Its fast slew rate of 3.6V/μs enables it to handle high-speed signals effectively.

Designed to withstand a wide operating temperature range from -40°C up to 125°C, it is suited for automotive and harsh environmental uses, supported by its AEC-Q100 automotive standard compliance. The compact package dimensions of 8.65mm length, 3.91mm width, and 1.58mm height allow for space-efficient circuit board designs.

The TLC2274ID operational amplifier supports an output current of up to 50 mA per channel, enabling it to drive various loads reliably. Its LinCMOS architecture contributes to low power consumption and high input impedance.

Low input bias current of 800 pA for precision measurements. Gain bandwidth product of 2.2 MHz suitable for a wide frequency range. Fast slew rate of 3.6 V/μs handles rapid signal changes. AEC-Q100 automotive standard ensures reliability in automotive environments.

Compact 14-Pin SOIC surface mount package for easy PCB assembly. Wide operating temperature range from -40°C to 125°C. Low input offset voltage of 3 mV enhances accuracy. Output current capability of 50 mA per channel. Voltage supply range from 5V to 8V for flexible power options.

This Texas Instruments operational amplifier is widely used in electronic circuit designs including instrumentation amplifiers, industrial control systems, audio applications, and automotive electronics. It enables efficient and accurate analog signal processing with minimal distortion.
