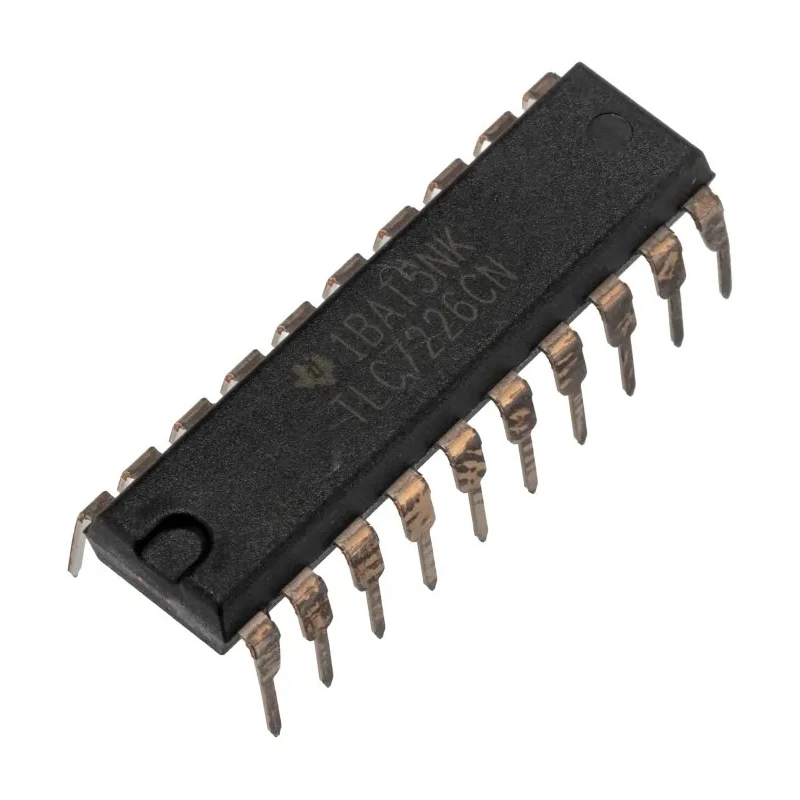

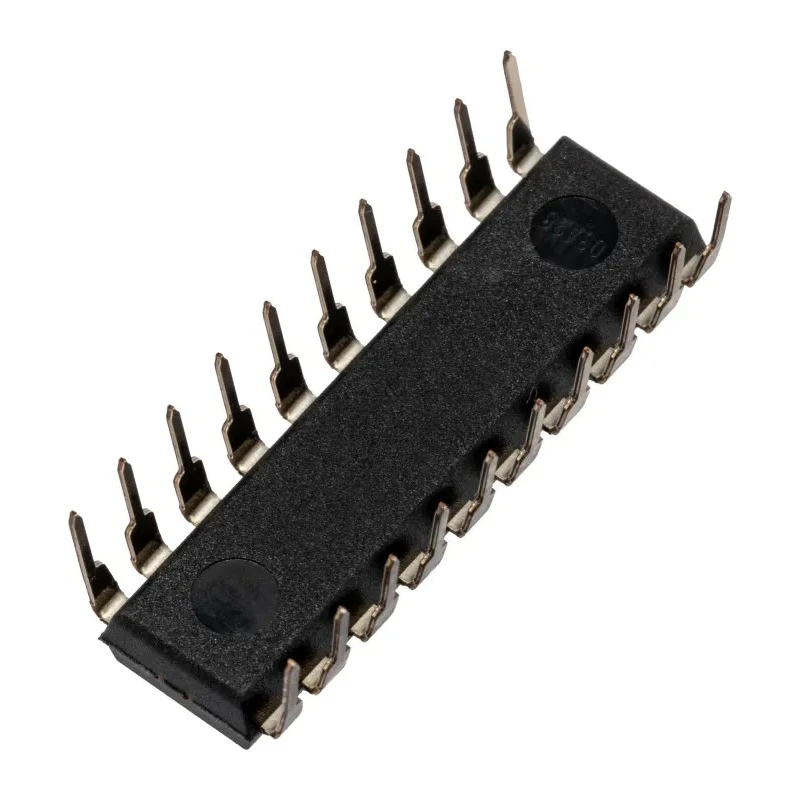

Texas Instruments Digital to Analogue Converter 8 bit 4-Channel Parallel Interface 143 ksps Sampling Rate 20-Pin TLC7226CN

Texas Instruments TLC7226CN is a high-quality digital to analogue converter (DAC) designed to provide precise, real-time analogue output signals from digital inputs. This 8-bit DAC features 4 separate channels with a parallel data interface, allowing simultaneous multi-channel output which is crucial in advanced electronics and industrial control setups.

The DAC uses a resistor string R-2R architecture to ensure signal accuracy and stability. It supports a sampling rate of 143 ksps, offering efficient data conversion and processing speed for applications requiring rapid analogue signal updates.

With a 20-pin PDIP package and through-hole mount type, this device is easy to integrate into printed circuit boards and experimental prototype boards. Its compact dimensions (26.9mm length, 6.6mm width, and 5.08mm height) make it suitable for space-constrained electronic designs.

Designed for supply voltages from 15V to 24V and operation temperatures between 0°C and 70°C, the TLC7226CN is engineered for dependable performance in various industrial and laboratory environments. The device’s 20μs settling time enables rapid adjustment of output voltages, supporting demanding applications such as instrumentation, signal conditioning, and automation control.

The output type is analogue voltage, with an external voltage reference required for precise calibration. This makes the converter adaptable to different voltage ranges and reference standards, enhancing its versatility across electronic systems.

This DAC provides 8-bit resolution from digital input to analogue output. It supports 4 parallel channels for concurrent analogue output signals. Utilizes resistor string R-2R architecture for high accuracy conversion. Operates within supply voltage range of 15V to 24V.

Package type is 20-Pin PDIP, suitable for through-hole PCB mounting. Sampling rate is 143 ksps for fast data processing. Operating temperature range supports typical industrial environments. Compact package dimensions allow flexible PCB design.

Offers a 20μs settling time for rapid output responsiveness. Requires external voltage reference for calibration and versatility.

This product is ideal for industrial electronics, laboratory instruments, measurement systems, and automation controls requiring reliable and accurate DAC solutions. It complements applications in manufacturing, testing, instrumentation, and embedded device projects requiring multi-channel analogue outputs.
