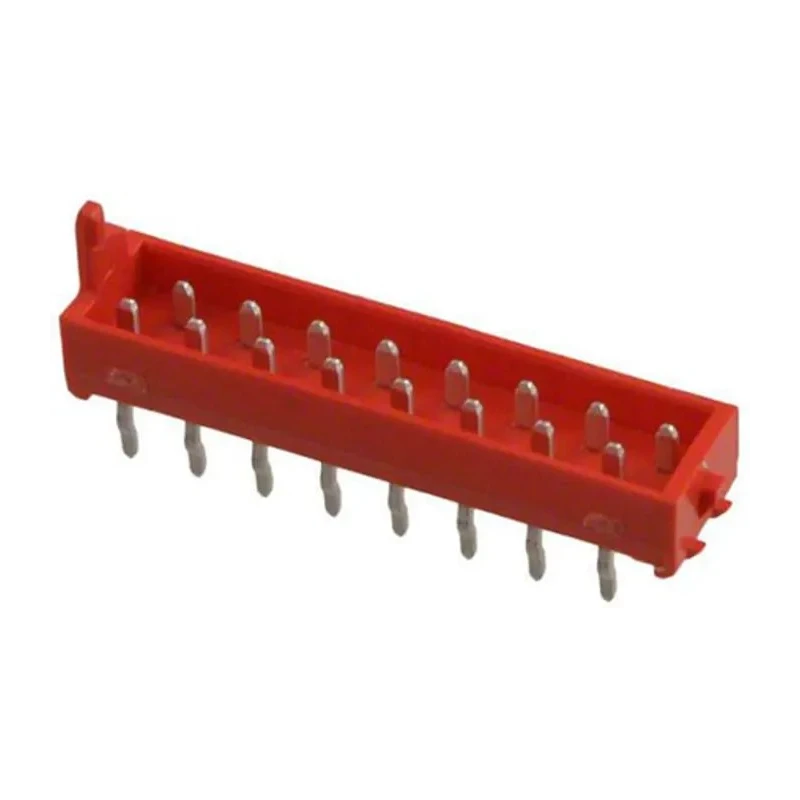

TE Connectivity Micro-MaTch Series PCB Header 16 Contact, 1.27 mm Pitch, 2 Row, Shrouded, Straight Through Hole 8-215464-6

TE Connectivity 8-215464-6 Micro-MaTch Series PCB Header is a high-quality male-on-board connector designed for board-to-board interconnections. Featuring a compact 1.27 mm pitch and 16 contacts arranged in 2 rows, this shrouded, straight through hole header provides a reliable connection for electronic assemblies.

The housing is constructed with fibreglass reinforced polybutylene terephthalate for exceptional mechanical strength and thermal stability.

The phosphor bronze contacts are fully tin plated, resisting fretting corrosion and forming gas-tight connections enhanced by a contact spring system that absorbs vibration and thermal expansion.

The kinked leg design ensures secure solder retention to the PCB, while polarizing pins guarantee accurate connector alignment. This header is rated for 1.5 amperes current and withstands temperatures between -40°C and 105°C, making it suitable for demanding industrial environments.

Typical applications include production and material handling equipment, robotics, motors, control units, central heating units, car radios, navigation systems, dashboards, base stations, set top boxes, and audio equipment.

Compact Micro-MaTch series for space-saving PCB connections. 16 male contacts with phosphor bronze material for durability. 1.27 mm pitch with 2 rows in a straight through hole mount. Shrouded housing made of fibreglass reinforced polybutylene terephthalate.

Fully tin-plated contacts to prevent corrosion and ensure conductivity. Kinked legs design for secure PCB retention and polarizing pins for precise alignment. Operating temperature range from -40°C to 105°C. Rated current of 1.5A and voltage up to 230V for reliable performance.

Ideal for board-to-board connections in robotics, control units, and audio equipment. For more PCB Headers and connectors, browse the Electronics & Electricals > Connectors category on EnvMart.
