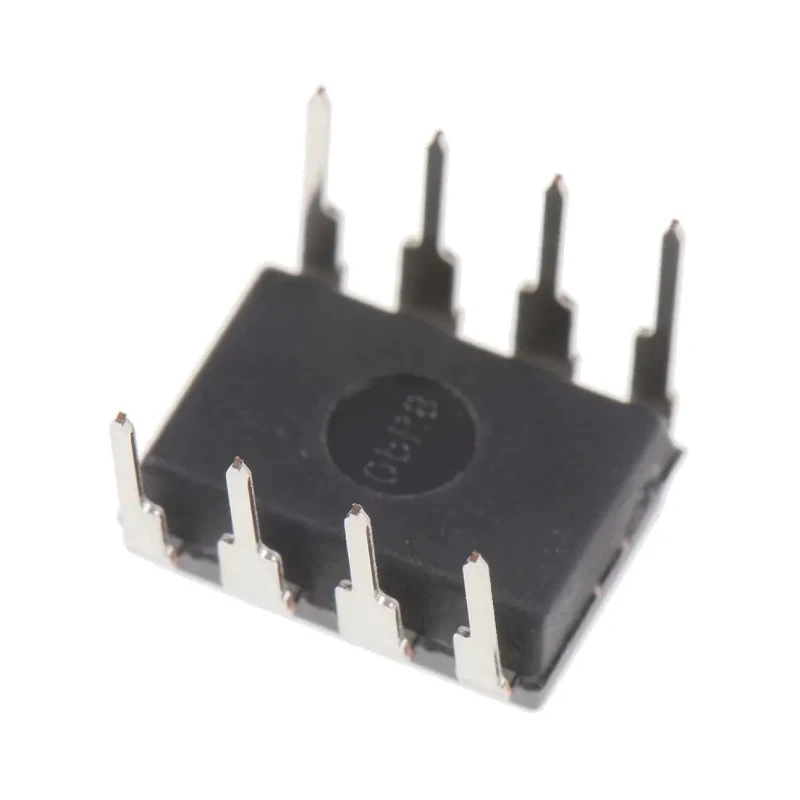

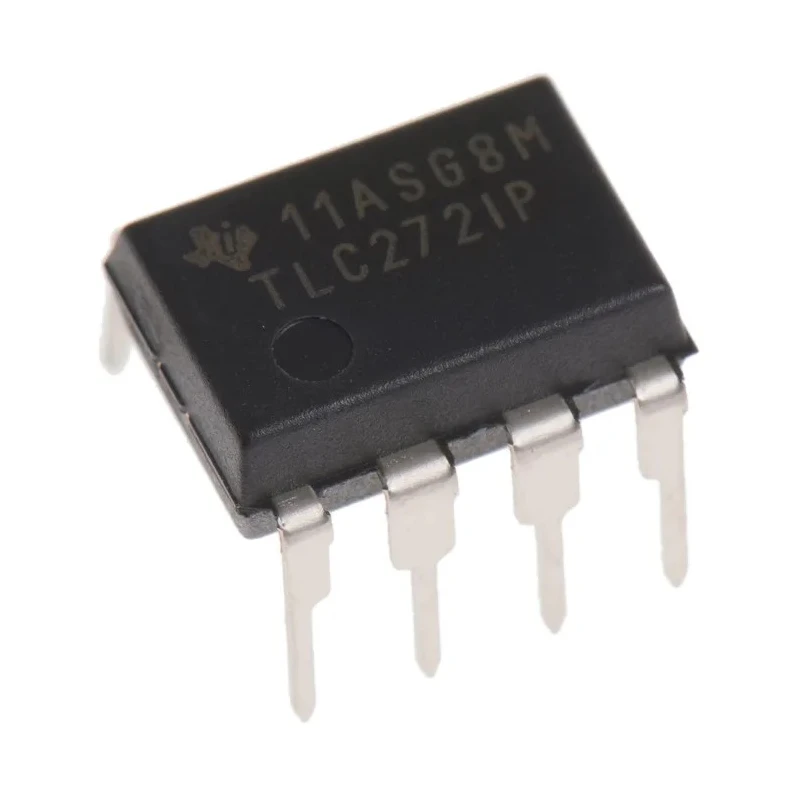

Texas Instruments Operational Amplifier 1.7 MHz 8-Pin 16V PDIP TLC272IP

Texas Instruments TLC272IP is a precision linear CMOS operational amplifier designed for accurate amplification in electronic circuits. This dual-channel amplifier features a 1.7 MHz gain bandwidth product allowing for stable and precise signal processing in various applications.

The device operates from a minimum supply voltage of 5V up to a maximum of 16V, making it suitable for a wide range of power supply conditions in electronic systems.

With an input bias current of 35 pA and a low input offset current of 15 pA, it delivers high input accuracy essential for instrumentation and signal conditioning tasks. The input offset voltage of 13 mV and a slew rate of 3.6 V/μs provide responsive and precise output signal control.

Encased in an 8-pin PDIP through-hole package, the TLC272IP simplifies assembly and offers durable mounting options for industrial and laboratory electronics. The compact physical size (9.81 mm length, 6.35 mm width, and 4.57 mm height) helps in fitting the device in constrained PCB layouts.

Its output current capability of 30 mA supports interfacing with medium power loads in analog circuits. The wide operating temperature range of -40°C to 85°C ensures stable performance in various environmental conditions, including automotive and industrial applications.

This operational amplifier is commonly used in instrumentation, signal processing, control systems, and industrial automation. It is ideal for engineers and designers seeking reliable analog signal amplification with consistent performance.

Features a gain bandwidth product of 1.7 MHz suitable for precision applications. Operates with a minimum supply voltage of 5V and maximum of 16V. Includes low input bias current of 35 pA and input offset current of 15 pA for high accuracy.

Input offset voltage is 13 mV with a slew rate of 3.6 V/μs ensuring fast response. Output current capability of 30 mA supports medium load driving needs. Wide operating temperature range from -40°C to 85°C ensures reliability in industrial environments.

Through hole mounting type with a PDIP package enhances robustness and ease of PCB assembly. Compact dimensions: 9.81 mm length, 6.35 mm width, and 4.57 mm height. Explore more electronic components and Operational Amplifiers at EnvMart for your industrial and laboratory projects.
