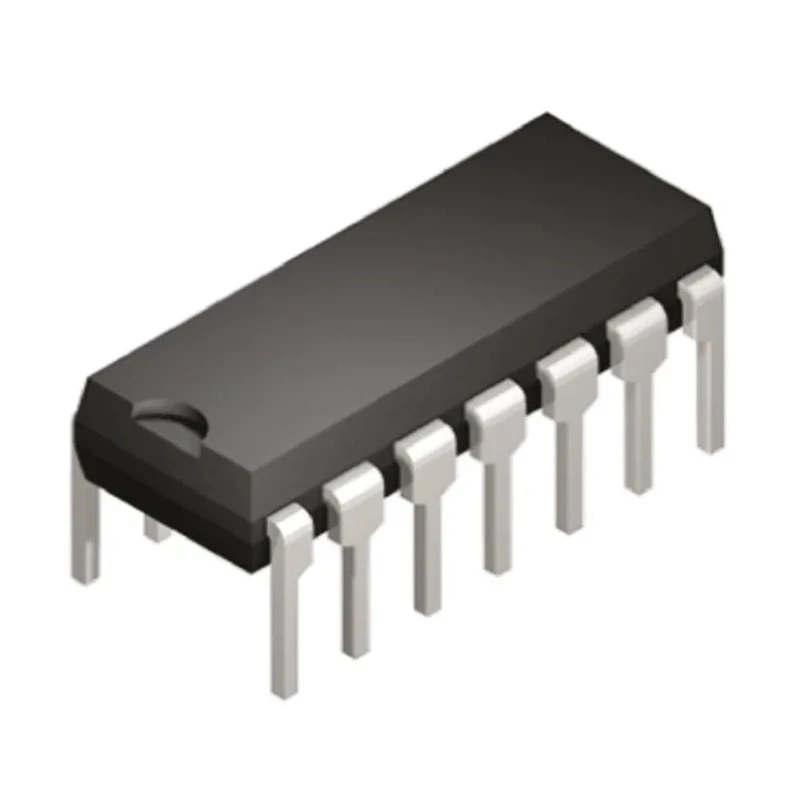

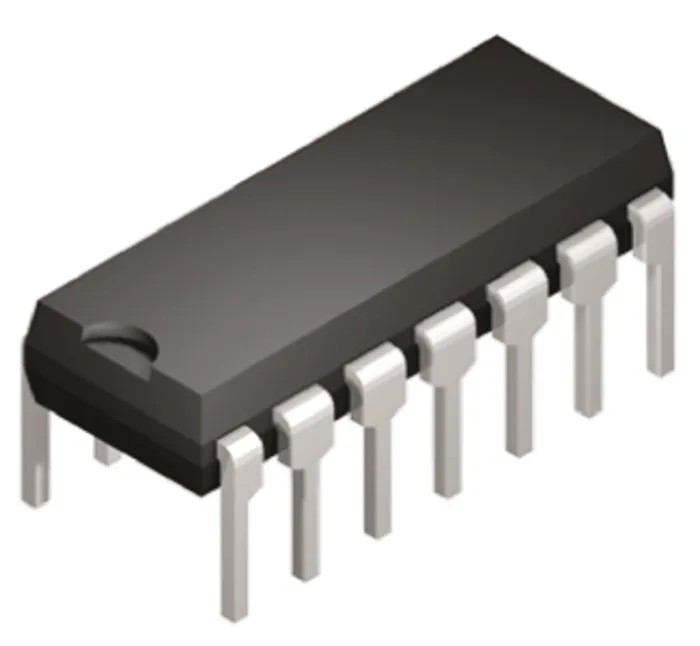

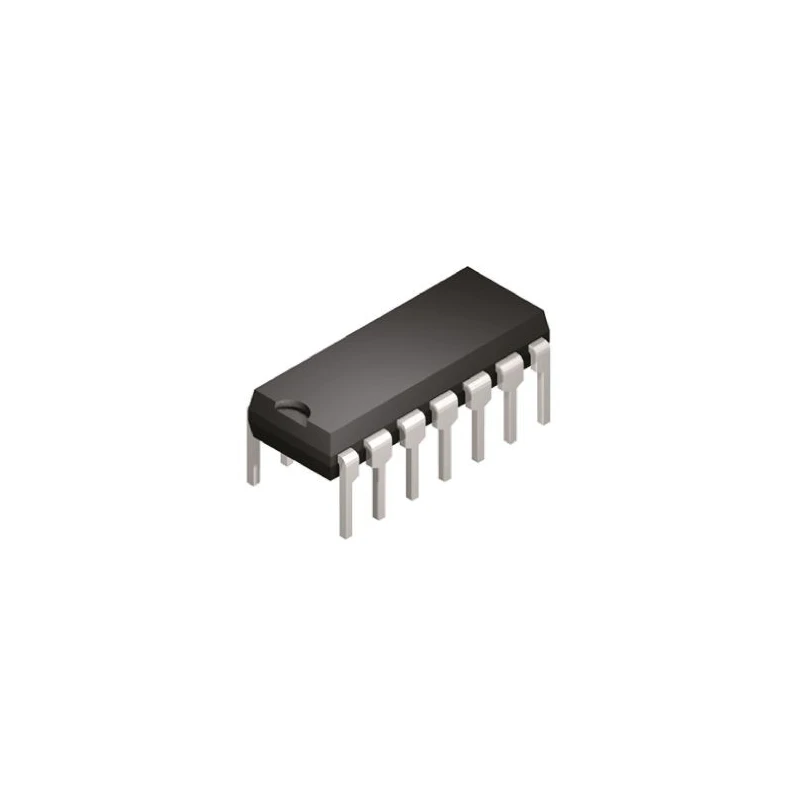

Texas Instruments Operational Amplifier 2.2 MHz Gain Bandwidth, 14-Pin PDIP Through Hole TLC2274IN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | TLC2274IN |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | TLC2274 |
| Output Current | 50mA |
| Maximum Operating Temperature | 125°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 8V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 2.2MHz |
| Input Bias Current | 800 pA |
| Vos - Input Offset Voltage | 3 mV |
| Slew Rate | 3.6V/μs |
Key Features
- The device operates with a supply voltage range from 5V to 8V.
- Input bias current is low at 800 pA, ensuring minimal input leakage.
- It has a maximum operating temperature rating of 125°C for industrial applications.
- The slew rate of 3.6 V/μs supports fast signal processing.
- Package dimensions are compact at 19.3 mm length, 6.35 mm width, and 4.57 mm height.
- Output current capability of 50 mA allows driving various loads.
- The device complies with RoHS standards and meets AEC-Q100 automotive standards.
- The input offset voltage is 3 mV, supporting precise analog performance.
Product Description
Texas Instruments TLC2274IN is a high-performance operational amplifier designed for industrial and electronic applications requiring reliable precision amplification. With a gain bandwidth product of 2.2 MHz and four channels in a 14-pin PDIP through hole package, this component is ideal for signal conditioning, filtering, and other analog signal processing tasks.
The operational amplifier supports a supply voltage range from 5 to 8 volts and features a low input bias current of 800 pA, making it suitable for sensitive input signals. Its slew rate of 3.6 V/μs enables rapid response times, enhancing overall circuit performance.
Designed to operate reliably from -40°C up to 125°C, the TLC2274IN can be deployed in harsh environmental conditions, including automotive applications meeting the AEC-Q100 standard. The device’s compact dimensions of 19.3 mm length, 6.35 mm width, and 4.57 mm height allow flexible integration into PCB designs.
The amplifier output current of 50 mA is capable of driving moderate loads effectively. The input offset voltage of 3 mV ensures minimal signal distortion, contributing to accurate analog operation. Compliance with RoHS standards ensures environmental safety.
The device offers low input bias currents ideal for high-impedance sensors. Four independent amplifiers allow multi-channel signal processing. Robust packaging in a PDIP format facilitates easy through-hole mounting. Long operating temperature range suits industrial and automotive environments.
High slew rate supports fast transient signals in dynamic circuits.
This Operational Amplifier is widely used in electronics manufacturing, laboratory equipment, instrumentation, and automotive electronics. Its precision and reliability make it suitable for analog circuit designs requiring stable and low-noise amplification.
Explore more Texas Instruments semiconductor amplifiers and components in the Electronics & Electricals category on EnvMart for a wide range of solutions optimized for technical and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 2.2 MHz.
It operates with a supply voltage range from 5V to 8V.
This operational amplifier can provide an output current of 50 mA.
The maximum operating temperature rating for the TLC2274IN is 125°C.
This operational amplifier features four independent channels.
The input offset voltage is 3 mV, which supports precise analog performance.
The input bias current is low at 800 pA, ensuring minimal input leakage.
The package dimensions are 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height.
The slew rate of the TLC2274IN is 3.6 V/μs, which supports fast signal processing.
It is designed for through-hole mounting in a PDIP package.
This operational amplifier complies with RoHS standards and meets AEC-Q100 automotive standards.
The minimum operating temperature for the TLC2274IN is -40°C.
