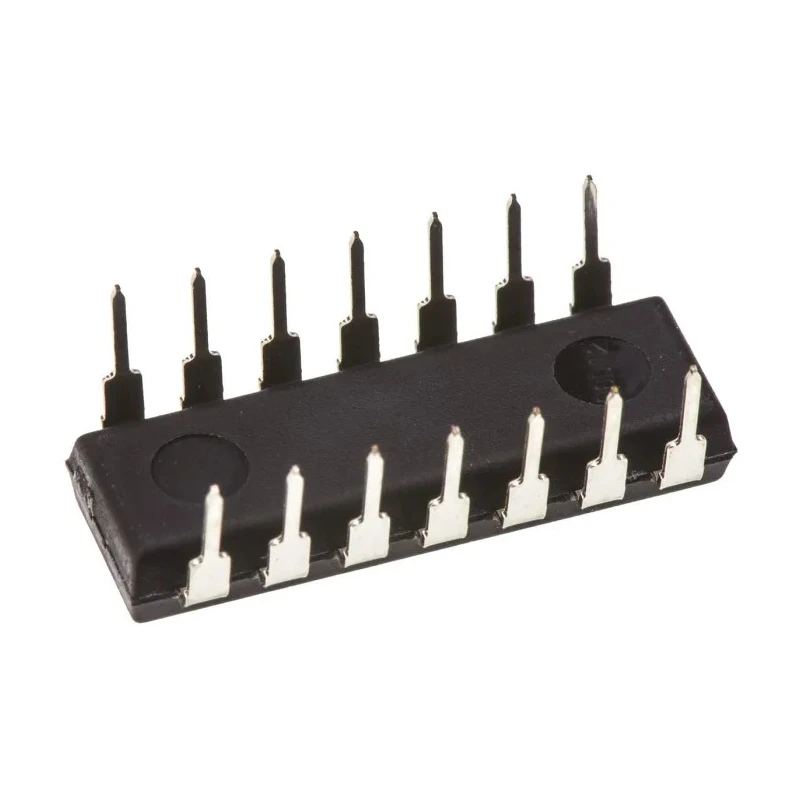

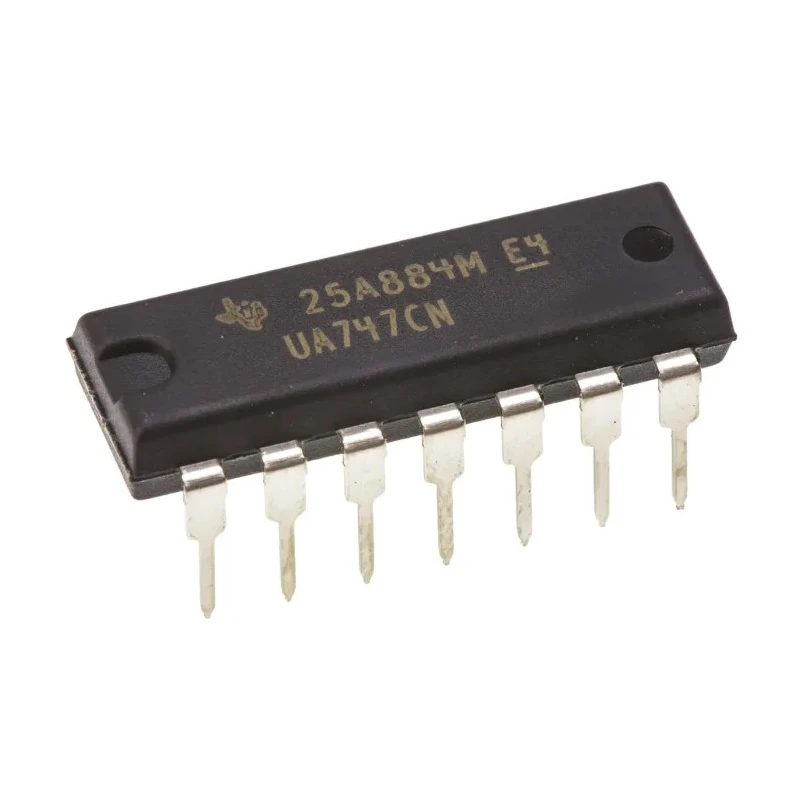

Texas Instruments Operational Amplifier 1 MHz 14-Pin 18V PDIP UA747CN

Texas Instruments UA747CN is a general-purpose operational amplifier designed for reliable performance in electronic circuits requiring precise analog adjustments and amplification.

This 1 MHz gain bandwidth product operational amplifier is housed in a 14-pin Plastic Dual In-line Package (PDIP), facilitating easy through hole mounting.

Operating within a supply voltage range of -18V to 18V, the UA747CN offers versatility for various electronic applications including instrumentation, signal conditioning, and analog computing.

The device features low input offset voltage of 7.5 mV and low input bias and offset currents, providing excellent precision in signal processing. With a slew rate of 0.5 V/μs and an operating temperature range from 0° to 70°C, this amplifier is suitable for standard industrial and laboratory environments.

The compact physical dimensions (19.3 mm length, 6.35 mm width, and 4.57 mm height) ensure the component fits into compact circuit designs without compromising performance. Operates on a dual supply voltage with through-hole PDIP mount.

Gain bandwidth product suitable for medium-speed analog applications. Stable temperature operations from 0 to 70 degrees Celsius. Features low noise and low input offset voltage for precision signals. Compact package size enables integration in limited-space circuit boards.

Compliant with standard industrial component requirements without additional approvals.
