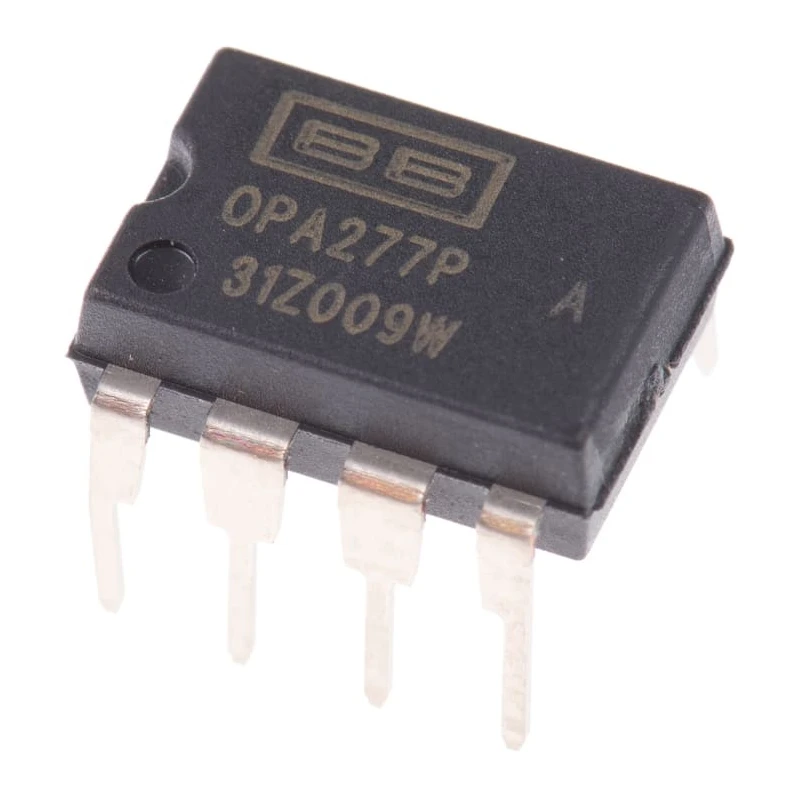

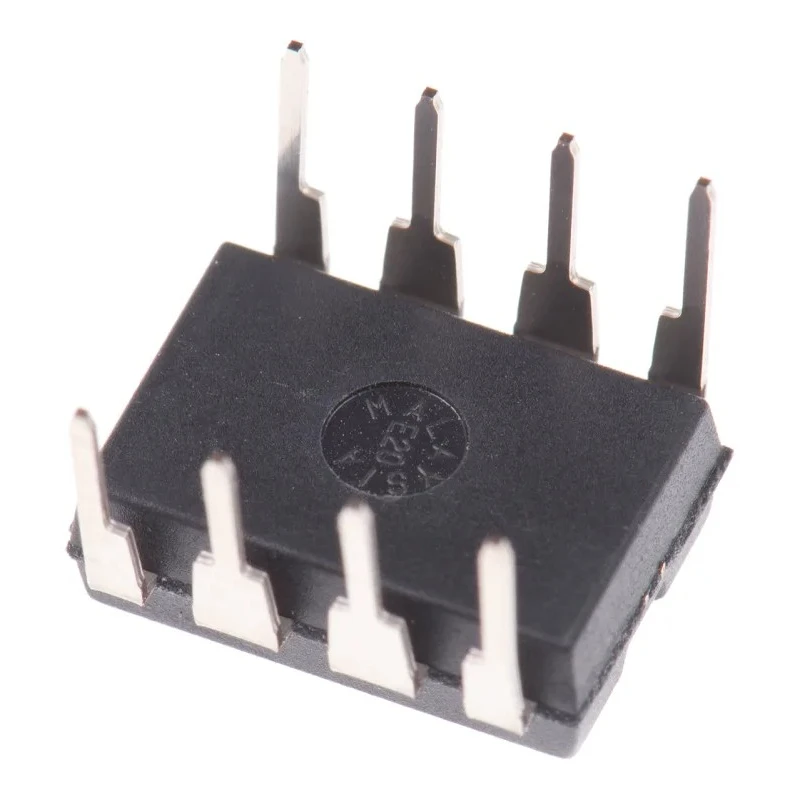

Texas Instruments Precision Operational Amplifier 1 MHz Gain Bandwidth, 8-Pin 18V PDIP OPA277PA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 9.81mm |
| Model | OPA277PA |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | OPA277 |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 2V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | ±4 nA |
| Slew Rate | 0.8V/μs |
Key Features
- Operates with supply voltage range of 2V to 18V.
- Features low input bias current of ±4 nA for precision signal amplification.
- Input offset voltage is low at ±50 μV to ensure high accuracy.
- Operating temperature range from -40°C to 85°C for versatile environmental use.
- Slew rate is 0.8 V/μs enabling efficient signal response.
- Package type is PDIP with through-hole mount for easy PCB integration.
- Ideal for instrumentation, transducers, precision integrators and active filters.
Product Description
Texas Instruments OPA277PA is a precision operational amplifier featuring a 1 MHz gain bandwidth product in an 8-pin PDIP package designed for through-hole mounting. Its broad supply voltage range from 2V to 18V and low input bias current of ±4 nA make it suitable for high accuracy analog signal processing tasks.
This device exhibits an input offset voltage of ±50 μV and a slew rate of 0.8 V/μs, delivering stable and accurate signal amplification across a temperature range of -40°C to 85°C. Its robust design and compact size (9.81 mm length, 6.35 mm width, and 4.57 mm height) support demanding applications in industrial instrumentation, strain gauge amplification, precision integrators, and active filtering circuits.
The OPA277PA is part of the OPA277 series from Texas Instruments, known for low parametric drift and high reliability. The package allows for easy insertion into printed circuit boards with through-hole technology.
Operates with supply voltage range of 2V to 18V. Features low input bias current of ±4 nA for precision signal amplification. Input offset voltage is low at ±50 μV ensuring accurate amplification. Wide operating temperature from -40°C to 85°C enables use in harsh environments.
Slew rate of 0.8 V/μs facilitates quick signal response in dynamic circuits. Compact 8-pin PDIP package suitable for through-hole mounting. Compact dimensions promote versatile PCB layout. Perfect for industrial, laboratory, and instrumentation applications requiring precision and stability.
Explore a wide selection of Texas Instruments Operational Amplifiers and other semiconductor components in the Electronics & Electricals category at EnvMart for your precise amplification needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The OPA277PA features a gain bandwidth product of 1 MHz, making it suitable for various precision amplification tasks.
It operates within a supply voltage range of 2V to 18V, allowing flexibility in different circuit designs.
The input bias current of this model is ±4 nA, which contributes to its precision in signal amplification.
The input offset voltage is low at ±50 μV, ensuring high accuracy in signal processing applications.
It has an operating temperature range from -40°C to 85°C, making it suitable for use in various environmental conditions.
The slew rate is 0.8 V/μs, which enables efficient signal response in dynamic circuits.
This operational amplifier is packaged in an 8-pin PDIP format, designed for through-hole mounting on PCBs.
The dimensions are 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height, facilitating versatile PCB layout.
This model features a single channel configuration, suitable for various amplification applications.
It is ideal for instrumentation, transducers, precision integrators, and active filters, supporting high accuracy in these tasks.
The country of origin for this operational amplifier is India.
The OPA277PA is part of the OPA277 series from Texas Instruments, known for low parametric drift and high reliability.
