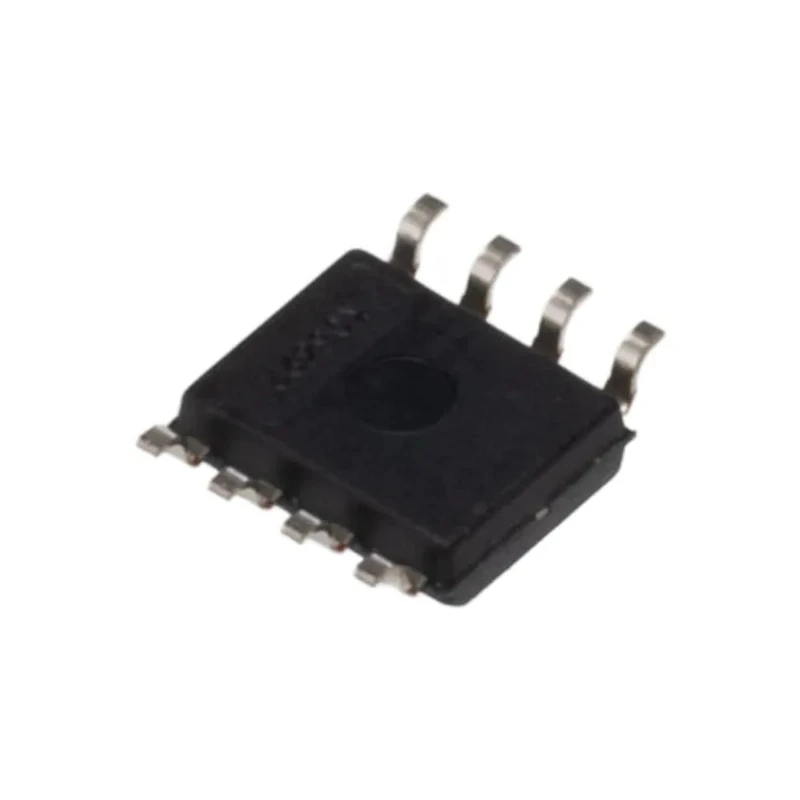

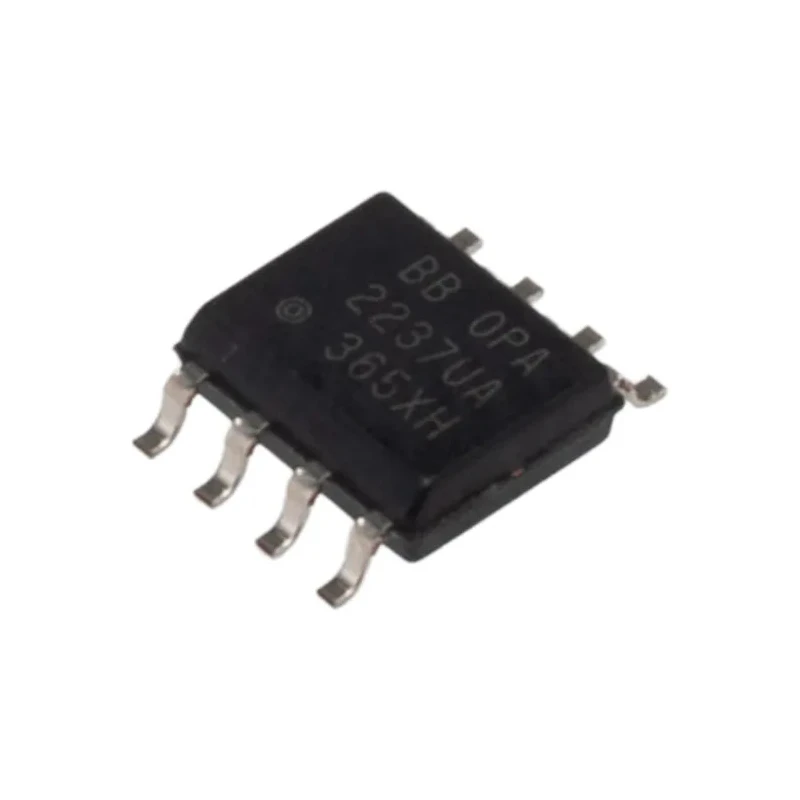

Texas Instruments Operational Amplifier 1.4 MHz Gain Bandwidth, 8-Pin SOIC Surface Mount OPA2237UA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 4.9mm |
| Model | OPA2237UA |
| Width | 3.91mm |
| Mount Type | Surface |
| Series | OPA2237 |
| Output Current | 1.5mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Pin Count | 8 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 1.4MHz |
| Input Bias Current | -40 nA |
| Slew Rate | 0.5V/μs |
| Input Offset Current | ±10 nA |
Key Features
- This operational amplifier features a gain bandwidth product of 1.4 MHz for reliable signal amplification.
- It operates within a supply voltage range of 5V to 18V ensuring versatility.
- The device has a low input bias current of -40 nA for accurate analog signal processing.
- Designed with a surface mount SOIC package having 8 pins, suitable for PCB integration.
- Temperature range from -40°C to 85°C allows operation in varied industrial environments.
- Includes a slew rate of 0.5 V/µs providing stable response to input changes.
- Output current capability of 1.5 mA supports moderate load driving.
- Compact physical dimensions measure 4.9 mm length, 3.91 mm width, and 1.58 mm height.
Product Description
Texas Instruments OPA2237UA is a high-performance operational amplifier designed for accurate and stable analog signal amplification in various electronics applications. This device features a gain bandwidth product of 1.4 MHz, making it suitable for moderate frequency amplification tasks requiring precision.
Packaged in an 8-pin SOIC surface mount format, it assures easy PCB assembly and compact design integration suitable for modern electronic circuits. It supports a wide supply voltage range from 5V to 18V, allowing for flexible power configurations and operational environments.
The OPA2237UA can operate reliably in temperatures ranging from -40°C to 85°C, which enables use in both industrial and consumer electronic devices.
Notable electrical characteristics include a low input bias current of -40 nA, a slew rate of 0.5 V/µs, output current of 1.5 mA, and precise input offset current and voltage specifications, all contributing to signal integrity and noise reduction.
Physical dimensions ensure minimal footprint on the PCB: length 4.9 mm, width 3.91 mm, height 1.58 mm.
This dual-channel operational amplifier is ideal for applications in industrial instrumentation, measurement systems, audio processing, and other electronics where stable amplification is critical.
This product fits well in electronics manufacturing, laboratory instrumentation, and embedded system designs. Surface mount SOIC package enhances PCB layout efficiency in industrial designs. Wide operating temperature supports usage in harsh environmental conditions for industrial control systems.
Low offset and bias current optimize precision in sensor interface and analog signal conditioning circuits. Gain bandwidth product of 1.4 MHz suits various analog signal amplification requirements. Explore the full range of Operational Amplifiers and components in the Electronics & Electricals category at EnvMart for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1.4 MHz, suitable for moderate frequency amplification tasks.
It operates within a supply voltage range of 5V to 18V, allowing for flexible power configurations.
The input bias current is -40 nA, which contributes to accurate analog signal processing.
It has an output current capability of 1.5 mA, supporting moderate load driving.
The dimensions are 4.9 mm in length, 3.91 mm in width, and 1.58 mm in height, making it compact for PCB integration.
This operational amplifier operates reliably in temperatures ranging from -40°C to 85°C, suitable for various environments.
The slew rate is 0.5 V/µs, providing stable response to input changes.
This model is a dual-channel operational amplifier, designed for various applications.
It comes in an 8-pin SOIC surface mount package, suitable for easy PCB assembly.
This operational amplifier is part of the OPA2237 series from Texas Instruments.
The input offset current is ±10 nA, which helps in maintaining signal integrity.
The country of origin for this operational amplifier is India.
