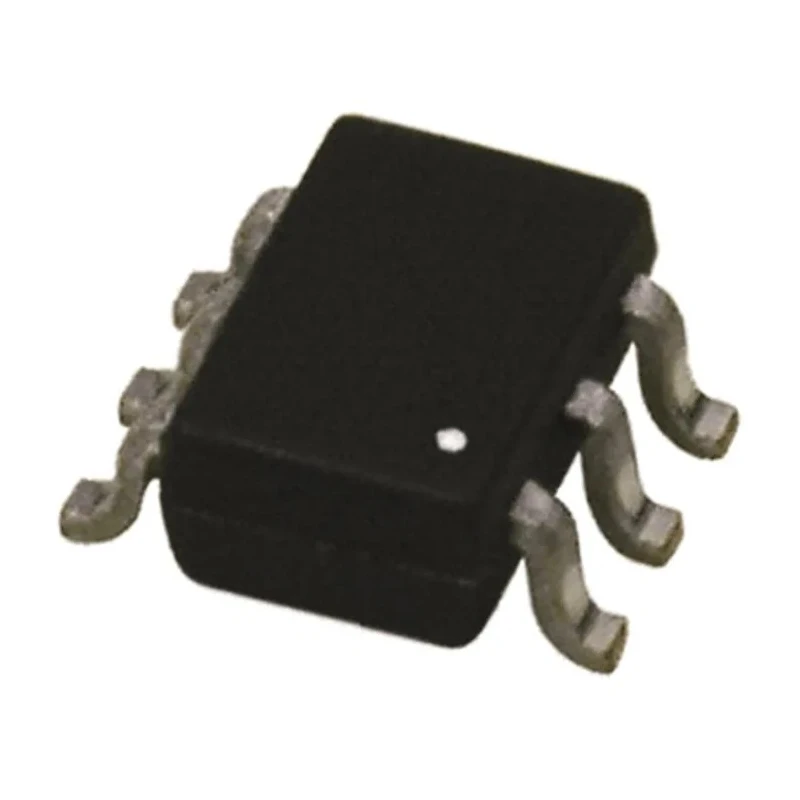

DiodesZetex 1 2-Input Multifunction Logic Gate, 6-Pin SOT-363, Surface Mount, CMOS Input, 1.65 to 5.5 V Supply 74LVC1G57DW-7

The DiodesZetex 74LVC1G57DW-7 is a highly reliable 1 2-input multifunction logic gate designed for surface mount applications. Packaged in a compact 6-Pin SOT-363 form factor, it is ideal for use in advanced electronic assemblies where space savings and performance are crucial.

This logic gate features a CMOS input type with input compatibility for LVTTL and TTL signals, and outputs in LVCMOS format, making it versatile for various logic family interfacing. It operates within a supply voltage range of 1.65 to 5.5 V, allowing integration in low voltage systems while supporting robust operation up to 125°C operating temperature.

The device provides fast switching capabilities with a maximum propagation delay time of 6.4 ns at the specified load capacitance, suitable for high-speed digital circuits. The push-pull output stage offers symmetrical current drive capability, ensuring strong logical signal output with maximum currents of +32 mA and -32 mA.

Its surface mount design with a 2.2 mm length and 1 mm height ensures easy PCB layout integration with minimal footprint. Though lacking specific industry standards or automotive certifications, this logic gate is well suited for industrial, consumer electronics, and general-purpose digital control applications.

It is an effective choice for upgrading or designing new digital systems requiring multifunction Logic Gate integration. Designed as a single gate multifunction logic device suitable for compact circuit integration. Operates with a maximum propagation delay time of 6.4 nanoseconds, supporting high-speed logic applications.

Surface mount device with a small 2.2 mm length and 1 mm height, ideal for dense PCB layouts. Supports input LVTTL/TTL compatibility with LVCMOS output for flexible interfacing. Wide temperature range from -40°C to 125°C, ensuring reliable performance under industrial conditions.

Maximum supply voltage of 5.5 V with a minimum operating voltage of 1.65 V for low voltage applications. Push-pull output type supporting maximum output currents of +32 mA and -32 mA for robust signal driving. Explore more semiconductor components and logic ICs at EnvMart to meet your circuit design and manufacturing requirements.
