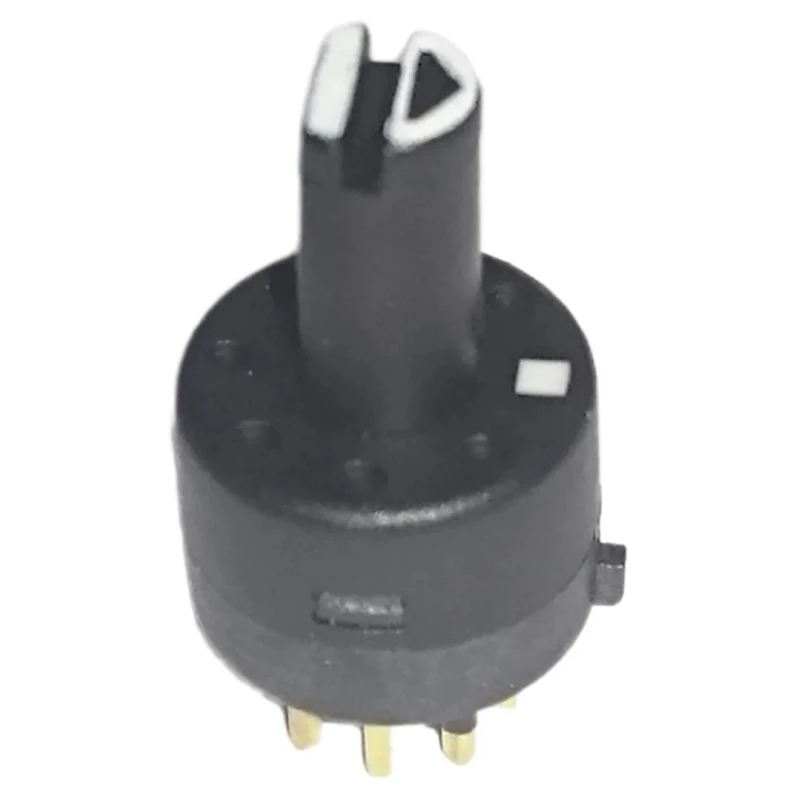

Lorlin MT SP6T Rotary Switch 500mA 500V AC 24V DC PCB Terminal Black Actuator
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 9.2mm |
| Brand | Lorlin |
| Height | 14.2mm |
| Model | SP6T |
| Depth | 9.2mm |
| Width | 9.2mm |
| Mount Type | PCB |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Series | MT |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | SP6T |
| Switch Configuration | Off |
| Minimum Operating Temperature | -30°C |
| Terminal type | PCB Terminal |
| Maximum dc Voltage | 24V dc |
| Number of Poles | 8 |
| Standards/Approvals | RoHS |
| Switch Operation | Moulded 9.2mm diameter TO-5 Rotary Switch |
| Actuator Colour | Black |
| Switch Contact Current | 500mA |
| Mechanical Life | 5000Cycles |
| Maximum AC Voltage | 500V ac |
| Angle of Throw | 225 ° |
| Footprint/pin spacing | 2.54mm between pins and 5.08mm between rows |
Key Features
- This rotary switch features a 9.2mm diameter and 14.2mm height with fibreglass reinforced polybutylene terephthalate housing.
- It has an 8-pole, single pole 6-throw (SP6T) configuration with an off switch position.
- The switch supports a maximum AC voltage of 500V and DC voltage of 24V.
- Operating temperature ranges from -30°C to +65°C, suitable for various electronic applications.
- The mechanism offers a mechanical life of over 5000 cycles with a 225° angle of throw and black actuator color.
- The switch terminal type is PCB terminal with a footprint of 2.54mm between pins and 5.08mm between rows.
- Lorlin MT rotary switches are RoHS compliant and ideal for isolation and control in electrical and automation systems.
Product Description
Lorlin MTL-21-60 Rotary Switch is a subminiature TO-5 rotary switch with a moulded 9.2mm diameter housing designed for PCB terminal mounting. It offers a high current rating of 500mA at 24V DC in a compact format ideal for precision electrical switching and isolating applications.
The switch features an 8-pole configuration with single pole, six throw (SP6T) contact arrangement and an off position. It operates with positive action at a 225° angle of throw and includes a durable black actuator. The housing is made from fibreglass reinforced polybutylene terephthalate, providing robust mechanical strength and electrical insulation.
Rated for a maximum AC voltage of 500V and DC voltage of 24V, this rotary switch withstands operating temperatures from -30°C to +65°C, making it suitable for industrial, laboratory, automation, and manufacturing applications. The mechanical life exceeds 5000 cycles, ensuring reliable performance over extended use.
The footprint features standard 2.54mm pin spacing between pins and 5.08mm spacing between rows, compatible with typical PCB layouts. This RoHS compliant switch is not illuminated and provides a reliable solution for electrical control, signal routing, and switching tasks.
Compact design fits in confined spaces with 9.2mm diameter and 14.2mm height. Robust housing ensures durability in harsh environments. Positive mechanical action for dependable switching. Suitable for automation and electronic equipment applications.
High voltage and current ratings for versatile use. Compliant with RoHS standards for environmental safety. Easy PCB mounting with standard footprint spacing.
This Lorlin rotary switch MTL-21-60 model is perfect for electrical, automation, and industrial equipment manufacturers, engineers, and technicians requiring precision PCB rotary switches.
Explore more rotary switches and electrical components in the Electronics & Electricals > Switches & Sockets > Rotary Switch category on EnvMart to find compatible products and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rotary switch supports a maximum AC voltage of 500V and a maximum DC voltage of 24V.
This model has a mechanical life that exceeds 5000 cycles, ensuring reliable performance over extended use.
It features an 8-pole, single pole 6-throw (SP6T) configuration with an off switch position.
The switch has a diameter of 9.2mm and a height of 14.2mm, making it suitable for compact applications.
The operating temperature ranges from -30°C to +65°C, allowing it to function in various environments.
It uses a PCB terminal type with a pin spacing of 2.54mm between pins and 5.08mm between rows.
The housing is made from fibreglass reinforced polybutylene terephthalate, providing mechanical strength and electrical insulation.
The actuator of this model is black in color.
Yes, the Lorlin MT SP6T rotary switch is RoHS compliant, adhering to environmental safety standards.
The switch operates with a positive action at a 225° angle of throw.
This model is suitable for various electronic applications, including industrial, laboratory, automation, and manufacturing uses.
The series designation for this rotary switch is MT.
