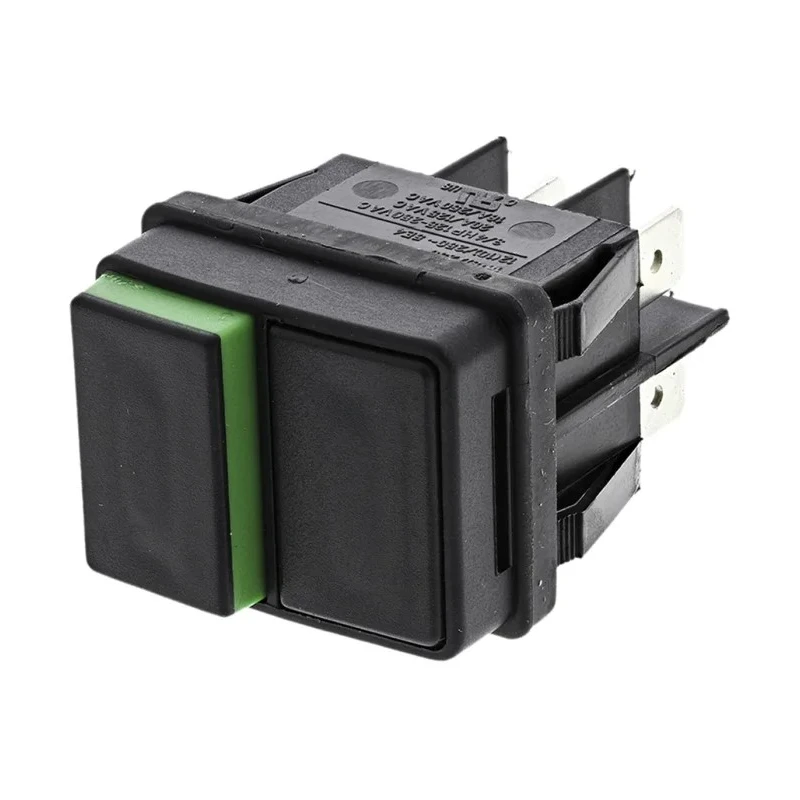

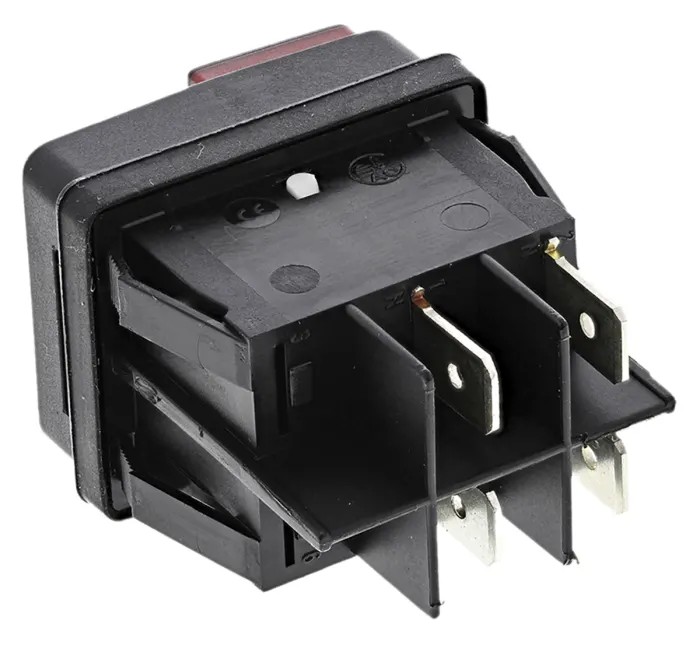

RS PRO Push Button Switch Latching Panel Mount DPDT 30.8 mm Cutout IP40 1.5 kV AC 16A 120°C 432-0623

RS PRO 432-0623 Push Button Switch is a latching panel mount switch designed with a 30.8 mm panel cutout, DPDT contact configuration, an IP40 protection rating, and a contact AC voltage rating of 1.5 kV. This electrical switch is engineered for industrial, automation, and electrical control applications requiring robust switching performance.

The latching operation enables the switch to maintain its contact position (on or off) without the need for continuous pressure, ideal for control panels and machinery interfaces. Its button actuator style promotes easy manual operation.

Constructed with a 16 Ampere resistive and 8 Ampere inductive current rating at 250 VAC, it is suitable for heavy electrical loads. It features a tab terminal type to facilitate quick and secure electrical connections. The switch operates reliably at maximum temperatures up to 120°C, making it suitable for demanding environments.

The product includes two colour pushbuttons which provide clear visual indication of switching state and reduce operator error. The casing and contacts are protected to IP40 standards against liquid and dust ingress without the need for additional covers. The product complies with UL and CSA standards, ensuring safety and product trust.

Manufactured in Italy, the 432-0623 switch blends quality and reliability, making it an effective choice for electrical panel mounting in industrial, workshop, manufacturing, and automation sectors.

Switch operation is latching, providing reliable on-off control. Panel cutout size is 30.8 mm for precise mounting. Panel mount type with IP40 rating guards against dust and liquids. DPDT contact configuration for versatile double pole double throw switching.

Tab terminal type ensures secure connections. Contact AC voltage rating is 1.5 kV for high voltage applications. Maximum operating temperature of 120°C assures performance in harsh environments. Standards approved by UL and CSA.

Switch contact current is 16A resistive, 8A inductive at 250 VAC. Two colour pushbutton for clear operational status indication. Explore a wide selection of Push Button Switches and components at EnvMart for your industrial and electrical panel needs.
