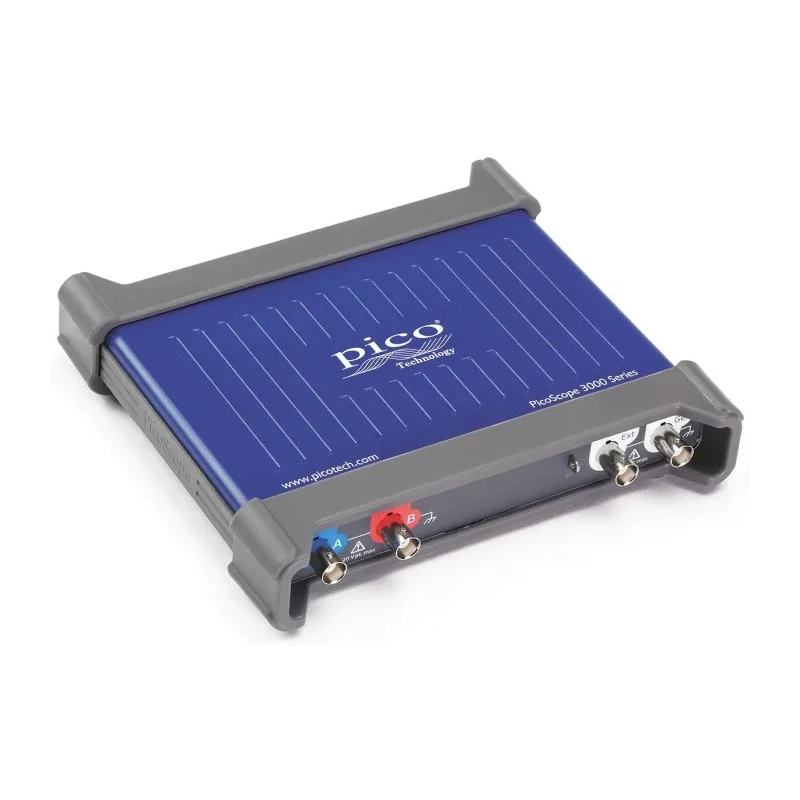

Pico Technology PC-Based Oscilloscope 4-Channel 200 MHz Bandwidth 1GS/s Sampling PicoScope 3406D

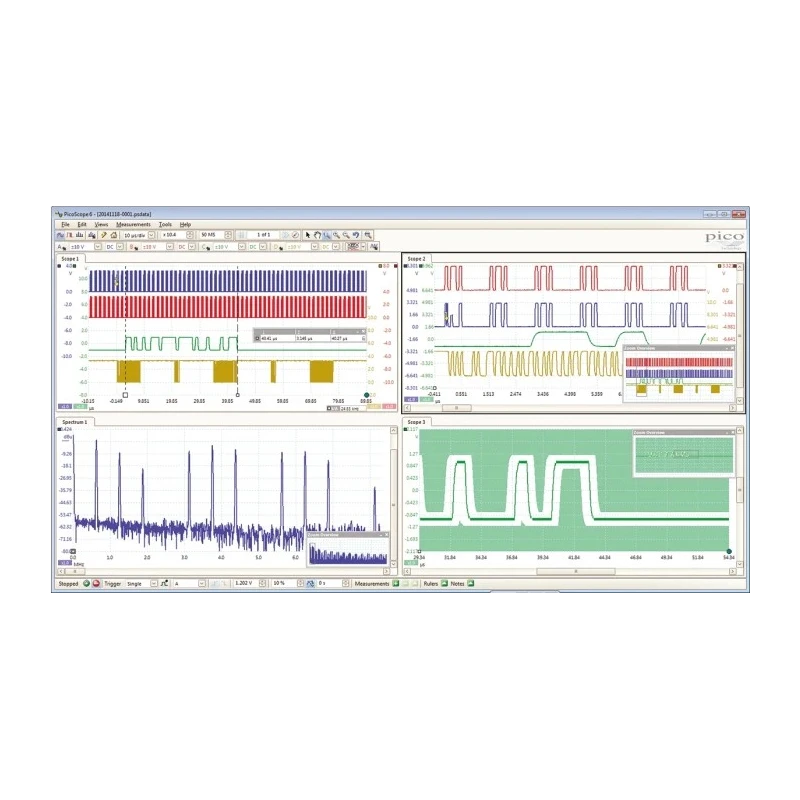

Pico Technology PicoScope 3406D is a PC-Based Oscilloscope featuring 4 analog channels and a bandwidth of 200 MHz. It offers a 1GS/s real-time sampling rate and is designed for portability and USB connectivity, facilitating advanced waveform analysis on a PC with PicoScope6 software.

This oscilloscope delivers high performance with 8-bit vertical resolution, a rise time of 1.75 ns, and supports a minimum time base of 500 ps/div to a maximum of 5000 s/div, enabling both rapid signal capture and long time duration measurements.

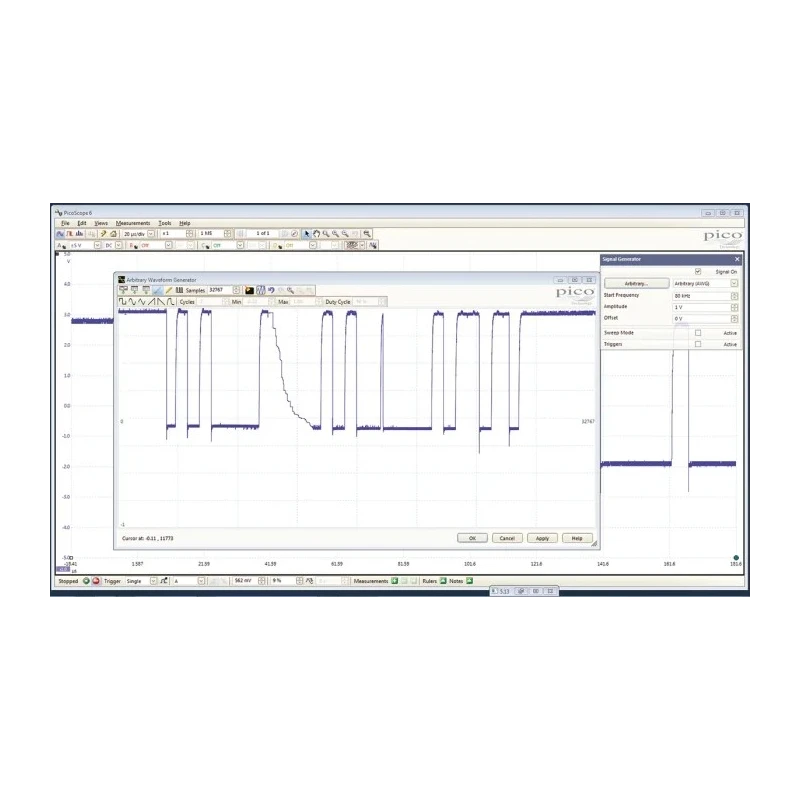

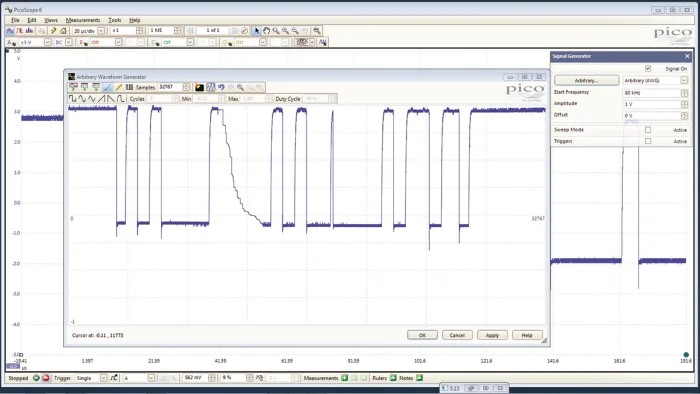

The device boasts a 512MS buffer memory for deep capture and includes an arbitrary waveform generator, allowing signal output for test and development scenarios. It supports serial protocol decoding for SPI, I2C, I2S, RS-232/UART, CAN, LIN, and FlexRay, extending its usability across diverse automotive and industrial communications.

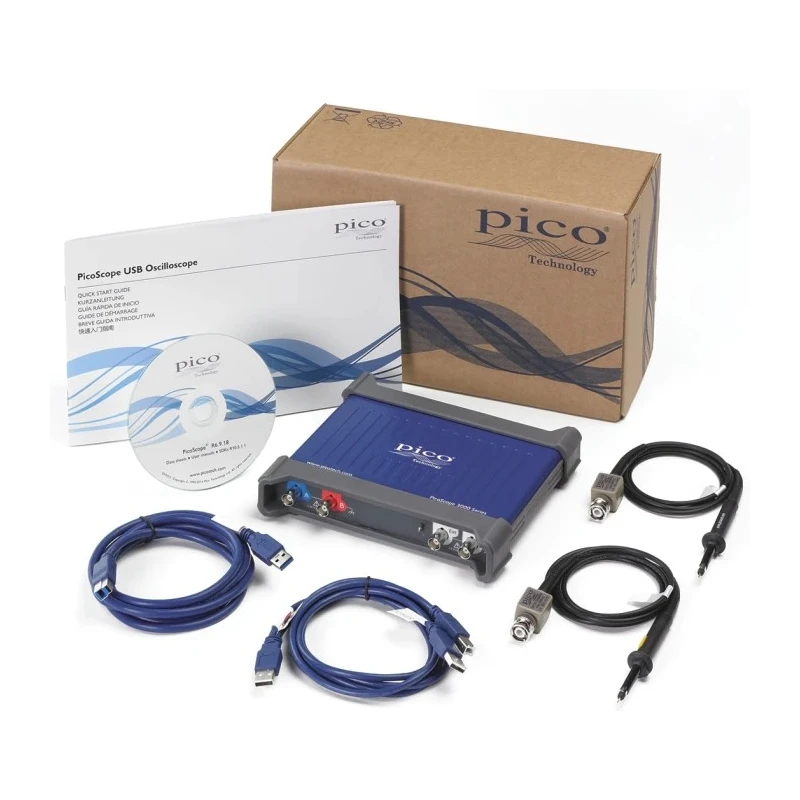

Advanced trigger options such as pulse width, window, dropout, channel logic, digital pattern, and other qualifiers are built-in, alongside mask limit testing and alarm functions. The oscilloscope comes with switchable x1/x10 probes for each analog channel, a carrying case, USB cables, power adaptor, software, and reference materials.

Common applications include design validation, educational laboratories, service and maintenance, fault finding, and high-precision monitoring tasks in industrial, manufacturing, and research environments. Its compliance with EN 61010-1:2010 safety standards and electromagnetic compatibility EN61326-1:2006 ensures reliability and safety in critical settings.

Features advanced 8-bit vertical resolution and maximum vertical sensitivity of 4V/div. Includes USB 3.0 connectivity and supports multiple serial protocol decodings. Equipped with 512MS buffer memory and arbitrary waveform generator capabilities.

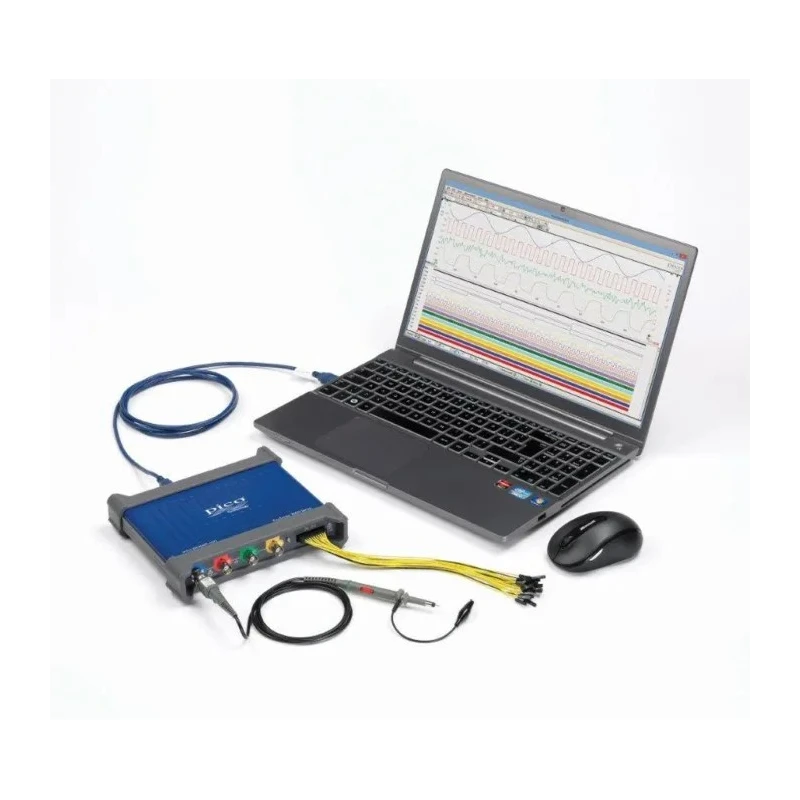

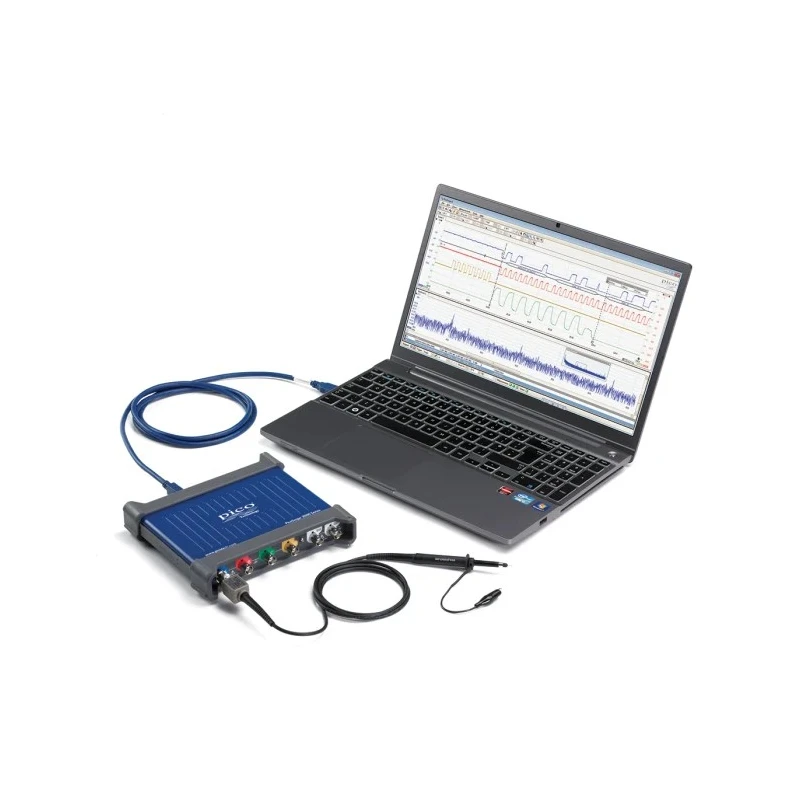

Rapid hardware-accelerated update rates enable up to 100,000 waveforms per second. Suitable for design, testing, education, servicing, and fault finding applications. Compact USB-powered design compatible with PicoScope6 software for comprehensive analysis.

Supports CAN, IIC, LIN, RS232, SPI, UART, and USB interfaces for extensive protocol decoding. Complies with EN 61010-1:2010 and EN61326-1:2006 certifications. Explore the Pico Technology range on EnvMart for reliable, high-quality Oscilloscopes and measurement instruments tailored to industrial and laboratory needs.
