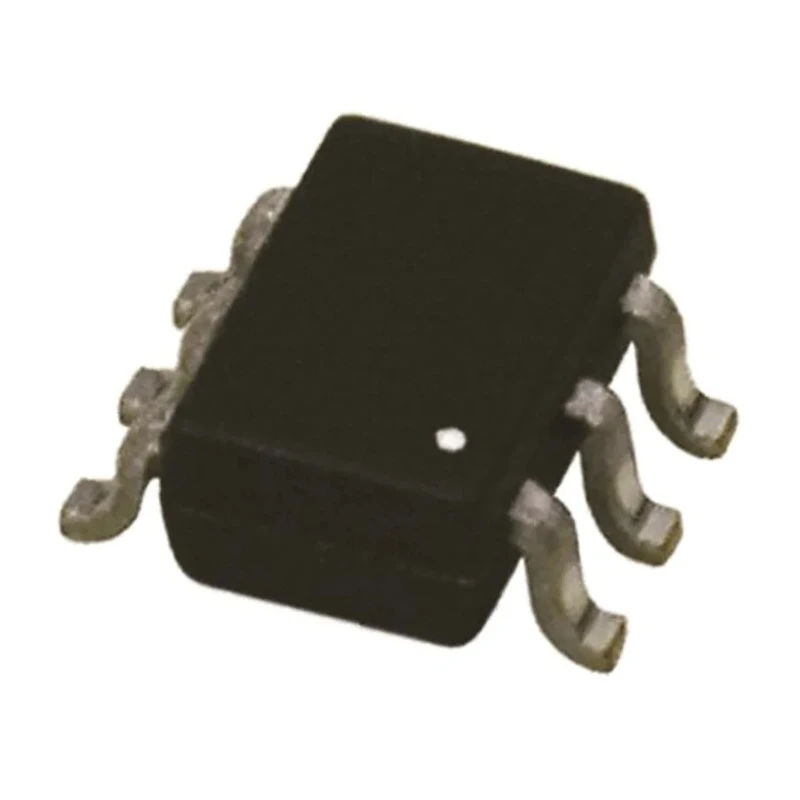

Nexperia 2-Channel Non-Inverting Schmitt Trigger Input Single Ended Buffer 6-Pin SC-88 74LVC2G17GW,125

Nexperia 74LVC2G17GW,125 is a 2-Channel Non-Inverting Schmitt Trigger Input Single Ended Buffer packaged in a compact 6-pin SC-88 surface-mount case. Designed with low-voltage CMOS logic technology, it operates efficiently across a supply voltage range of 1.65 to 5.5 volts.

This buffer IC features Schmitt trigger inputs that provide noise immunity and signal conditioning, making it ideal for industrial, electronic, and automotive circuit applications that require reliable switching and buffering of digital signals.

The device supports LVTTL and TTL input compatibility and outputs standard LVCMOS logic levels, ensuring seamless integration into various logic families and microcontroller systems.

It has a maximum propagation delay time of 13.1 nanoseconds at capacitive load (CL), enabling fast response times needed in high-speed digital circuits. The buffer maintains functionality over a wide temperature range from -40°C to 125°C, suitable for harsh environments and automotive applications.

The SC-88 package provides a space-saving solution with only 6 pins, measuring approximately 2.2 mm in length and 1 mm in height, facilitating compact PCB layouts in modern electronics manufacturing.

Additional electrical characteristics include maximum high level output current of -32 mA and maximum low level output current of 32 mA, ensuring robust drive capabilities for downstream circuitry. The very low quiescent supply current of 4 μA supports energy-efficient designs.

Two-channel non-inverting Schmitt trigger buffer for signal conditioning. Low-voltage CMOS logic operation from 1.65 V to 5.5 V supply. Compact 6-pin SC-88 surface mount package for minimal PCB footprint. Supports LVTTL and TTL inputs with LVCMOS outputs for compatibility.

Maximum propagation delay time of 13.1 ns at capacitive load ensures speed. Wide operating temperature range from -40°C to 125°C enables harsh environment use. Low supply current of 4 μA for power-sensitive applications.

Robust output drive with ±32 mA high/low-level output currents.

This buffer IC is widely used in electronics manufacturing, industrial automation, automotive electronics, and embedded systems where reliable digital signal buffering and cleaning are essential. Its compact package and wide voltage and temperature ranges make it a versatile logic component suitable for diverse applications.

Explore more in the Buffers category for compatible and complementary semiconductor logic components at EnvMart.
