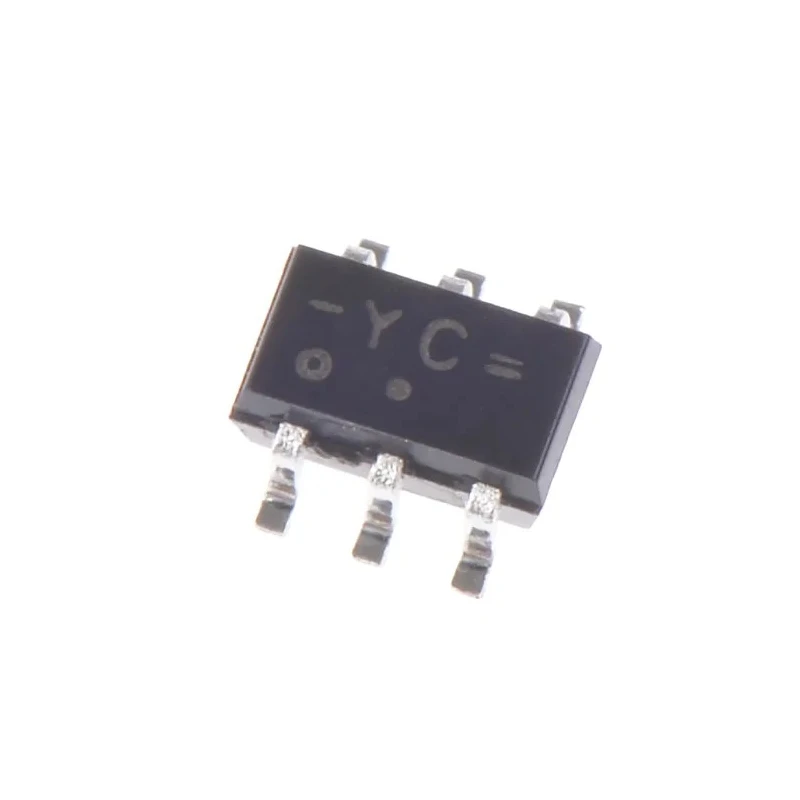

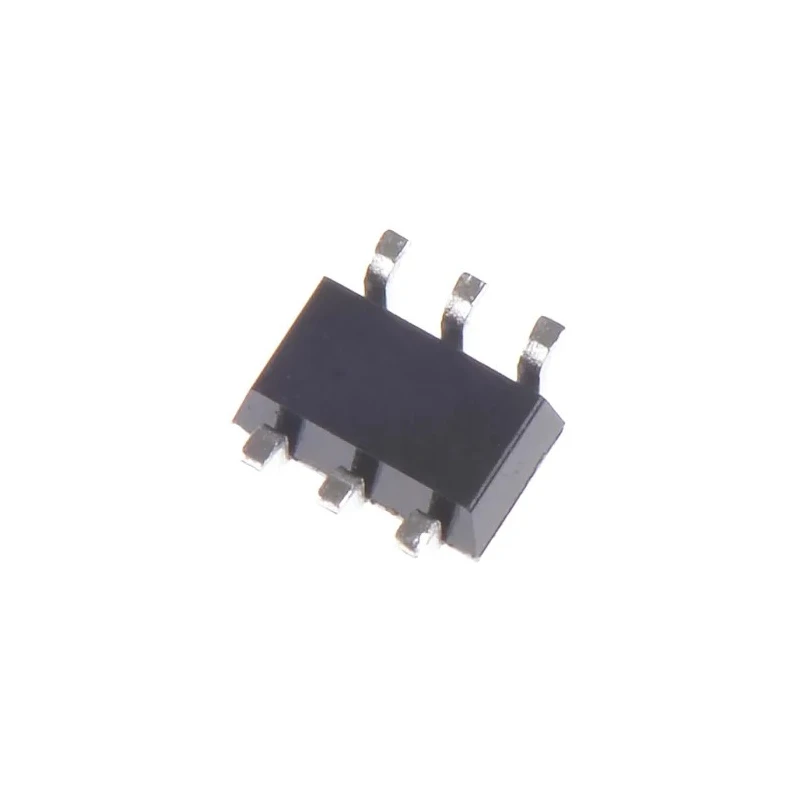

Nexperia 1 3-Input Multifunction Logic Gate, 6-Pin SC-88 Package, LVC Family, TTL Input, 1.65-5.5 V 74LVC1G57GW,125

The Nexperia 74LVC1G57GW,125 is a high-performance 1 3-input multifunction logic gate IC housed in a compact 6-pin SC-88 surface mount package. Engineered for low-voltage CMOS logic applications, this device offers seamless compatibility with TTL input types and operates efficiently over a supply voltage range from 1.65 to 5.5 volts, making it suitable for a wide variety of digital circuit designs in industrial, electronic, and computing contexts.

This logic gate device features a single multifunction gate with three inputs, enabling complex logic functions in compact form factors. The 6-pin SC-88 package supports surface mounting, facilitating streamlined PCB design and assembly in electronics manufacturing. The chip's operating temperature range from -40°C to 125°C ensures robust performance in demanding environments. It exhibits a maximum propagation delay time of 6.4 nanoseconds, making it ideal for medium to high-speed digital operations requiring prompt signal responses.

The output stage delivers a maximum high-level output current of -32 mA and a maximum low-level output current of 32 mA, supporting strong signal drive capability with LVCMOS output standards. While this device does not include a Schmitt trigger input, it offers stable logic behavior and is compatible with Input LVTTL/TTL and Output LVCMOS standards.

Single multifunction logic gate with 3 inputs per gate. Compact and efficient surface mount package (6-pin SC-88). Wide supply voltage operation between 1.65 V and 5.5 V. High-speed operation with propagation delay time of 6.4 ns.

Operating temperature range from -40°C to 125°C. Output capable of driving 32 mA currents at logic levels. Compatible with standard digital logic families (LVTTL/TTL input, LVCMOS output). Low power consumption typical for the 74LVC series of CMOS logic gates.

Ideal for use in semiconductor logic applications across electronic components, industrial systems, and embedded systems, the Nexperia 74LVC1G57GW,125 enables compact design approaches without compromising on logic functionality and speed. Its surface mount form factor and broad operating conditions make it suitable for automated manufacturing environments and reliable operation in electronic assemblies.

Explore more semiconductor and logic gate products to find components suited to your specific industrial or electronic design needs at EnvMart. This Logic Gate IC adheres to modern industrial standards while delivering trusted performance from the Nexperia 74LVC logic family.
