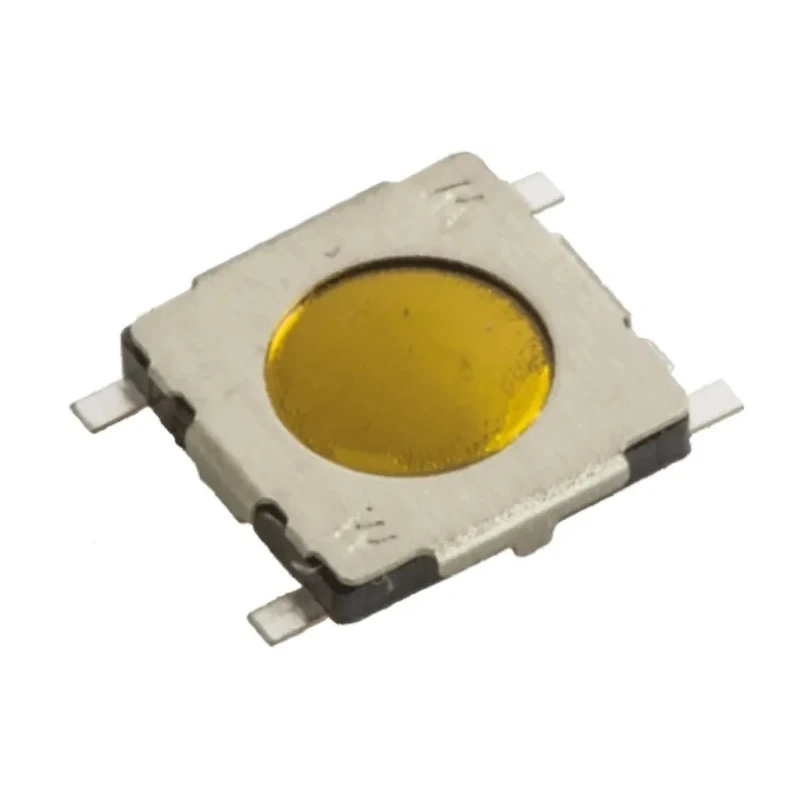

Wurth Elektronik Yellow Tactile Switch, SPST Momentary Surface Mount 20mA 15V DC 5mm x 5mm 431181008816
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 800μm |
| Length | 5mm |
| Width | 5mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | (On)-Off |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Yellow |
| Contact DC Voltage | 15V dc |
| Actuator Style | Tactile |
| Actuator Orientation | Straight |
| Switch Contact Current | 20mA |
| Operating Force | 1.57N |
| Mechanical Life | 1000000Cycles |
Key Features
- This tactile switch features a yellow actuator color for easy identification.
- It uses a surface mount type for PCB assembly.
- The switch operates momentarily with an operating force of 1.57N.
- It supports a contact DC voltage of 15 V and a contact current of 20mA.
- The switch is designed with a copper alloy cover and stainless steel contacts with silver cladding.
- The mechanical life expectancy reaches up to 1,000,000 cycles.
- Operating temperature range spans from -40°C to +85°C, suitable for varied environmental conditions.
- The switch height is 800μm with a length and width of 5mm each.
Product Description
Wurth Elektronik 431181008816 Yellow Tactile Switch is a momentary SPST switch designed for precise tactile feedback in electronic circuits. This surface-mounted switch measures 5mm in length and width, with a height of 800μm, making it compact and ideal for tight PCB layouts.
Featuring a yellow actuator, it ensures easy visual identification among other components. The switch operates with a 1.57N force, delivering reliable actuation for user inputs. With a copper alloy cover and stainless steel contacts plated with silver, it ensures durability and consistent electrical performance.
Rated for 15 V DC at 20mA, it is suitable for low voltage control applications. The device's mechanical life spans up to 1,000,000 cycles, supporting long-term reliability in electronic products. Its operating temperature range from -40°C to +85°C equips it to perform in diverse environmental conditions encountered in industrial, consumer electronics, and automation systems.
This tactile switch is not illuminated and features a straight actuator orientation. It is manufactured in China with compliance to RoHS standards, ensuring environmentally friendly materials.
This tactile switch features a yellow actuator color for easy identification. It uses a surface mount type for PCB assembly. The switch operates momentarily with an operating force of 1.57N. It supports a contact DC voltage of 15 V and a contact current of 20mA.
The switch is designed with a copper alloy cover and stainless steel contacts with silver cladding. The mechanical life expectancy reaches up to 1,000,000 cycles. Operating temperature range spans from -40°C to +85°C, suitable for varied environmental conditions.
The switch height is 800μm with a length and width of 5mm each. The actuator style is tactile and oriented straight for reliable user feedback.
This Wurth Elektronik tactile switch is commonly used in electronics, automation, consumer electronics, and industrial control systems for reliable momentary switching actions. It is compatible with surface mount PCB assembly processes and offers superior mechanical endurance and electrical performance. It is a trusted choice for designers seeking high-quality, compact tactile switches.
Explore more Tactile Switches and related electronic components in EnvMart’s extensive catalog to find compatible solutions for your design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The tactile switch supports a contact current of 20mA.
It is rated for a contact DC voltage of 15V.
This model measures 5mm in length and width, with a height of 800μm.
The mechanical life expectancy of this tactile switch reaches up to 1,000,000 cycles.
The operating temperature range spans from -40°C to +85°C.
It uses a surface mount type for PCB assembly.
This tactile switch features an SPST (Single Pole, Single Throw) configuration.
The switch operates with an operating force of 1.57N.
It is designed with a copper alloy cover and stainless steel contacts with silver cladding.
Yes, it complies with RoHS standards for environmentally friendly materials.
It features a tactile actuator style with a straight orientation for reliable feedback.
It is commonly used in electronics, automation, consumer electronics, and industrial control systems.
