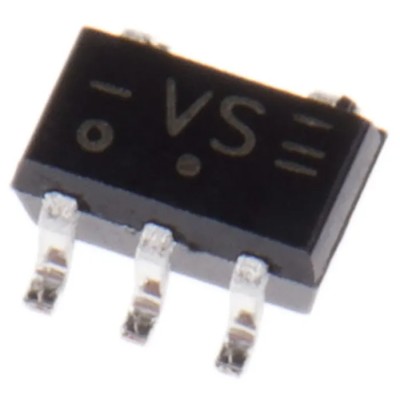

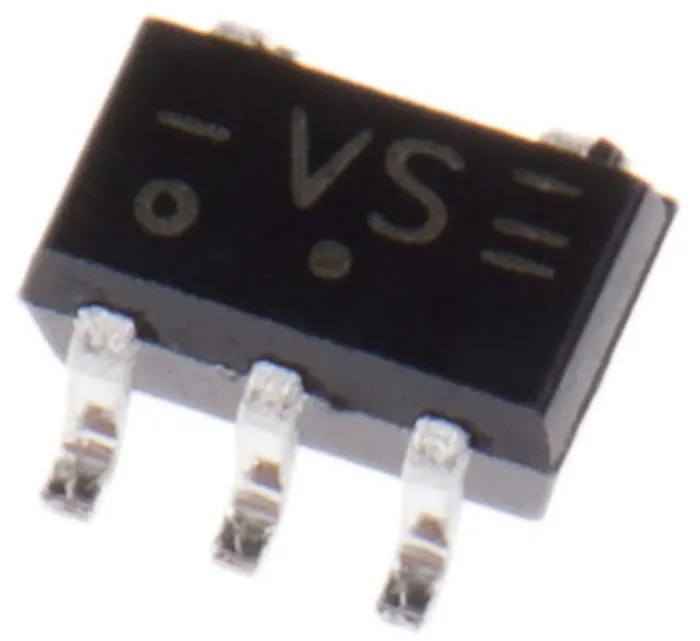

Nexperia 1 2-Input OR Logic Gate HCT Series 5-Pin TSSOP 74HCT1G32GW,125

Nexperia 74HCT1G32GW,125 1 2-Input OR Logic Gate belongs to the 74HCT family of high-speed CMOS logic devices. It is designed to operate at voltage levels between 4.5 volts and 5.5 volts, making it suitable for modern electronic circuit designs requiring TTL input compatibility and CMOS output currents.

This logic gate offers a single logic element with two inputs, implemented in a compact 5-pin TSSOP surface mount package. It features a maximum propagation delay of 23 nanoseconds at CL, which delivers fast switching performance ideal for digital electronics applications.

The operating temperature range of -40°C to 125°C ensures this device is robust in various industrial environments. It has low output currents with a maximum high level output current of -2 mA and a maximum low level output current of 2 mA, suitable for power-efficient circuit integration.

Manufactured in Malaysia, this component conforms to standard semiconductor quality controls but does not carry automotive grade certification. The Schmitt trigger input is not available in this model.

This Nexperia logic gate is widely used in electronic components, embedded systems, PCB designs, and other industrial automation applications where compact, reliable logic functionality is required.

Operates in the voltage range 4.5 to 5.5 V with TTL input compatibility. Compact 5-pin TSSOP package designed for surface mount technology. Maximum propagation delay of 23 ns supports high-speed circuit operations. Wide operating temperature range from -40°C to 125°C for industrial reliability.

Single OR logic function element with two inputs. Low output current ensures efficient power usage. Manufactured in Malaysia maintaining quality standards. Ideal for use in semiconductor, electronic component, and embedded system applications.

Not suitable for automotive applications due to absence of related certification. Explore the comprehensive range of semiconductor Logic Gates like this at EnvMart to design and build advanced electronics reliably and efficiently.
