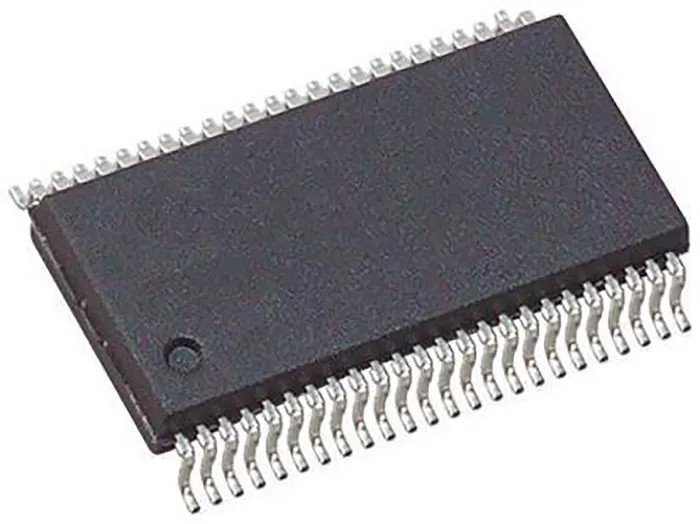

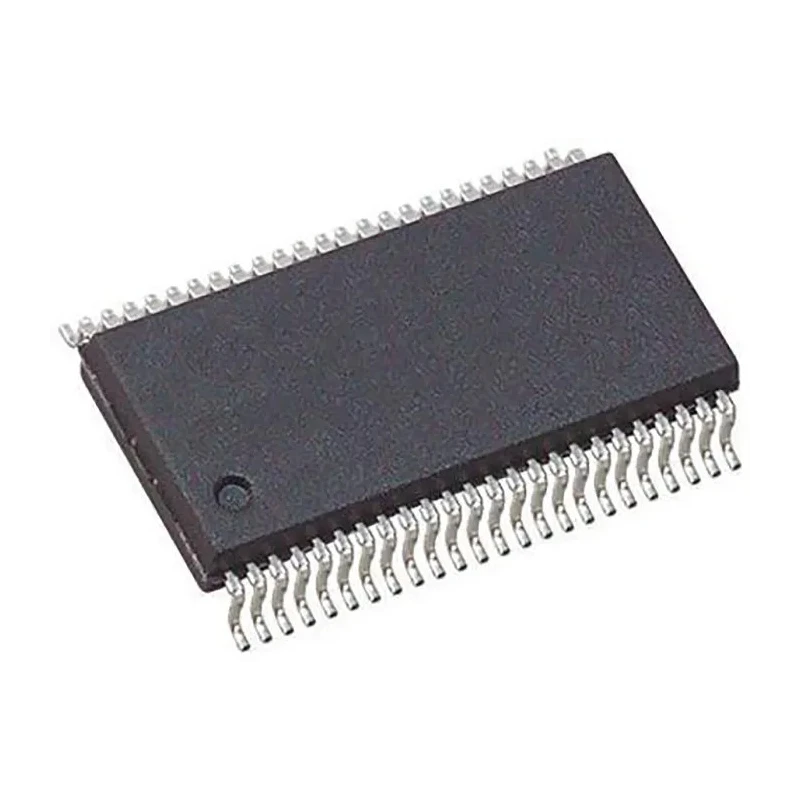

onsemi 16-Channel Buffer & Line Driver, 3 State, Non-Inverting, 48-Pin TSSOP 74LCX16244MTDX
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.74mm |
| Operating Voltage Range | 2.0 to 3.6V |
| Length | 16mm |
| Model | 74LCX16244MTDX |
| Width | 10.6mm |
| Mount Type | Surface |
| Output type | 3 State |
| Series | LCX16244 |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| IC Type | Buffer & Line Driver IC |
| Number Of Channels | 16 |
| Pin Count | 48 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | LCX |
| Logic Function | Buffer & Line Driver |
| Minimum Supply Voltage | 2V |
| Maximum High Level Output Current | -24mA |
| Maximum Propagation Delay Time @ CL | 5.4ns |
| Supply Current | 20μA |
| Maximum Low Level Output Current | 24mA |
Key Features
- The IC belongs to the LCX logic family supporting advanced high-speed CMOS logic.
- Operates over a supply voltage range of 2.0 to 3.6 V with 5 V tolerant inputs and outputs.
- Features 16 channels with 3-state non-inverting outputs for effective buffering and line driving.
- Designed with surface mount type and compact 48-pin TSSOP package for ease of PCB integration.
- Minimum and maximum operating temperatures of -40°C and 85°C respectively make it suitable for harsh environments.
- Has a maximum propagation delay time of 5.4 ns at capacitive loads.
- Consumes a low supply current of 20 μA, ensuring power efficiency in applications.
- Output current capability of ±24 mA for high drive performance.
Product Description
onsemi 74LCX16244MTDX is a high-performance 16-channel buffer and line driver integrated circuit designed for industrial and electronic applications requiring robust buffering and signal driving capabilities. Featuring non-inverting 3-state outputs, this IC provides reliable signal integrity for transmission lines and interfaces.
Part of the LCX family from onsemi, it utilizes advanced high-speed low-voltage CMOS technology to deliver efficient operation across a supply voltage range from 2.0 to 3.6 V, with 5 V tolerant inputs and outputs that allow for versatile system design.
The device is housed in a space-saving 48-pin TSSOP surface-mount package measuring 16 mm in length, 10.6 mm in width, and 2.74 mm in height, making it suitable for compact PCB layouts and high-density assemblies. Its minimal supply current of 20 μA and high output current capability (±24 mA) make it ideal for power-sensitive industrial, communication, and embedded systems.
Operating temperature range from -40°C to 85°C ensures durability in demanding thermal environments, suitable for industrial electronics, instrumentation, and interface circuitry. The maximum propagation delay of 5.4 ns at capacitive loads supports high-speed signal processing requirements.
This onsemi buffer & line driver IC does not carry automotive certifications, positioning it as a versatile component for general industrial and commercial electronics applications.
The IC operates with 16 channels and 3-state, non-inverting output, enabling robust line driving. Low-voltage operation with 5 V tolerant I/O supports multiple interface standards. Compact TSSOP 48-pin packaging simplifies system integration.
Supports extended operating temperature range for industrial reliability. Low quiescent current promotes energy-efficient designs. High output current rating delivers signal strength and noise immunity. Suitable for use in interface ICs, buffer applications, and line driver circuits.
Explore the full range of onsemi semiconductor interface ICs and Line Interface ICs for your industrial, communication, and embedded application needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating voltage range for the 74LCX16244MTDX is from 2.0 to 3.6 V.
This model supports 16 channels with 3-state non-inverting outputs.
The maximum propagation delay time is 5.4 ns at capacitive loads.
The TSSOP package measures 16 mm in length, 10.6 mm in width, and 2.74 mm in height.
It consumes a low supply current of 20 μA, promoting energy efficiency.
The output current capability is ±24 mA, providing high drive performance.
The operating temperature range is from -40°C to 85°C, suitable for harsh environments.
It features 3-state non-inverting outputs for effective buffering and line driving.
The country of origin for the 74LCX16244MTDX is India.
This IC belongs to the LCX logic family, supporting advanced high-speed CMOS logic.
This model is designed for surface mount applications, facilitating PCB integration.
The outputs of this IC are non-inverting, allowing for straightforward signal processing.
