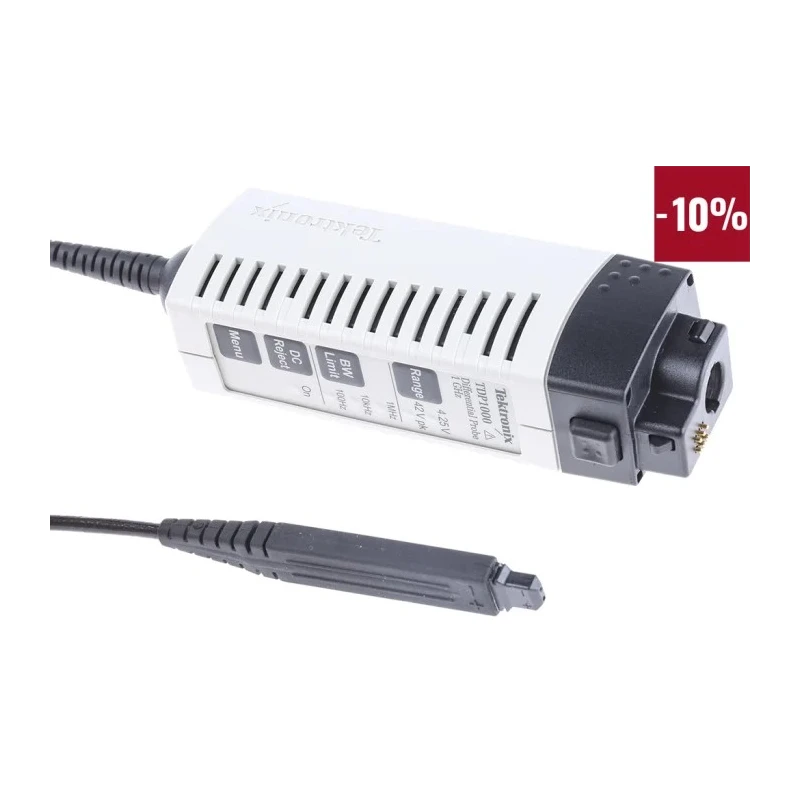

Tektronix Differential High Voltage Oscilloscope Probe 1 GHz Bandwidth, 35V Max Common Mode Voltage TDP1000

Free Delivery in India | Lowest Global Shipping Charges

Tektronix Differential High Voltage Oscilloscope Probe 1 GHz Bandwidth, 35V Max Common Mode Voltage TDP1000

Name: Tektronix Differential High Voltage Oscilloscope Probe 1 GHz Bandwidth, 35V Max Common Mode Voltage TDP1000
Brand: TEKTRONIX
SKU: 323966
Price: 9358.37 USD
Availability: InStock



Category Oscilloscope Probe Brand TEKTRONIX Condition New

Specifications

Country of Origin	United States
Brand	Tektronix
Model	TDP1000
Bandwidth	1GHz
Series	TDP
Probe type	Differential, High Voltage
Rise Time	350ps
Standards/Approvals	ISO 9001, CE, ISO 14001
Maximum Common Mode Input Voltage	35V dc
Attenuation is 50	1/5:1

Key Features

Offers a bandwidth range from DC to 1 GHz for precise signal analysis.
Delivers a fast 350 ps rise time for accurate high-speed transient capture.
Supports differential mode input voltage of ±42 V (DC + peak AC) and 30 VRMS.
Has an input impedance of 1 MΩ in parallel with 50 pF at 1 MHz.
Includes selectable bandwidth limiting filters to reduce noise and interference.
Equipped with DC reject function for stable baseline measurements.
Compatible with Tektronix TekVPI probe interface for easy oscilloscope connection.
Features Auto-Zero capability to null output offset automatically.

Product Description

Tektronix TDP1000 Differential High Voltage Oscilloscope Probe offers exceptional high-speed electrical and mechanical performance, ideal for accurate measurements in advanced electronics testing and development environments. With a bandwidth of 1 GHz and a maximum common mode input voltage of 35 V DC, the probe supports dynamic testing of switch mode power supplies, CAN/LIN bus systems, and rapid digital signal characterization.

The probe features 50:1 and 5:1 attenuation settings enabling flexible voltage level adjustments for varying applications. A fast rise time of 350 ps allows for detailed observation of transient phenomena. Input impedance is set at 1 MΩ ll50 pF at 1 MHz, carefully designed to minimize signal loading and preserve waveform integrity during measurement.

Incorporating bandwidth limiting filters and a DC reject option, the probe delivers clean signals with minimized noise. The TekVPI probe interface ensures seamless integration with compatible Tektronix oscilloscopes, and the Auto-Zero function conveniently nulls offset errors for precise readings.

This oscilloscope probe is engineered to fulfill demanding requirements in industrial, laboratory, manufacturing, automotive, and research and development applications. It is well suited for high-speed switch mode power supply design, CAN/LIN bus signal analysis, and design validation across electronic development tasks.

Bandwidth from DC to 1 GHz for high frequency fidelity. Selectable attenuation ratios of 50:1 and 5:1 adapt to different voltage ranges. Rapid 350 ps rise time captures fast electronic events accurately. High input impedance minimizes circuit load during probing.

Bandwidth limiting filters reduce signal noise and interference. DC reject stabilizes signals for clearer baseline measurement. TekVPI interface for direct oscilloscope connectivity and control. Auto-Zero feature automatically nulls offset delivering precise output.

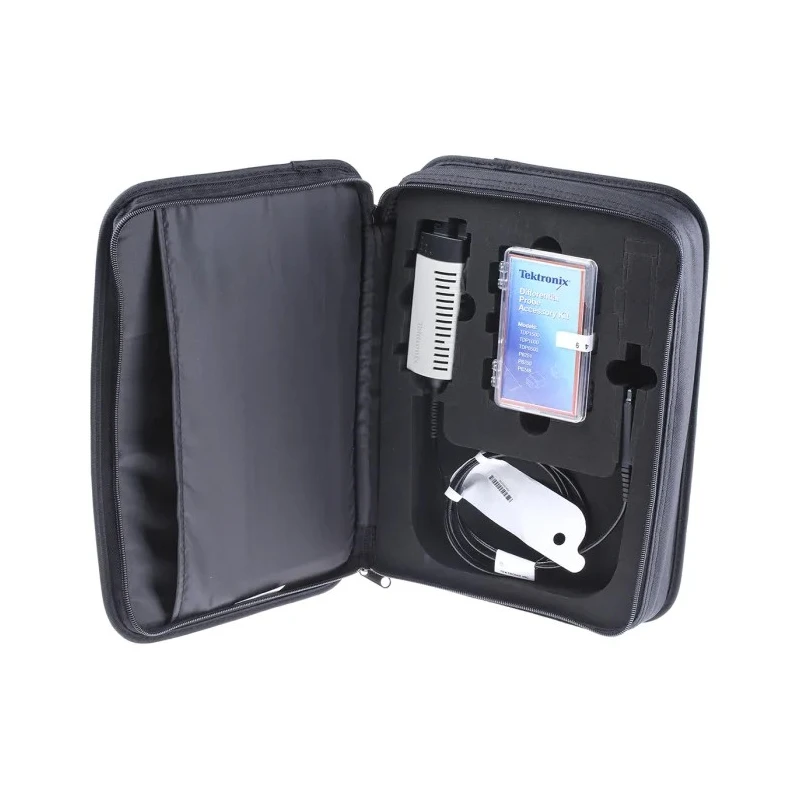

Set includes the Tektronix TDP1000 Oscilloscope Probe designed for superior differential high voltage measurements. Product condition is new and originates from the United States. Explore the full range of industrial measurement instruments and oscilloscope accessories on EnvMart for comprehensive test and measurement solutions.
