Texas Instruments Operational Amplifier 2.5 MHz, 8-Pin 50V SOIC OPA454AIDDA

Texas Instruments OPA454AIDDA Operational Amplifier is a power operational amplifier designed for high voltage and high current outputs, capable of easily driving low impedance and challenging loads.

This amplifier features a 2.5 MHz gain bandwidth product with a slew rate of 13 V/μs, supporting supply voltages from 10V to 50V, making it ideal for power-intensive applications. With a low input bias current of 100 pA and input offset voltage of ±4 mV, it delivers precision performance across a wide operating temperature range of -40°C to 85°C.

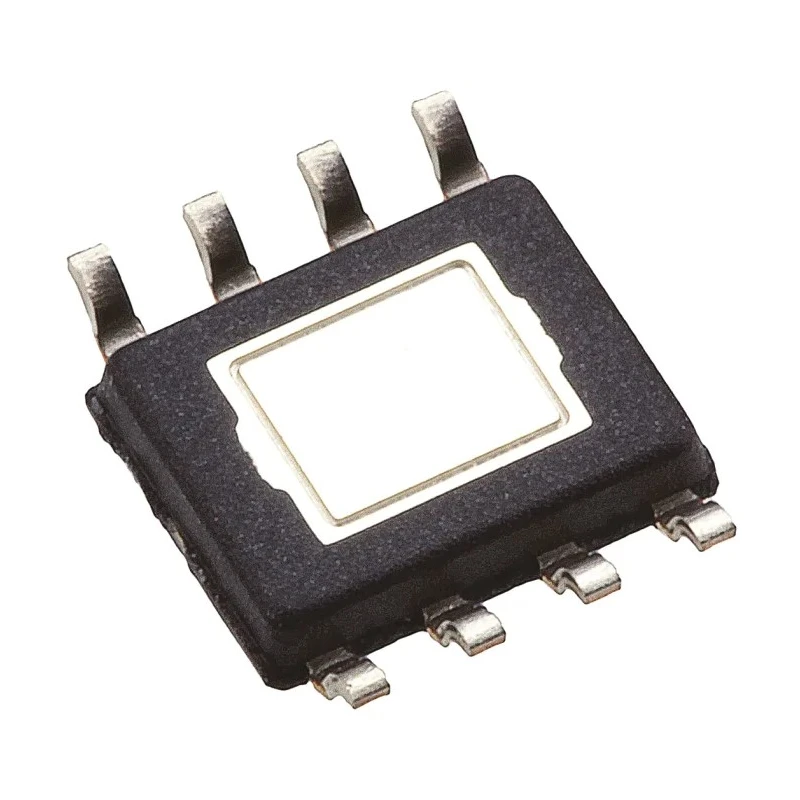

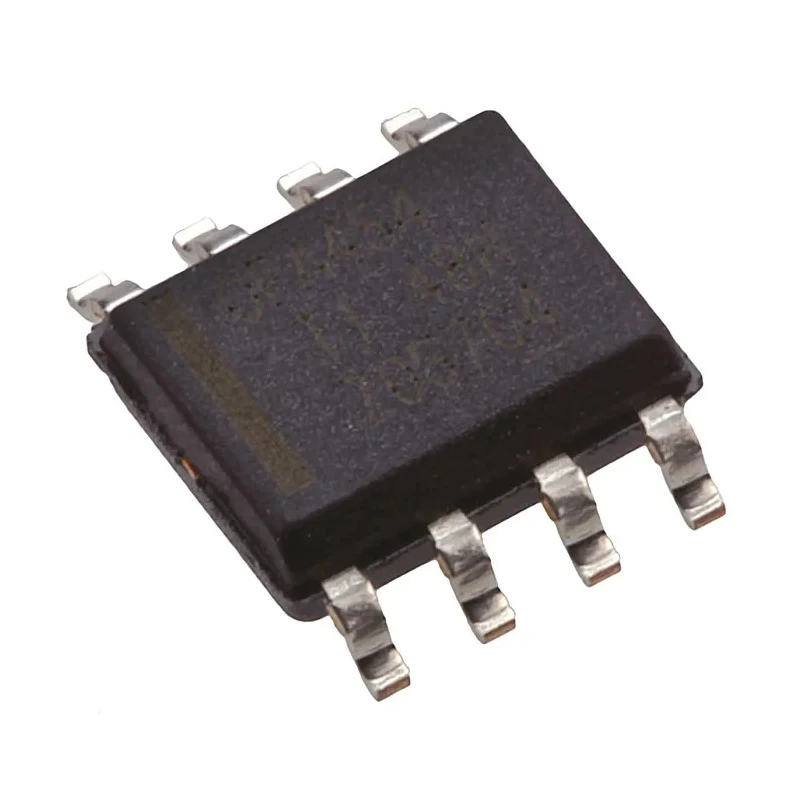

The device is housed in an 8-pin SOIC surface mount package with dimensions 4.89 mm (length), 3.9 mm (width), and 1.48 mm (height), facilitating compact and efficient PCB mounting.

Applications include driving MOSFETs and power transistors, bridge amplifiers, motor speed controllers, servo amplifiers, power supplies, and complex instrument systems requiring robust and reliable amplification.

Features a gain bandwidth product of 2.5 MHz ensuring effective signal amplification. Supports supply voltages ranging from 10V minimum to 50V maximum for versatile use. Incorporates low input bias current of 100 pA for precision operation.

Offers a high slew rate of 13 V/μs for rapid response. Operational temperature range from -40°C to 85°C suitable for diverse environments. Compact 8-pin SOIC package with dimensions 4.89mm length, 3.9mm width, and 1.48mm height.

Provides output current capability up to 50mA for driving demanding loads. Designed for surface mount technology ensuring easy PCB integration. Complies with RoHS standards assuring compliance with environmental regulations.

Ideal for applications such as motor speed controllers, servo amplifiers, bridge amplifiers, and power supplies.

This operational amplifier suits industrial, electronic, automotive, and instrumentation system applications where high current and voltage operation with precise performance is required.
