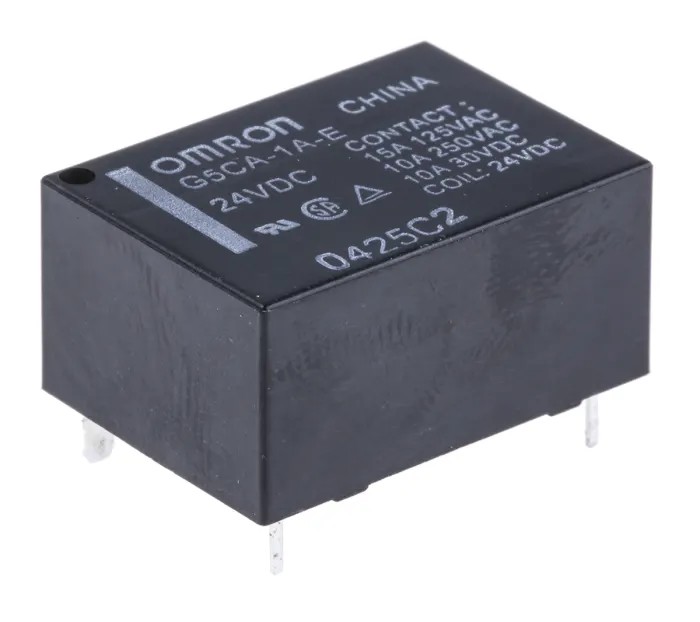

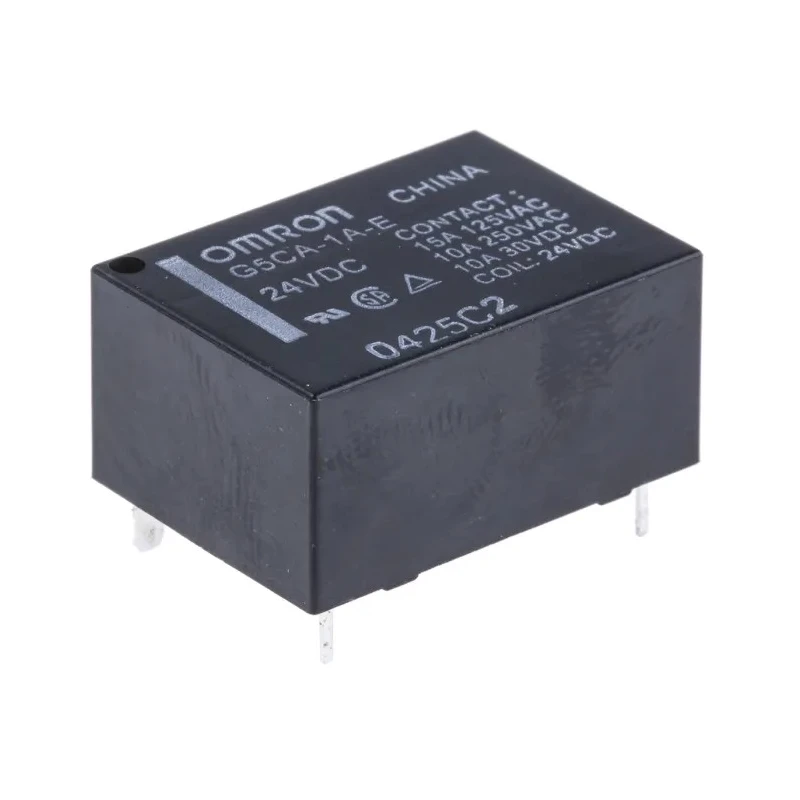

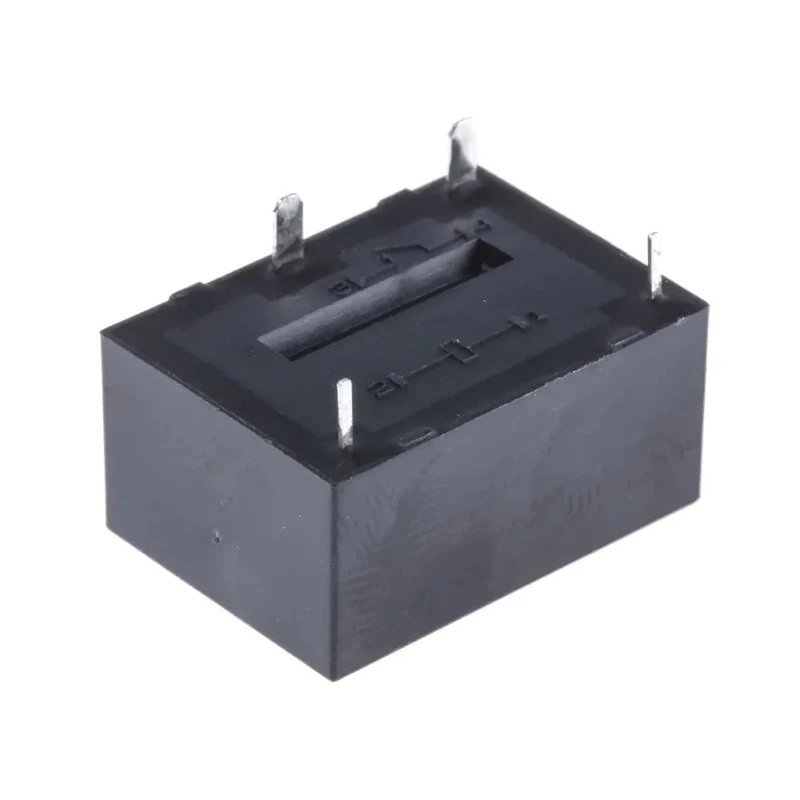

Omron PCB Power Relay 24V dc Coil 15A Switching Current SPST G5CA-1A-E DC24
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 11mm |
| Length | 22mm |
| Model | G5CA-1A-E DC24 |
| Width | 16mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5CA |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Switching Current | 15A |
| Terminal type | Through Hole |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 2.9kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 240V ac |
| Coil Power | 200mW |
| SPST-NO min PCB relay,15A 24Vdc coilBrand | Omron |
Key Features
- The relay features a 24V dc coil voltage to ensure consistent operation.
- It supports a switching current of up to 15A for efficient load handling.
- The contact configuration is SPST, offering reliable single-pole single-throw switching.
- Compact dimensions of 22mm length, 16mm width, and 11mm height suit tight PCB layouts.
- Coil resistance is 2.9kΩ and coil power consumption is 200mW for energy-efficient usage.
- Suitable for switching AC voltages up to 240V and DC voltages up to 60V.
- Operating temperature range from -25°C to 70°C ensures durability in varied environments.
- Silver alloy contact material provides low contact resistance of 100mΩ enhancing electrical performance.
Product Description
Omron G5CA-1A-E DC24 PCB Power Relay is a robust sub-miniature relay assembly measuring 22mm in length, 16mm in width, and 11mm in height. Featuring a 24V dc coil voltage with a coil resistance of 2.9kΩ and power consumption of 200mW, this relay is engineered for energy-efficient operation in power switching circuits.
This Omron relay supports switching currents up to 15A and is suitable for switching AC voltages up to 240V and DC voltages up to 60V, providing versatility across various electrical applications. The SPST (single-pole single-throw) contact configuration and silver alloy contacts with a low contact resistance of 100mΩ ensure reliable circuit control and longevity.
Designed for PCB mounting with through-hole terminals, the relay is sub-miniature and flux-proof, ideal for dense electronic circuits and industrial devices. It operates effectively in temperatures ranging from -25°C to 70°C, making it suitable for harsh environmental conditions.
This product complies with RoHS, UL, and CSA standards, emphasizing commitment to quality and environmental safety. Its typical applications include power management in household appliances and as output switching elements in industrial automation systems.
The relay features a 24V dc coil voltage to ensure consistent operation. It supports a switching current of up to 15A for efficient load handling. The contact configuration is SPST, offering reliable single-pole single-throw switching.
Compact dimensions of 22mm length, 16mm width, and 11mm height suit tight PCB layouts. Coil resistance is 2.9kΩ and coil power consumption is 200mW for energy-efficient usage. Suitable for switching AC voltages up to 240V and DC voltages up to 60V.
Operating temperature range from -25°C to 70°C ensures durability in varied environments. Silver alloy contact material provides low contact resistance of 100mΩ enhancing electrical performance. Approved to RoHS standards with UL and CSA compliance for safety and environmental considerations.
Ideal for industrial device outputs and household appliance power switching applications. Explore more high-quality Power Relays and related electronics products to enhance industrial automation and electrical projects at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 24V DC.
It supports a maximum switching current of 15A.
The relay measures 22mm in length, 16mm in width, and 11mm in height.
It features an SPST (single-pole single-throw) contact configuration.
The coil resistance is 2.9kΩ.
The coil power consumption is 200mW.
This relay can switch AC voltages up to 240V and DC voltages up to 60V.
The operating temperature range is from -25°C to 70°C.
The contact material is silver alloy, which provides low contact resistance of 100mΩ.
It is designed for PCB mounting with through-hole terminals.
This relay complies with RoHS standards and has UL and CSA approvals.
It is suitable for power management in household appliances and as output switching elements in industrial automation systems.
