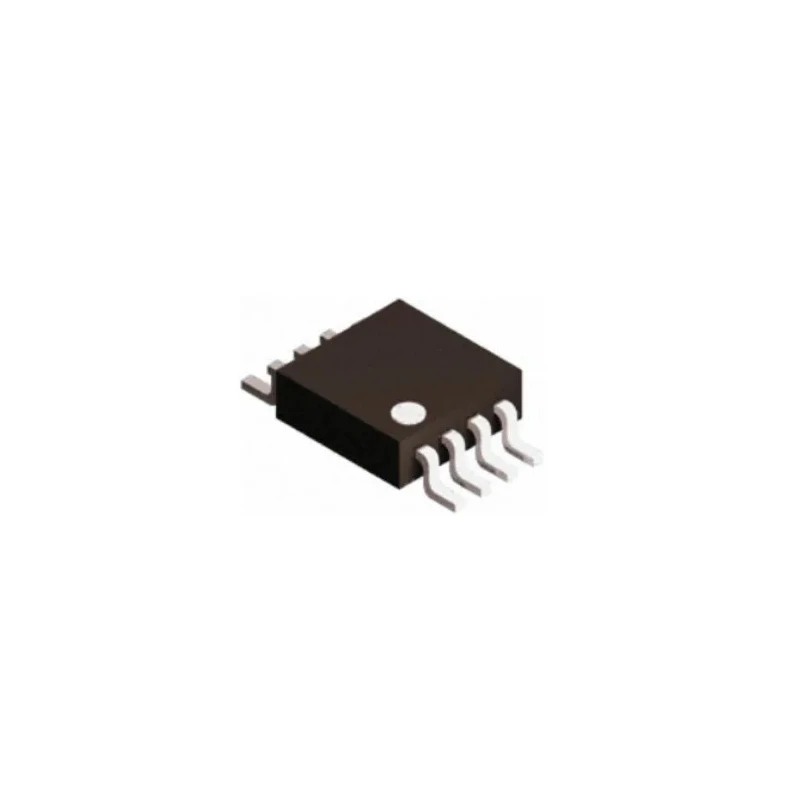

Nisshinbo Micro Devices Operational Amplifier 1 MHz 8-Pin Surface Mount TVSP NJM2732RB1-TE1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Model | NJM2732RB1-TE1 |
| Mount Type | Surface |
| Series | NJM2732 |
| Maximum Operating Temperature | 85°C |
| Package Type | TVSP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Minimum Supply Voltage | 6V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 250 nA |
| Vos - Input Offset Voltage | 5 mV |
| Slew Rate | 0.4V/μs |
| Input Offset Current | 100 pA |
Key Features
- Offers rail to rail input/output capability ideal for ground and high-side sensing.
- Single channel operational amplifier with 8 pins in TVSP surface mount housing.
- Operates at a fixed 6V supply voltage with a gain bandwidth product of 1 MHz.
- Features low input offset voltage of 5 mV and input bias current of 250 nA.
- Wide operating temperature range from -40°C to 85°C suits industrial and automotive applications.
- Slew rate of 0.4 V/μs ensures reliable signal amplification.
- Manufactured using bipolar technology for low noise performance.
- Compliant with RoHS environmental standards.
Product Description
Nisshinbo Micro Devices NJM2732RB1-TE1 operational amplifier is a high-performance, single-channel device packaged in an 8-pin TVSP surface mount. It offers rail to rail input/output capability, facilitating ground-level and high-side sensing applications, essential in precision analog circuits.
This amplifier operates at a stable 6V minimum and maximum supply voltage, with a gain bandwidth product of 1 MHz, making it suitable for a wide range of electronic and industrial environments. Its low input offset voltage of 5 mV and input bias current of 250 nA contribute to accurate signal amplification with minimal error.
The device supports a broad operating temperature range from -40°C to 85°C, ensuring reliable function in harsh conditions found in automotive, industrial, and laboratory settings. A slew rate of 0.4 V/μs delivers the transient response necessary for effective signal processing.
Built on bipolar technology, this operational amplifier offers low noise characteristics enhancing performance in sensitive electronics. The device meets RoHS standards, affirming compliance with environmental regulations.
Rail to rail input/output for wide dynamic sensing ranges. Single channel 8-pin TVSP surface mount package. Stable 6V supply voltage operation. 1 MHz gain bandwidth product suitable for general purpose amplification. Low input offset voltage and bias current for precision.
Supports industrial temperature range -40°C to 85°C. Slew rate ensuring effective signal tracking. Bipolar low noise architecture. RoHS compliant manufacturing.
This operational amplifier is ideal for applications in industrial instrumentation, automotive sensor systems, manufacturing equipment, and general purpose electronic devices. Its compact surface mount package enhances PCB design flexibility and efficiency.
Explore more Operational Amplifiers and electronic amplifiers in EnvMart's Electronics & Electricals catalog to find complementary components for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the NJM2732RB1-TE1 operational amplifier is 1 MHz, making it suitable for general purpose amplification applications.
This operational amplifier operates at a minimum supply voltage of 6V.
The input offset voltage of this model is 5 mV, contributing to its precision in signal amplification.
The NJM2732RB1-TE1 operates within a temperature range of -40°C to 85°C, making it suitable for industrial and automotive applications.
The slew rate of the NJM2732RB1-TE1 is 0.4 V/μs, which ensures effective signal tracking during operation.
This model features a single channel design.
The operational amplifier is packaged in an 8-pin TVSP surface mount configuration.
The input bias current of the NJM2732RB1-TE1 is 250 nA, which aids in maintaining signal integrity.
Yes, this operational amplifier is compliant with RoHS environmental standards.
The NJM2732RB1-TE1 is manufactured using bipolar technology, which contributes to its low noise performance.
This model is ideal for applications in industrial instrumentation, automotive sensor systems, and general purpose electronic devices.
The input offset current for the NJM2732RB1-TE1 is 100 pA, which supports its precision performance.
