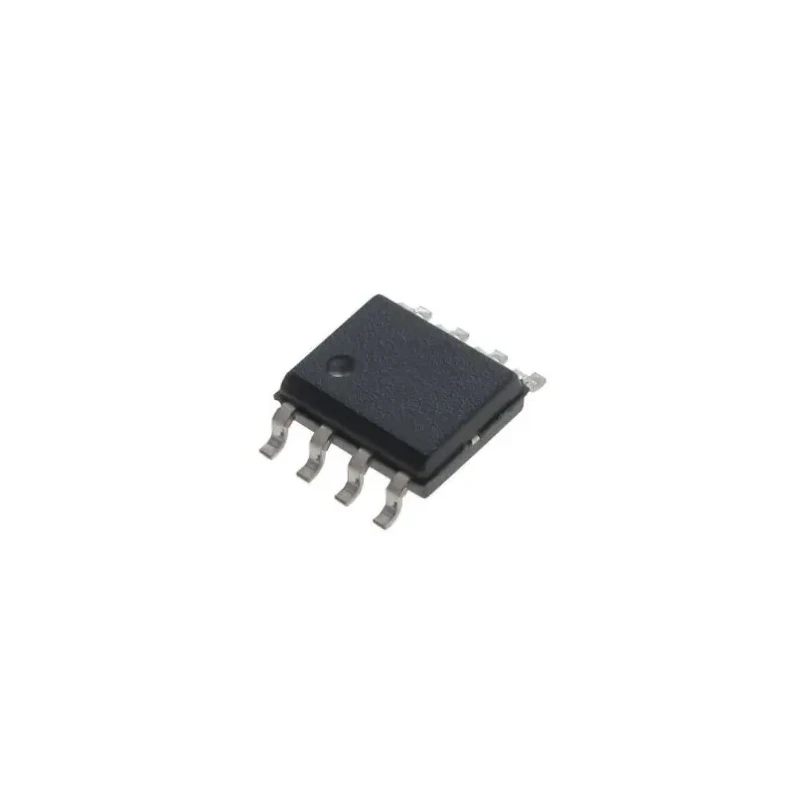

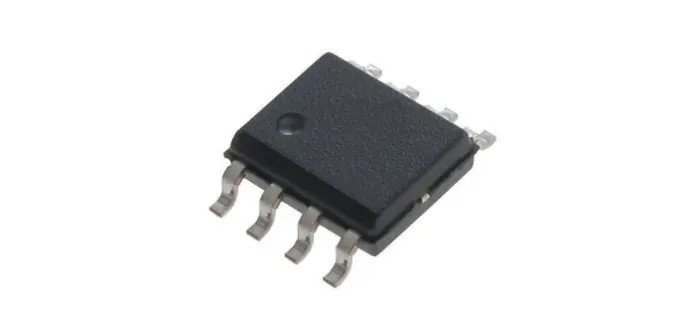

Nisshinbo Micro Devices Operational Amplifier Dual Channel Surface Mount SSOP 32V 200 kHz NJM2904V-TE1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Model | NJM2904V-TE1 |
| Mount Type | Surface |
| Series | NJM2904 |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Minimum Supply Voltage | 32V |
| GBP - Gain Bandwidth Product | 200kHz |
| Input Bias Current | 250 nA |
| Vos - Input Offset Voltage | 7 mV |
| Slew Rate | 0.5V/μs |
| Input Offset Current | 50 nA |
Key Features
- Dual independent high gain operational amplifiers designed for single power supply operation.
- Surface mount SSOP package with 8 pins for space-efficient PCB layouts.
- Wide operating temperature range from -40°C to 85°C.
- Low input offset voltage of 7 mV and low input bias and offset currents.
- Slew rate of 0.5 V/μs for stable and accurate signal amplification.
- RoHS compliant ensuring environmentally friendly manufacturing.
- Suitable for electronic, industrial, and instrumentation applications requiring reliable amplification.
- Designed with bipolar technology for consistent performance across temperature ranges.
Product Description
Nisshinbo Micro Devices NJM2904V-TE1 operational amplifier offers dual high-gain internally frequency compensated amplifiers suitable for single supply operation over a broad voltage range up to 32V. It comes in an 8-pin SSOP surface mount package, ideal for compact electronic circuit designs.
This amplifier operates reliably in harsh environments with an operating temperature range from -40°C to 85°C and features a gain bandwidth product of 200 kHz, enabling effective high-frequency signal processing.
Key electrical parameters include a 7 mV input offset voltage, input bias current of 250 nA, and a slew rate of 0.5 V/μs, making it suitable for precision analog circuit designs. The device complies with RoHS standards, ensuring reduced environmental impact.
The NJM2904V-TE1 uses bipolar technology for high stability and low distortion, with two independent channels suitable for dual operational amplifier tasks. It lacks automotive certification, making it ideal for general industrial, laboratory instrumentation, consumer electronics, and control systems.
Package details: 8-pin SSOP surface mount type ensuring minimized footprint on PCB designs. This product is engineered for industrial electronic applications needing robust, dual-channel amplification with quick response times.
Dual channel operational amplifier in 8-pin SSOP package. Surface mount type for modern PCB requirements. Wide temperature operation: -40°C to 85°C. RoHS compliant, environmentally safe device. Slew rate of 0.5 V/μs for accurate signal transitions.
Input offset voltage 7 mV and low bias currents. Designed with bipolar technology for performance stability. Gain bandwidth product 200 kHz supporting high-frequency applications.
Ideal for electronics manufacturing, industrial control, instrumentation, and other applications requiring a reliable, dual channel Operational Amplifier. Browse our extensive catalog at EnvMart for compatible electronic components and amplifiers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 200 kHz, enabling effective high-frequency signal processing.
It operates reliably within a temperature range of -40°C to 85°C, making it suitable for harsh environments.
This operational amplifier features two independent channels, allowing for dual operational amplifier tasks.
The input offset voltage is 7 mV, contributing to its precision in analog circuit designs.
It comes in an 8-pin SSOP surface mount package, which is ideal for compact PCB layouts.
The slew rate is 0.5 V/μs, allowing for stable and accurate signal amplification.
The input bias current is 250 nA, which is low and helps in maintaining signal integrity.
Yes, this operational amplifier is RoHS compliant, ensuring environmentally friendly manufacturing practices.
The minimum supply voltage for this model is 32V, suitable for various applications.
It is designed with bipolar technology, which contributes to high stability and low distortion in performance.
It is suitable for electronic, industrial, and instrumentation applications requiring reliable amplification.
The device comes in an 8-pin SSOP package, designed for minimized footprint on PCB designs.
