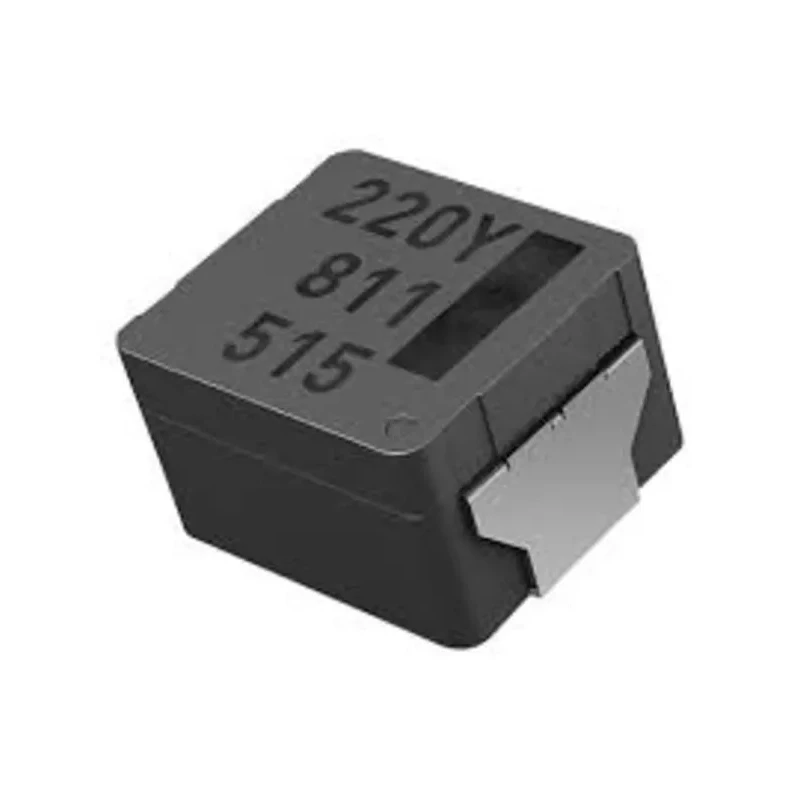

Panasonic Shielded Power Choke Coil with Metal Composite Core, 14 μH ±20% Inductance, 11.2 A DC Current, Surface Mount ETQP6M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 6mm |
| Length | 10.9mm |
| Model | ETQP6M |
| Depth | 6mm |
| Packaging | Tape & Reel |
| Series | ETQP6M |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 14μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 11.2A |
| Pin Count | 2 |
| Maximum DC Resistance | 30.8mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Features a metal composite core for high reliability and performance.
- Wirewound construction ensures durability and stable inductance.
- Operates up to 150°C with high heat resistance including self-heating.
- Complies with AEC-Q200 automotive standards.
- Shielded design minimizes electromagnetic interference.
- Low DC resistance of 30.8mΩ for efficient operation.
- Compact dimensions with length 10.9 mm, height 6 mm, and depth 6 mm.
- Suitable for high vibration and rigorous applications.
Product Description
Panasonic ETQP6M Shielded Power Choke Coil is a metal composite core surface mount inductor engineered for demanding automotive and industrial uses, providing 14 μH inductance with ±20% tolerance and capable of handling a maximum DC current of 11.2 amps. Its integral wirewound construction delivers high stability and resistance to magnetic saturation, ensuring reliable performance across a wide temperature range up to 150°C including effects of self-heating.
The choke coil features low DC resistance of 30.8 milliohms and shields against electromagnetic interference to maintain signal integrity. It meets stringent AEC-Q200 automotive qualification standards and RoHS environmental compliance, making it ideal for use in automotive power management, industrial machinery power supplies, and electronic assemblies subject to vibrations and thermal stresses.
Compact and efficient, the component measures 10.9 mm in length, 6 mm in height, and 6 mm in depth, and is supplied in tape and reel packaging suitable for high-volume automated surface mount technology (SMT) assembly lines.
Metal composite core for durability and performance stability. Wirewound construction enhances inductance precision and vibration resistance. Operates reliably up to 150°C, accommodating self-heating. AEC-Q200 compliant for automotive-grade quality assurance.
Shielded design reduces audible noise and electromagnetic interference. Low DC resistance ensures efficient power handling. Compact dimensions facilitate dense PCB layouts. RoHS compliant, supporting environmentally responsible manufacturing.
Tape and reel packaging enables optimized automated installation.
This power choke coil is suited for a broad range of applications in the industrial, automotive, HVAC, and manufacturing sectors, where robust inductive components are critical for power conditioning and interference suppression. Panasonic's ETQP6M series provides high reliability, efficiency, and stability in demanding operational environments.
Explore the wide selection of advanced inductive components in the Electronics & Electricals category at EnvMart for optimized power solutions compliant with industry standards.
Explore more products in our Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this choke coil is 14 μH with a tolerance of ±20%.
It can handle a maximum DC current of 11.2 A.
This model measures 10.9 mm in length, 6 mm in height, and 6 mm in depth.
The maximum operating temperature is 150°C, and it operates reliably in a range from -40°C to 150°C.
It features a wirewound construction which enhances inductance precision and resistance to magnetic saturation.
Yes, it complies with AEC-Q200 automotive standards, ensuring quality for automotive applications.
The core material is a metal composite, which contributes to its high reliability and performance.
The shielded design minimizes electromagnetic interference, helping to maintain signal integrity.
It has a low DC resistance of 30.8 mΩ, which allows for efficient operation.
It is supplied in tape and reel packaging, suitable for high-volume automated surface mount technology (SMT) assembly.
This choke coil is suitable for automotive power management, industrial machinery power supplies, and electronic assemblies subject to vibrations and thermal stresses.
The maximum self-resonant frequency is 100 kHz.
