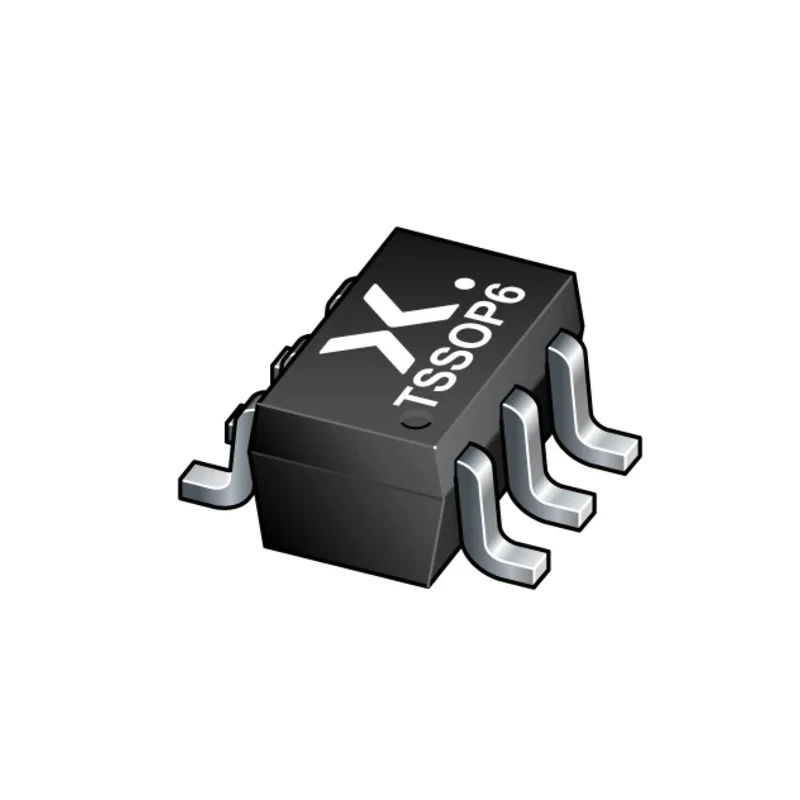

Nexperia 3-Input Multifunction Logic Gate Surface Mount 6-Pin SC-88 with AUP Logic Family 2.3V to 3.6V 74AUP1T97GW-Q100H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 2.2mm |
| Model | 74AUP1T97GW-Q100H |
| Mount Type | Surface |
| Series | 74AUP1T97GW-Q100H |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-88 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | JEDEC |
| Pin Count | 6 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | AUP |
| Logic Function | Multifunction |
| Minimum Supply Voltage | 2.3V |
| Maximum High Level Output Current | -4mA |
| Maximum Propagation Delay Time @ CL | 4.9ns |
| Maximum Low Level Output Current | 4mA |
| Number of Inputs per Gate | 3 |
Key Features
- The device supports multifunction logic including MUX, AND, OR, NAND, NOR, inverter, and buffer functions.
- Operates within a supply voltage range of 2.3 V to 3.6 V.
- Features low power dissipation with CMOS technology and high noise immunity.
- Overvoltage tolerant inputs can handle up to 3.6 V.
- Includes OFF circuitry enabling partial power-down mode for energy efficiency.
- Latch-up performance exceeds 100 mA complying with JESD 78 Class II standards.
- Maximum propagation delay time at load capacitance is 4.9 ns.
- Designed for automotive applications meeting AEC-Q100 standards.
Product Description
Nexperia 74AUP1T97GW-Q100H is a 3-input multifunction logic gate, packaged in a 6-pin SC-88 surface mount type. It belongs to the AUP logic family and operates between 2.3 V and 3.6 V supply voltage, suitable for low power and high noise immunity applications.
This device can be configured via a 3-bit input to perform various logic functions including multiplexer (MUX), AND, OR, NAND, NOR, inverter, and buffer. It is designed with level translating and Schmitt-trigger inputs providing reliable logic transitions and robustness against noise.
The device offers low static power consumption with a maximum ICC of 1.5 µA and includes OFF circuitry to implement partial power-down mode, making it highly energy efficient. Inputs are overvoltage tolerant up to 3.6 V, preventing damage from higher voltage spikes.
It features a maximum propagation delay of 4.9 nanoseconds under typical load conditions, enabling high-speed switching. The latch-up immunity exceeds 100 mA according to JESD 78 Class II testing standards, ensuring device reliability in diverse environments.
The 74AUP1T97GW-Q100H IC meets automotive AEC-Q100 standards for rigorous operating conditions, with a minimum operating temperature of -40°C and maximum up to 125°C. Its compact package dimensions (2.2 mm length, 1.1 mm height) support dense PCB layouts in industrial, automotive, and general electronic systems.
The multifunction logic capability allows flexible use in industrial automation, embedded systems, and signal processing circuits. Surface mount design enables high-volume manufacturing with automated assembly. Low power dissipation and high noise immunity benefit battery-powered and noise-sensitive applications.
Compliance with JEDEC standards ensures quality and interoperability in semiconductor designs.
This component is ideal for engineers requiring configurable logic gates with reliable automotive-grade robustness and efficient power management. Explore more components in the Logic Gate category at EnvMart for diverse semiconductor needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Nexperia 74AUP1T97GW-Q100H operates within a supply voltage range of 2.3 V to 3.6 V.
This model supports multifunction logic including MUX, AND, OR, NAND, NOR, inverter, and buffer functions.
The maximum propagation delay time at load capacitance is 4.9 nanoseconds.
The device has a length of 2.2 mm and a height of 1.1 mm.
The maximum operating temperature is 125°C.
It meets the AEC-Q100 automotive standard, ensuring reliability in automotive applications.
This model features three inputs per gate.
The maximum low level output current is 4 mA.
Yes, it includes OFF circuitry that enables a partial power-down mode for energy efficiency.
The inputs are overvoltage tolerant and can handle up to 3.6 V, preventing damage from higher voltage spikes.
The maximum high level output current is -4 mA.
The AUP logic family is characterized by low power dissipation, high noise immunity, and reliable logic transitions.
