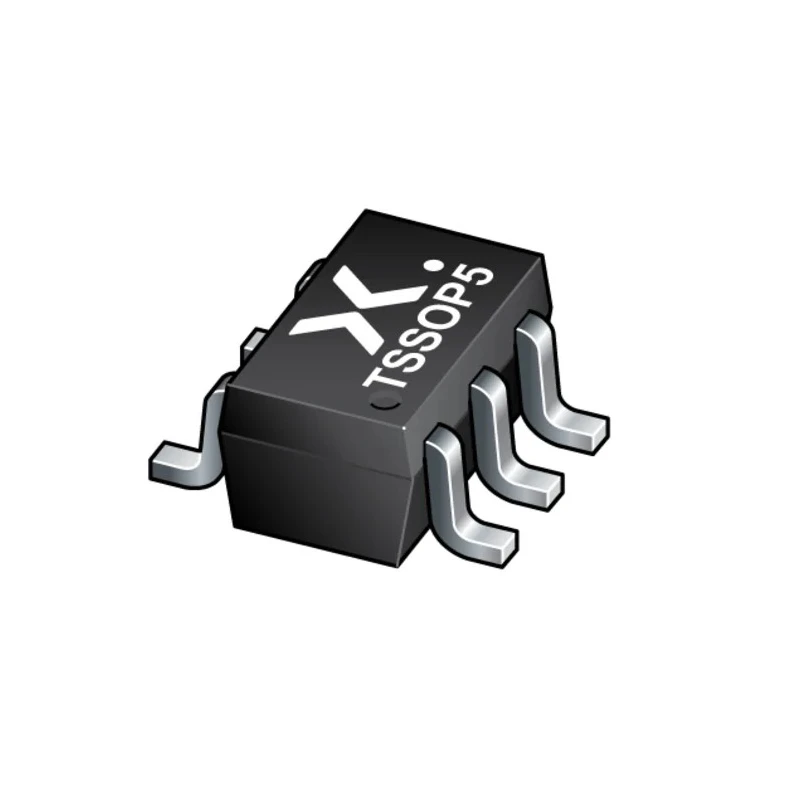

Nexperia 2-Input AND Schmitt Trigger Input Logic Gate, 5-Pin TSSOP-5 74AUP1T08GW-Q100H

Nexperia 74AUP1T08GW-Q100H is a low-power 2-input AND gate with Schmitt trigger input, housed in a 5-pin TSSOP package. It operates within a supply voltage range of 2.3 V to 3.6 V, suitable for logic level translation in electronic circuits.

The IC exhibits very low static and dynamic power consumption, with an ICC of maximum 1.5 μA, and provides robust performance with latch-up immunity exceeding 100 mA according to JESD 78 Class II standards. This makes it suitable for automotive and industrial applications requiring dependable operation over extended temperature ranges from -40°C to 125°C.

With a fast maximum propagation delay of 4.8 ns at a given load capacitance, the device supports high-speed logic operations. The Schmitt trigger input ensures noise immunity and improved signal integrity in noisy environments.

The compact TSSOP-5 package measures 2.25 mm in length and 1.1 mm in height, facilitating minimal PCB space usage in dense electronic designs. Operates with a supply voltage between 2.3 V and 3.6 V. Provides a 2-input AND logic function with Schmitt trigger input.

Automotive compliant with AEC-Q100 specification. Latches-up immunity exceeds 100 mA per JESD 78 Class II. Low static power consumption of 1.5 μA maximum ICC. Operating temperature range from -40°C to 125°C. Compact 5-pin TSSOP package with length 2.25 mm and height 1.1 mm.

This logic gate IC is widely used in automotive electronics, consumer electronics, industrial control systems, and embedded system design requiring reliable and efficient logic functions. The device is RoHS compliant and suitable for surface mount assembly on PCBs.
