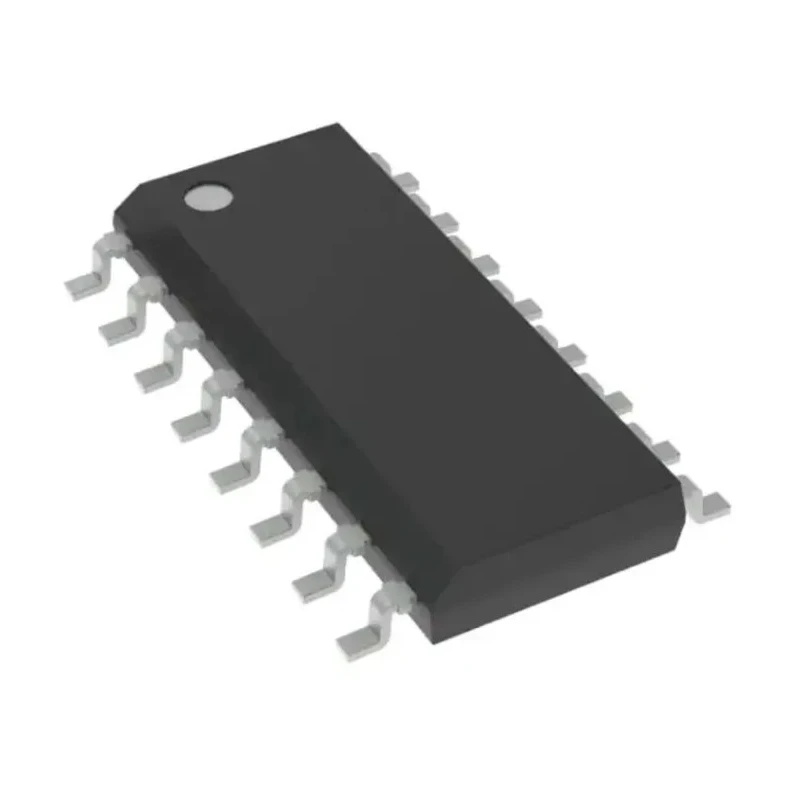

STMicroelectronics Surface Shift Register DMOS SO-16, 16-Pin STPIC6C595MTR

STMicroelectronics STPIC6C595MTR is a highly reliable surface mount 16-pin SO-16 package DMOS logic shift register, ideal for electronic systems requiring moderate load power management. It integrates an 8-bit serial-in, parallel-out shift register feeding an 8-bit D-type storage register, delivering efficient data shift and storage functionality.

The device features a low Rdson of 4 ohms typical for its DMOS outputs, capable of handling currents up to 100 mA each, with a robust overall current limit of 250 mA and avalanche energy rating of 30 mJ. An integrated voltage clamp safeguards the outputs during inductive transient conditions.

Electrical specifications include a supply voltage range between 4.5 V and 5.5 V, enabling operation in various medium voltage applications with a maximum operating temperature tolerance up to 125°C, making it suitable for industrial and commercial electronic equipment.

The compact SO-16 (Small Outline, 16 pins) surface mount package measures 10 mm in length, 4 mm in width, and 1.75 mm in height, making it compatible with modern PCB layouts demanding space efficiency. The product complies with RoHS environmental standards.

Typical use cases encompass industrial automation electronics, digital control and interface circuits, embedded system logic interfacing, and other moderate load power shifting applications. This device supports cascading for expanded bit-width shift register implementations.

8-bit serial-in, parallel-out Shift Register with D-type storage. Low output Rdson with high current capacity DMOS outputs. Integrated voltage clamp for inductive transient protection. Wide operating voltage and temperature range.

Compact SO-16 package suitable for surface mounting. RoHS compliant for environmental safety. Explore more semiconductor components and logic IC solutions in the STMicroelectronics range available at EnvMart.
