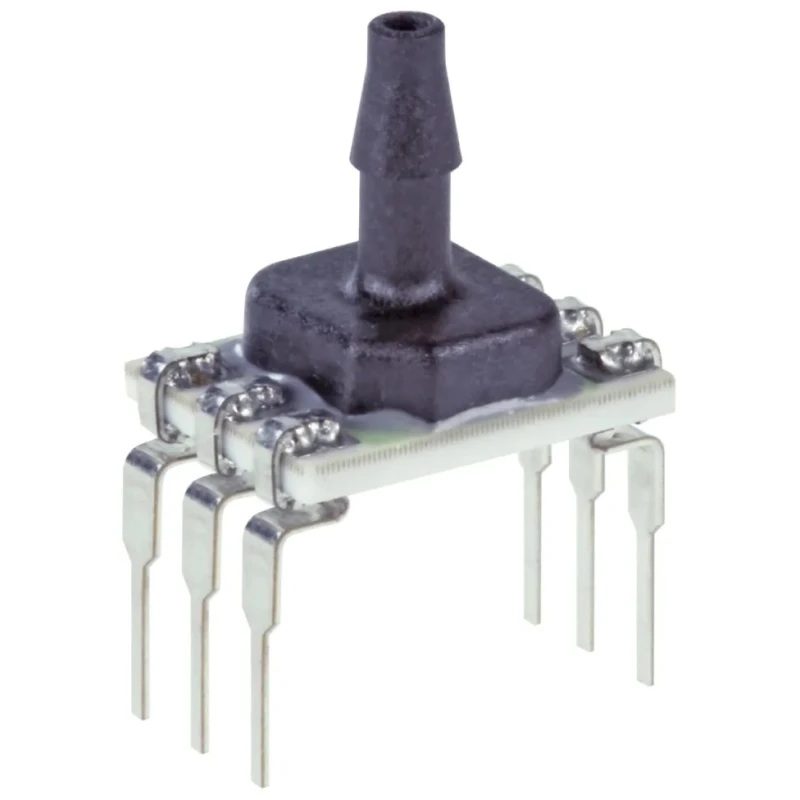

Honeywell Technologies Piezoresistive Pressure Sensor Board 6 Pin DIP 0-150 psi ±0.25% Accuracy ABPDANV150PGAA5
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 150 psi |
| Height | 3.63mm |
| Length | 7.3mm |
| Model | ABPDANV150PGAA5 |
| Sensor Type | Piezoresistive Pressure Sensor |
| Width | 6.3mm |
| Mount Type | Board |
| Series | ABP |
| Maximum Operating Temperature | +85°C |
| Port Type | Single Axial Barbed |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | BPA Free, LFGB, NSF-169 |
| Pin Count | 6 |
| Automotive Standard | ISO 9001 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | -0.3V |
| Minimum Operating Pressure | 0psi |
| Maximum Overload Pressure | 250psi |
Key Features
- Offers ±0.25% full scale span accuracy for precise readings.
- Operates from a single 5 V supply voltage simplifying power design.
- Maximum operating temperature is +85°C, with a temperature range from -40°C to +85°C.
- Single axial barbed port allows easy integration for gas or liquid media.
- Calibrated and temperature compensated for stable output under varying conditions.
- Outputs ratiometric analogue or 12-bit digital signals suitable for I2C or SPI interfaces.
- Overpressure tolerance up to 250 psi protects sensor from damage.
- Manufactured to ISO 9001 quality standards ensuring reliability.
Product Description
Honeywell ABPDANV150PGAA5 is a piezoresistive gauge pressure sensor board designed for accurate measurement of pressure relative to ambient conditions. This 6-pin DIP sensor features a maximum operating pressure of 150 psi and provides an accuracy of ±0.25% full scale span. It operates from a low-voltage single 5 V supply and offers both analogue and 12-bit digital output options compatible with I2C or SPI communication protocols.
The sensor is calibrated and temperature compensated to maintain consistent output performance from -40°C to +85°C, with an ambient compensated range between 0°C to 50°C. Its single axial barbed port supports liquid and gas media measurements, enhanced by an optional silicone gel coating for protection against condensation or non-corrosive liquids.
Robust construction meets ISO 9001 standards, making this sensor ideal for industrial and medical applications including CPAP and ventilator pressure monitoring, pneumatic valve positioning, blood analysis, HVAC transmitter units, process gas monitoring, and household appliances like coffee makers and washing machines.
Designed to withstand an overload pressure of up to 250 psi, the ABPDANV150PGAA5 sensor ensures reliable operation and long-term stability, reducing the need for frequent recalibration in demanding environments.
±0.25% full-scale span accuracy for precise measurements. Calibrated and temperature compensated output reduces drift. Available ratiometric analogue and 12-bit digital outputs. Single 5 V supply simplifies integration into existing systems.
Compact board-mounted DIP package for easy PCB integration. Maximum operating temperature of +85°C allows for diverse application environments. Protected against overpressure events with 250 psi maximum overload rating. Manufactured under stringent ISO 9001 quality standards.
Silicone gel coating option for protection against moisture and liquids. Applicable to medical, HVAC, pneumatic control, and consumer appliance applications.
This Honeywell pressure sensor board is available as a reliable component for industrial, laboratory, medical, and HVAC systems, facilitating precise pressure measurements essential for operational efficiency. Explore our extensive range of sensors and components at EnvMart to find complementary parts and solutions.
Explore more products in our Pressure Sensor ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor offers an accuracy of ±0.25% full scale span, ensuring precise pressure measurements.
The maximum operating pressure of this pressure sensor is 150 psi.
It provides both ratiometric analogue and 12-bit digital output options, compatible with I2C or SPI communication protocols.
The sensor operates from a single 5 V supply voltage, simplifying power design.
It operates within a temperature range of -40°C to +85°C, with an ambient compensated range between 0°C to 50°C.
The sensor features a single axial barbed port that allows for easy integration for both gas and liquid media measurements.
The dimensions of the sensor are 7.3 mm in length, 6.3 mm in width, and 3.63 mm in height.
The maximum overload pressure is rated at 250 psi, providing protection against pressure spikes.
Yes, the sensor is calibrated and temperature compensated to maintain stable output under varying conditions.
This model is designed for board mounting, facilitating easy integration into PCBs.
It is manufactured under ISO 9001 quality standards and is also BPA Free, LFGB, and NSF-169 compliant.
This sensor is suitable for various applications including medical devices, HVAC systems, pneumatic control, and consumer appliances.
