Eaton 32A Centred Tag Fuse NH000 500V AC High Rupture Capacity, Dual Indication NH000

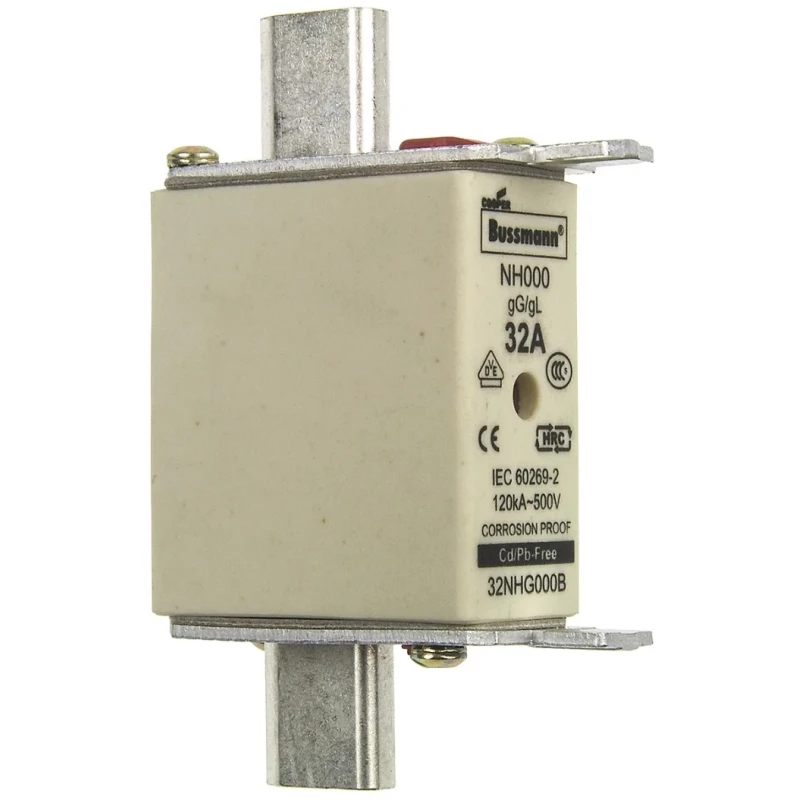

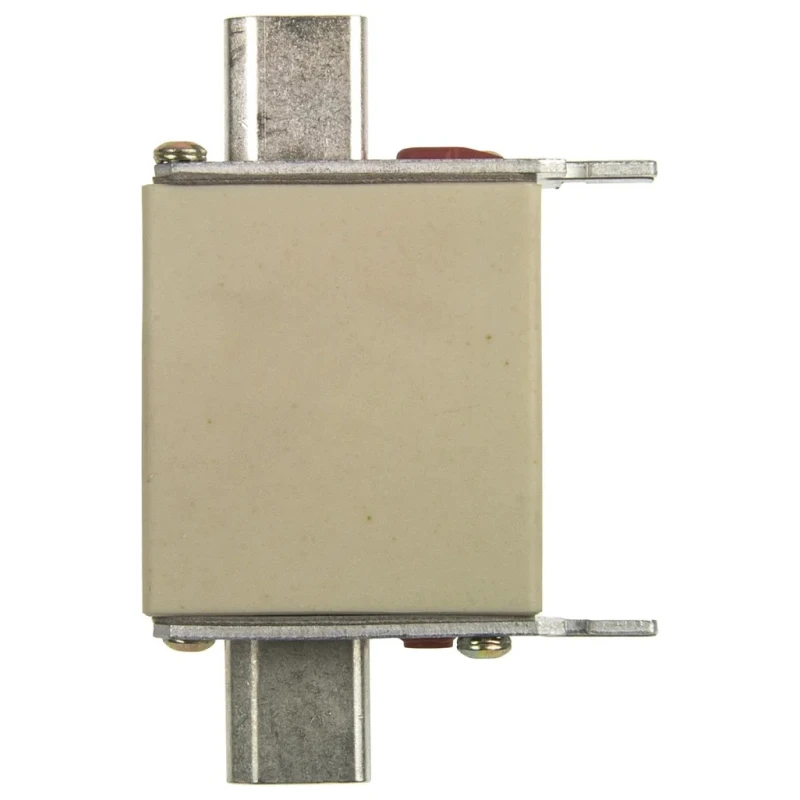

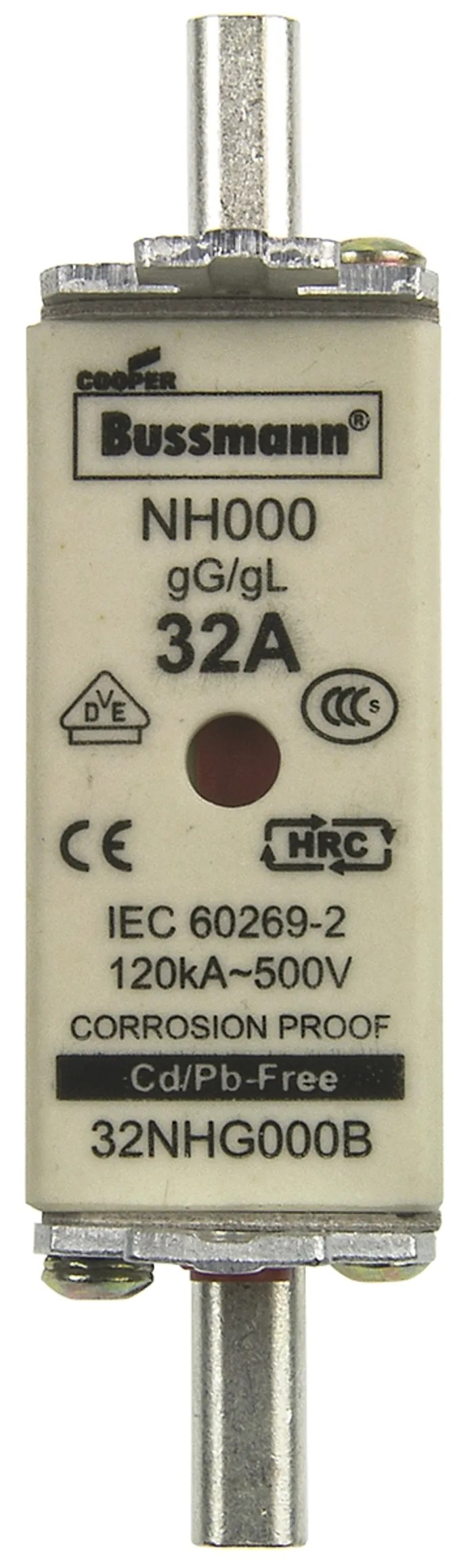

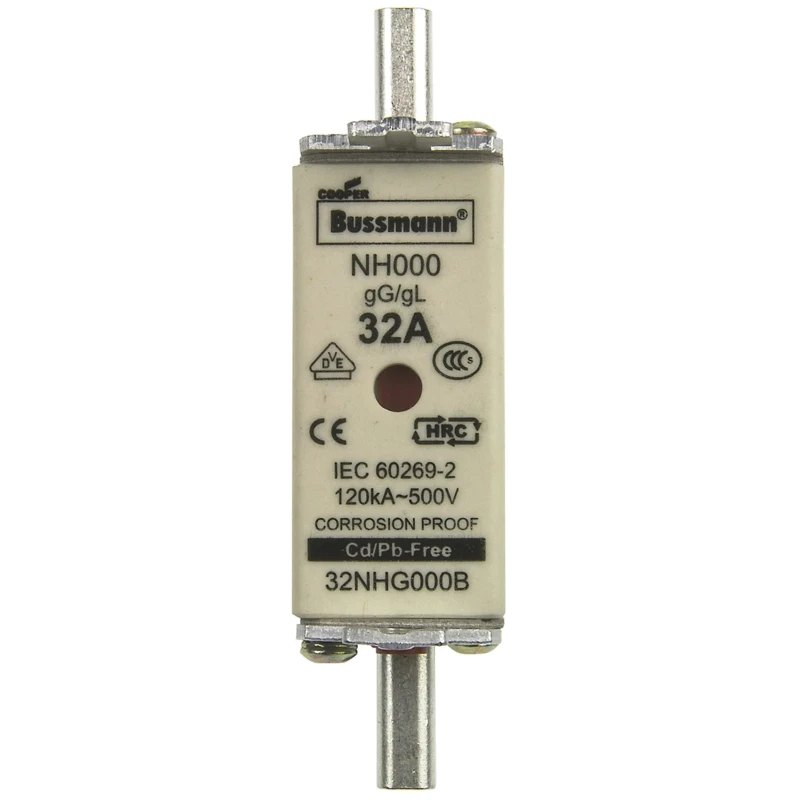

Eaton NH000 Centred Tag Fuse, model 32NHG000B, is a 32A rated electrical fuse designed for 500V AC applications. This fuse provides reliable protection for electrical circuits in both domestic consumer units and low-voltage industrial environments by interrupting overcurrent conditions such as short circuits and overloads.

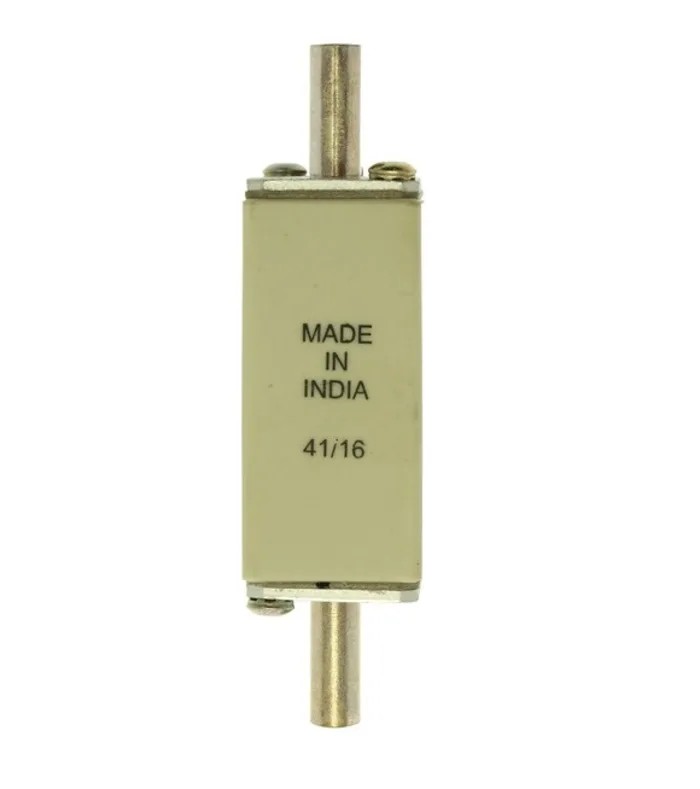

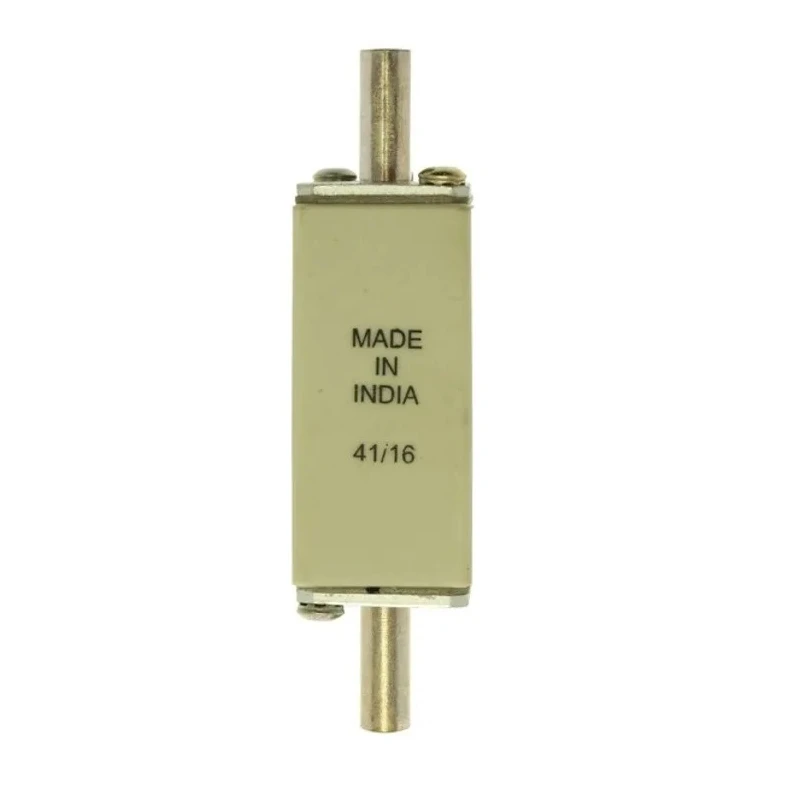

Manufactured in India under Bussman series, this fuse features a high breaking capacity of 120kA to safely handle sudden surges without damage. The fuse is housed in a flame-resistant steatite insulator body, which prevents ignition and ensures safe operation within electrical panels.

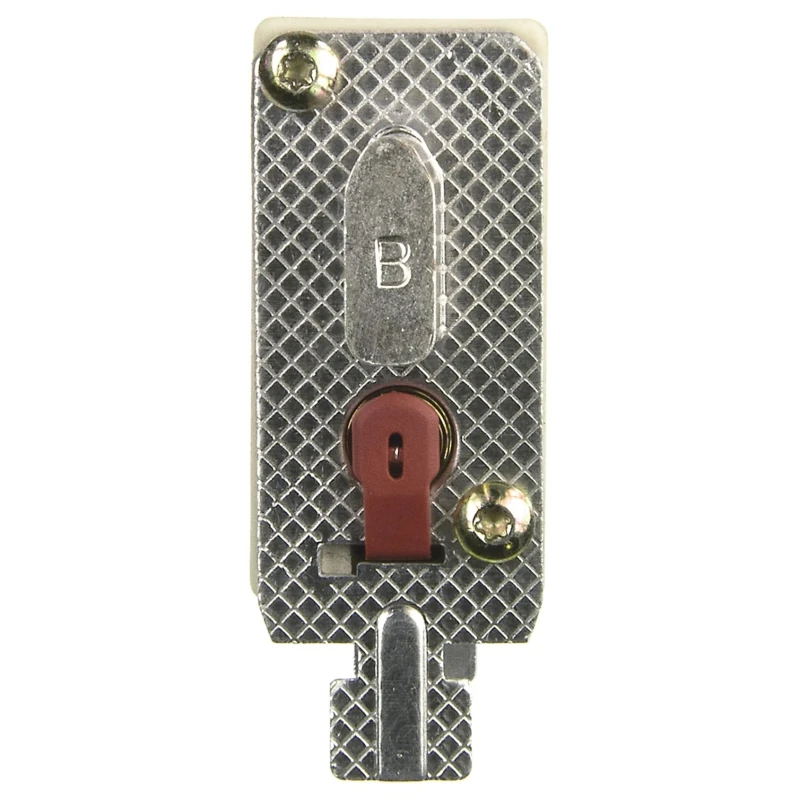

The central blade tags on both ends are made of silver-plated brass, providing excellent conductivity and easy installation into open fuse bases. The dual indication system simplifies monitoring the fuse condition for fast maintenance and troubleshooting.

With standardized dimensions - length 54mm, overall length 78.5mm, height 41mm, width 21mm, and 6mm tag width - this NH000 size fuse complies with IEC 60269, VDE 0636, DIN 43620 standards to assure compatibility and safety.

This fuse is intended for single use and must be replaced after blowing as part of routine electrical safety maintenance. Rated current 32A and voltage 500V AC for general purpose circuit protection. High rupture capacity manages power surges up to 120kA.

Flame-resistant steatite insulator housing enhances electrical safety. Dual indication system facilitates condition monitoring. Silver plated brass blade tags for secure connections. Standards compliant: IEC 60269, VDE 0636, DIN 43620.

This Eaton fuse is ideal for industrial, commercial, and residential electrical systems requiring reliable, high performance circuit protection. Explore more Eaton Tag Fuses and electrical protection components on EnvMart.
