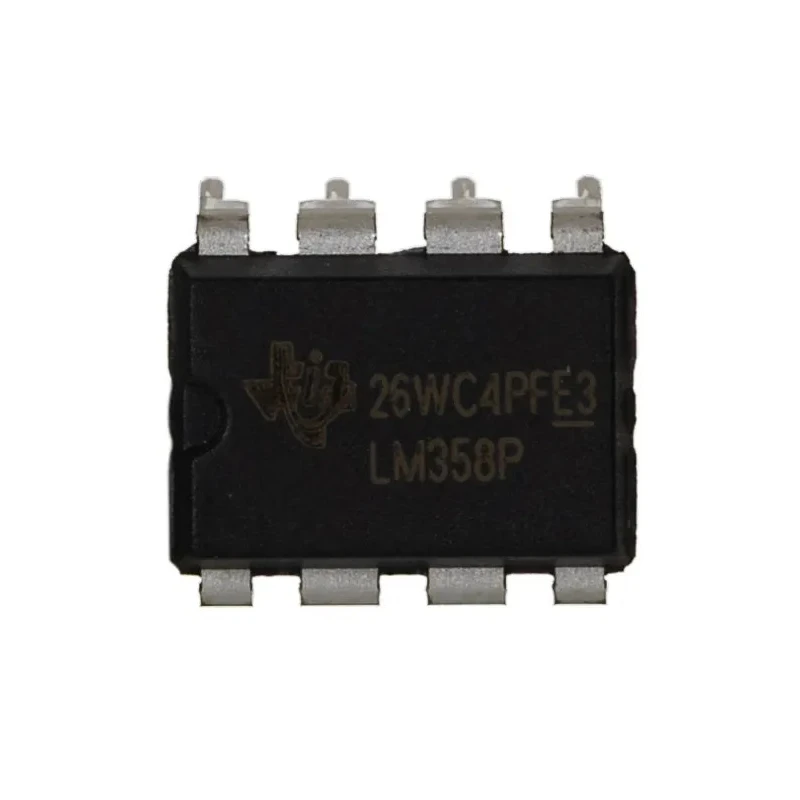

Texas Instruments Operational Amplifier 1.2 MHz 8-Pin 30V PDIP LM358P

Texas Instruments LM358P is a dual operational amplifier featuring an 8-pin PDIP package with a gain bandwidth product of 1.2 MHz, designed for robust analog signal amplification in industrial and commercial applications.

This operational amplifier supports a minimum supply voltage of 3V and a maximum of 30V, operating reliably across temperatures from 0°C to 70°C, making it suitable for various environments.

Its key electrical characteristics include a low input bias current of -250 nA, a low input offset voltage of 7 mV, and a moderate slew rate of 0.3 V/μs. The device provides an output current up to -30 mA, enabling it to drive small to medium loads efficiently.

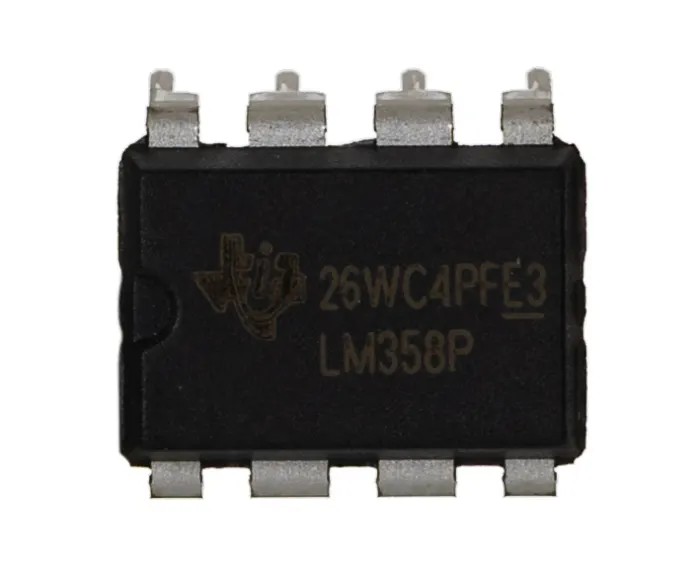

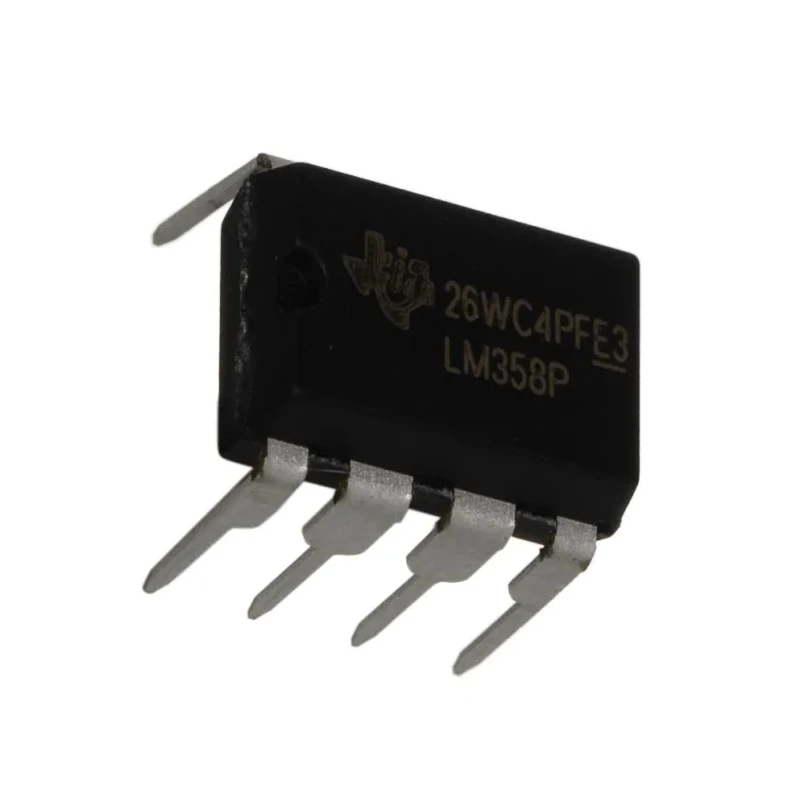

Encased in a through-hole PDIP package, the LM358P measures 10.16 mm in length, 6.6 mm in width, and 5.08 mm in height, facilitating easy mounting and integration on printed circuit boards.

This dual operational amplifier is RoHS compliant, manufactured in Mexico, and part of the reputable LM358 series, widely used in power supplies, motor control systems (including AC induction, brushed DC, brushless DC, and stepper motors), multi-function printers, and PC motherboards.

Dual channel operational amplifier with 8 pins in PDIP package. Gain bandwidth product of 1.2 MHz for reliable frequency response. Wide operating voltage range from 3V to 30V. Low input bias current and offset voltage for precision applications.

Slew rate of 0.3 V/μs suitable for general purpose amplifying tasks. Compact dimensions ensure versatile PCB space utilization. RoHS certified for environmental compliance. Common-mode input voltage range includes ground for near-ground signal sensing.

Output current capability up to -30 mA. Ideal for use in industrial, laboratory, automotive, and consumer electronics applications.

Suitable for diverse industrial and laboratory environments, the LM358P operational amplifier supports tasks from signal conditioning to motor control. Explore more electronic components and Operational Amplifiers within the Electronics & Electricals category at EnvMart for comprehensive solutions.
