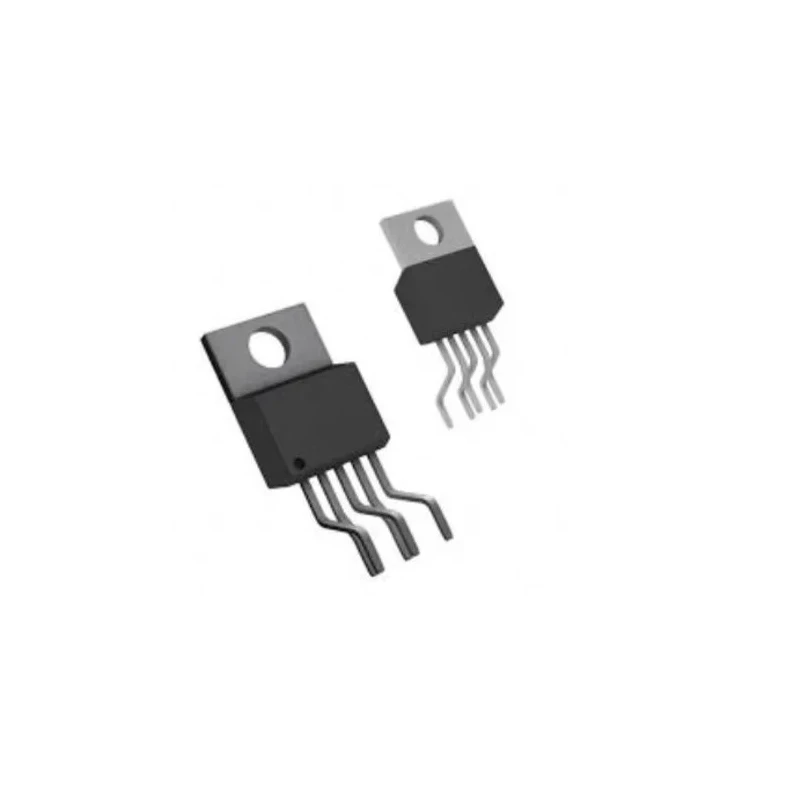

Texas Instruments Operational Amplifier 5.5 MHz 5-Pin 60V TO-220 LM675T/NOPB
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 10.16mm |
| Model | LM675T/NOPB |
| Width | 8.64mm |
| Mount Type | Through Hole |
| Series | LM675 |
| Output Current | 3A |
| Maximum Operating Temperature | 70°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Minimum Supply Voltage | 60V |
| GBP - Gain Bandwidth Product | 5.5MHz |
| Input Bias Current | 2 μA |
| Vos - Input Offset Voltage | 10 mV |
| Slew Rate | 8V/μs |
| Input Offset Current | 500 nA |
Key Features
- Operates at a maximum supply voltage of 60V providing robust performance.
- Features a slew rate of 8 V/μs for fast response times.
- Input offset voltage of 10 mV ensures stable operation.
- Capable of delivering an output current up to 3A.
- Designed for through hole mount applications with a compact TO-220 package.
- Operating temperature range from 0°C to 70°C accommodates various environmental conditions.
- RoHS compliant ensuring reduced environmental impact.
- Manufactured in Malaysia with high-quality standards.
Product Description
Texas Instruments LM675T/NOPB is a high-performance operational amplifier featuring a 5.5 MHz gain bandwidth product (GBP) and an output current capability of 3A, designed in a through hole TO-220 5-pin package. It operates with a maximum supply voltage of 60V, making it suitable for demanding industrial, electronic, and power amplifier applications where high current drive is required.
The device ensures precision operation with an input offset voltage of 10 mV and a low input bias current of 2 μA, and input offset current of 500 nA, which enhances signal integrity and reduces error in analog circuitry. With a slew rate of 8 V/μs and an operating temperature range from 0°C to 70°C, the LM675T/NOPB is reliable across a variety of environmental conditions.
The compact TO-220 package dimensions (length 10.16 mm, width 8.64 mm, height 4.57 mm) enable effective heat dissipation and ease of mounting on printed circuit boards by through hole method. This device is RoHS compliant, contributing to environmentally responsible manufacturing.
Operates with a gain bandwidth product of 5.5 MHz for wide frequency applications. Output current capability of up to 3A fits power amplifier requirements. TO-220 package type facilitates thermal management and mounting.
Voltage supply range supports up to 60V operation. Input offset voltage and current parameters ensure precision in analog operations. RoHS certification indicates compliance with environmental standards. Suitable for industrial and electronic circuit applications requiring robust amplifier solutions.
The LM675 series operational amplifiers by Texas Instruments are widely used in power electronics, industrial controls, audio amplification, and other applications demanding high current output and stable analog performance. This model provides a balanced solution of speed, power, and compactness for modern electronic design needs.
Explore more Operational Amplifiers and electronic components in the Electronics & Electricals category on EnvMart for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LM675T/NOPB has a gain bandwidth product of 5.5 MHz, making it suitable for wide frequency applications.
This model operates with a maximum supply voltage of 60V, allowing it to handle demanding applications.
It is capable of delivering an output current up to 3A, which is essential for power amplifier requirements.
The operating temperature range for the LM675T/NOPB is from 0°C to 70°C, accommodating various environmental conditions.
The dimensions of the TO-220 package are 10.16 mm in length, 8.64 mm in width, and 4.57 mm in height.
The LM675T/NOPB features a slew rate of 8 V/μs, which contributes to its fast response times.
This model has an input offset voltage of 10 mV, ensuring stable operation in analog circuits.
It is designed for through hole mounting, which facilitates easy installation on printed circuit boards.
The input bias current for this operational amplifier is 2 μA, which enhances signal integrity.
Yes, this operational amplifier is RoHS compliant, indicating that it meets environmental standards for reduced impact.
The input offset current for this model is 500 nA, which helps to reduce error in analog circuitry.
The LM675T/NOPB is manufactured in Malaysia, adhering to high-quality standards.
