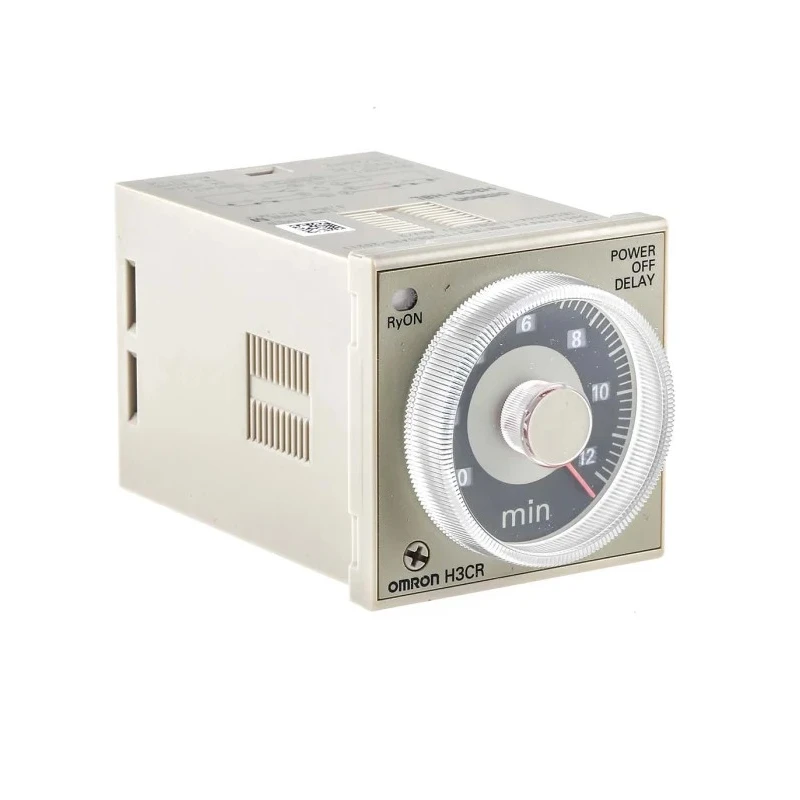

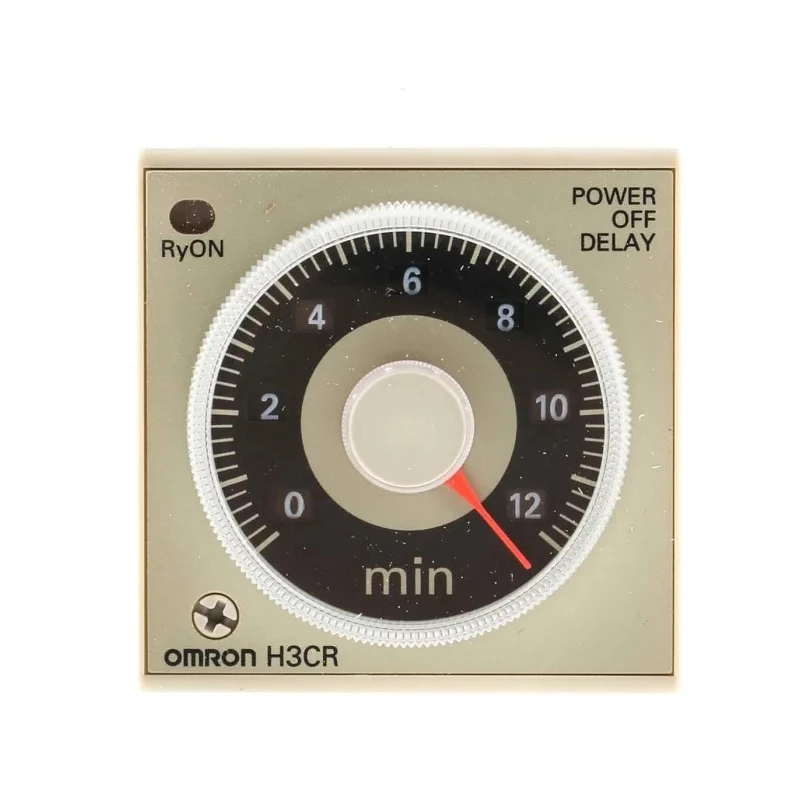

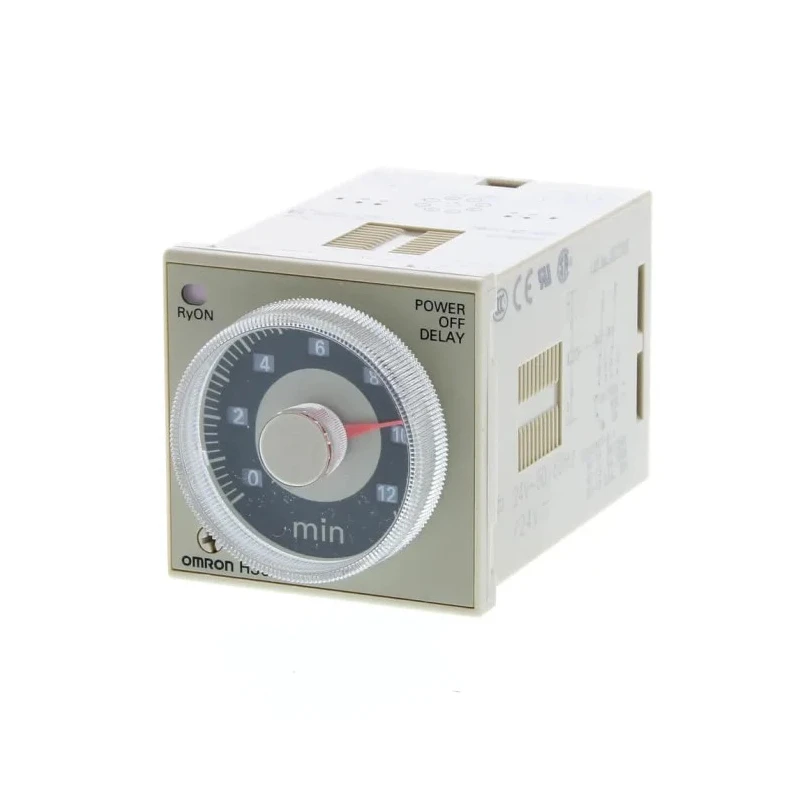

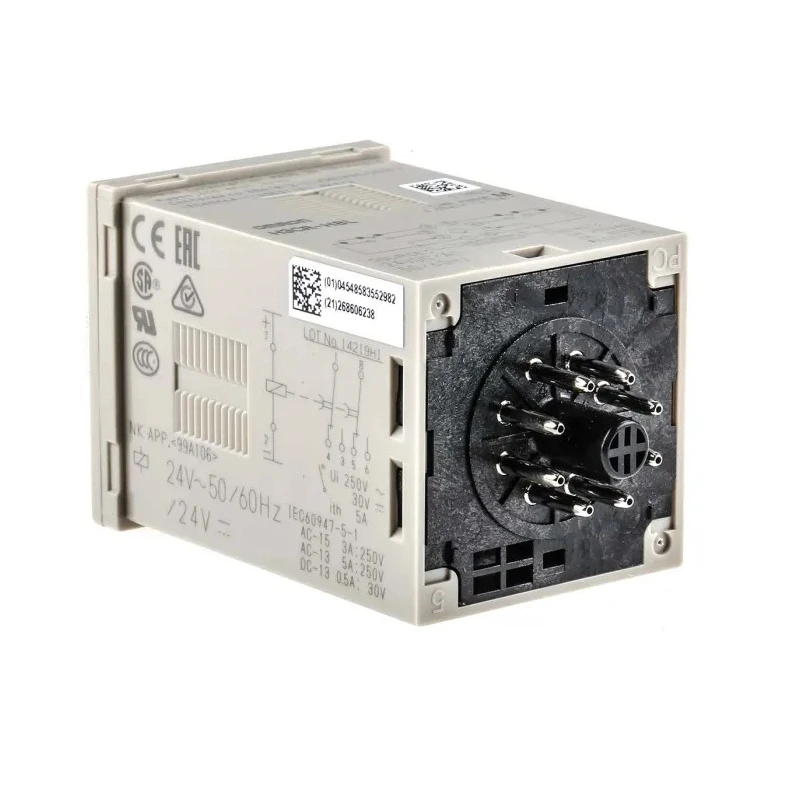

Omron DIN Rail, Panel Mount Timer Relay 2-Contact, DPDT Switch, 24 V AC/DC, 0.05 to 12 Min Time Range, OFF Delay H3CR

Omron H3CR-H8L 24VAC/DC M DIN Rail and Panel Mount Timer Relay is a precision device designed for controlled timing applications in industrial automation, mining, food and beverage production, and other commercial environments. This timer relay features a 2-contact DPDT switch configuration for reliable power switching and supports a supply voltage of 24 volts AC or DC. Its adjustable time delay ranges from 0.05 to 12 minutes with a highly accurate OFF Delay function, ensuring high precision timing control.

The device offers multiple mounting options including DIN rail installation and panel mounting, with compact dimensions of 93 mm in height and 48 mm in width and length, making it ideal for integration into existing electrical control panels. Rated with an IP40 protection level, it resists intrusion from tools or wires larger than 2.5 mm, enhancing durability in demanding environments.

Designed to withstand harsh industrial conditions, the relay has a mechanical service life of up to 10 million operations and an electrical life of 100,000 cycles. It provides robust contact current ratings of 3 amperes and complies with recognized safety and quality standards such as EN, CSA, and UL, affirming its reliability and safety in automation applications.

This timer relay is ideal for a range of industrial uses including automated processes, manufacturing controls, and equipment protection. Its compact, lightweight form factor further facilitates easy installation and maintenance. The relay’s built-in protection features include conditional short-circuit protection and resistance to shock and vibration, making it a dependable choice for environments exposed to moving machinery or electrical surges.

The timer relay supports a wide supply voltage range of 24 V AC/DC ensuring versatility in control circuits. Advanced OFF Delay function with a time range adjustable from 0.05 to 12 minutes. Compact dimensions measuring 93 mm height, 48 mm width, and 48 mm length for easy DIN rail or panel mounting.

Durable construction with IP40 protection rating shields against tools and wires larger than 2.5 mm diameter. Designed to operate reliably within temperature extremes from -10°C to 55°C. Robust contact current rating of 3 A with guaranteed mechanical life of 10 million operations.

Compact and lightweight design weighing approximately 50 grams supports efficient installation. Conforms to multiple international standards including EN, CSA, and UL approvals. Explore Omron products and other Timer Relays at EnvMart for comprehensive industrial electrical solutions.
