| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.3mm |
| Length | 2.8mm |
| Model | PMEG6010CEGWX |
| Width | 1.7mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-123 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Forward Current | IF ≤ 1 A |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 9A |
| Maximum Forward Voltage Vf | 660mV |
| Nexperia 60 V 1 A Diode Schottky 2-Pin SOD-123 PMEG6010CEH,115Brand | Nexperia |

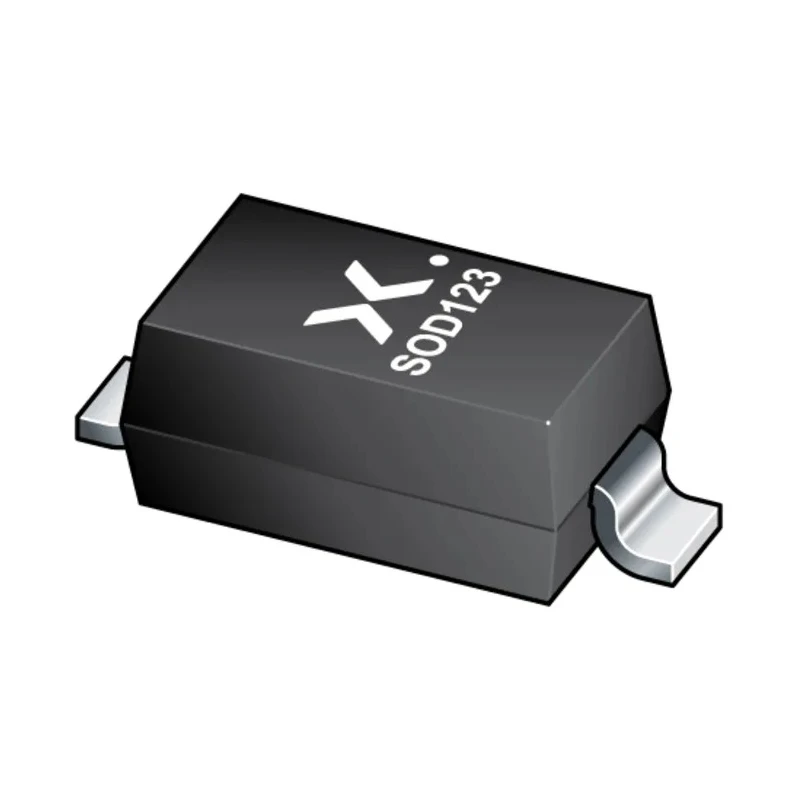

Nexperia PMEG6010CEGWX is a 60 V, 1 A Low VF MEGA Schottky barrier diode rectifier designed for efficient low-voltage rectification in electronic circuits. It features a compact 2-pin SOD-123 plastic surface-mount device package that offers an integrated guard ring for stress protection and improved reliability.
The diode supports a maximum continuous forward current of 1 ampere with a low typical forward voltage of 570 millivolts, enabling high efficiency and minimal power loss. It can withstand reverse voltages up to 60 volts and handles peak non-repetitive surge currents up to 9 amperes.
Operating over a wide temperature range from -55°C to +150°C, it is suitable for harsh environments and automotive applications, being qualified to AEC-Q101 standards. The low typical reverse current of 11 microamperes further enhances its efficiency in low power consumption circuits.
This diode finds essential applications in high efficiency DC-DC converters, switch mode power supplies, reverse polarity protection circuits, and automotive electronics requiring robust and compact rectification solutions.
Low forward voltage drop of typically 570 mV reduces conduction losses. Capable of continuous forward current up to 1 A with high surge current tolerance. Small SOD-123 package suits space-constrained PCB designs. AEC-Q101 automotive qualification ensures suitability for vehicle electronics.
Wide operating temperature range from -55°C to 150°C enhances reliability. Integrated guard ring protects against electrical stress and voltage spikes. Low reverse leakage current minimizes standby power consumption. Robust reverse voltage blocking at 60 V for various electronic applications.
Ideal for industrial, automotive, telecommunications, and consumer electronics sectors, the PMEG6010CEGWX facilitates efficient power management and protection. Explore the range of Nexperia Schottky Diodes at EnvMart for reliable electronic component sourcing.
