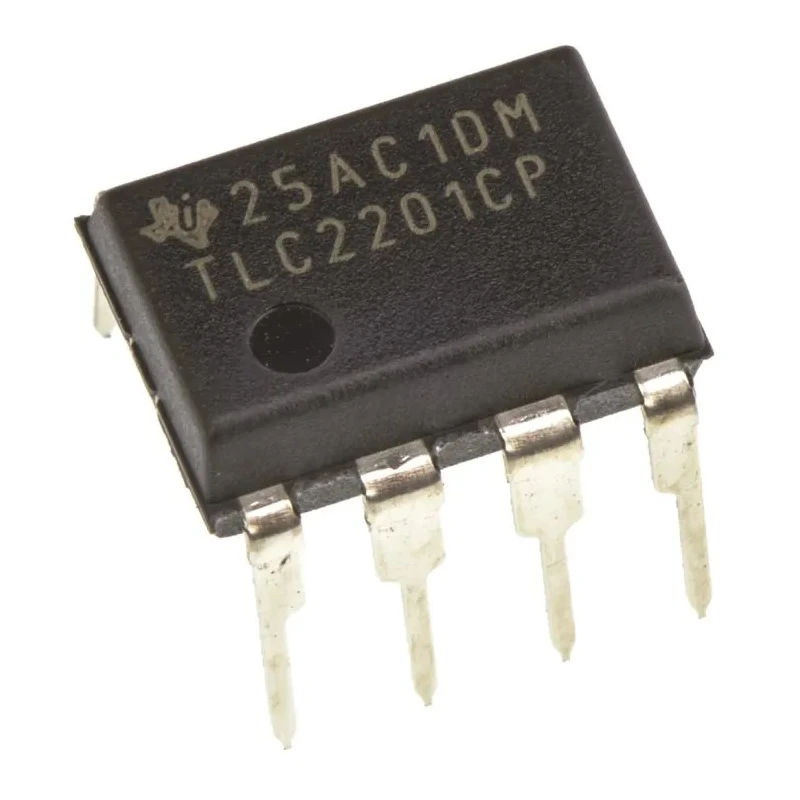

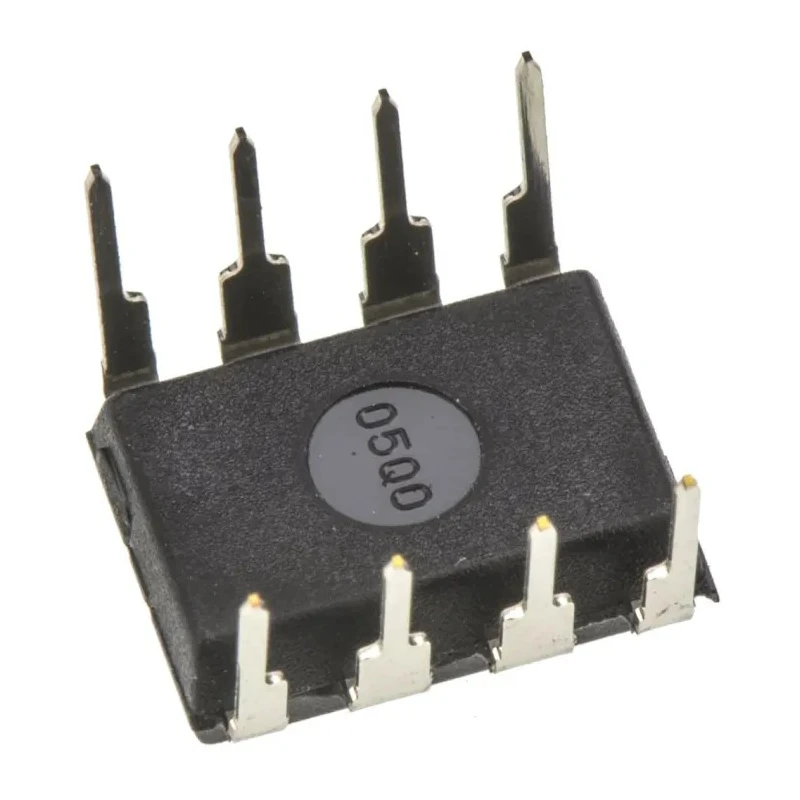

Texas Instruments Precision LinCMOS Operational Amplifier, 1.8 MHz Gain Bandwidth, 8-Pin PDIP, 5-8V TTL Compatible TLC2201CP

Texas Instruments TLC2201CP is a high-precision LinCMOS operational amplifier designed for demanding electronic applications requiring high gain bandwidth and low noise. The device is housed in an 8-pin PDIP package optimized for through-hole mountings, such as prototype development and production PCBs.

This operational amplifier features a gain bandwidth product of 1.8 MHz which enables precise amplification of analog signals, suitable for instrumentation, sensor conditioning, audio, and industrial control circuits. Its input bias current of 100 pA and low input offset voltage of 600 μV contribute to exceptional accuracy and stability.

The amplifier operates efficiently on a minimum supply voltage of 5 V and a maximum of 8 V, facilitating compatibility across a range of power supplies. Its slew rate of 2.5 V/μs enhances dynamic response, suitable for fast-changing signals.

Engineered to function reliably from 0°C up to 70°C, the TLC2201CP is a choice component for industrial and commercial electronics applications.

Dimensions of 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height make the unit compact and ideal for space-constrained circuit board layouts. The RoHS compliance guarantees environmentally friendly manufacturing and disposal practices.

Single-channel precision LinCMOS op amp with excellent noise and distortion characteristics. Compatible with through-hole PCB mounting using PDIP package. Capable of delivering output currents up to 50 mA suitable for moderate load driving.

Broad operating temperature range tailored for industrial applications. Low power consumption with a supply voltage range between 5 V and 8 V. Meets RoHS standards for environmental safety and sustainability. Compact form factor facilitates integration in diverse electronic designs.

This component is widely used in industrial machines, laboratory instruments, audio equipment, and control systems. Texas Instruments' TLC2201CP operational amplifier offers reliability and precision essential for engineering development and manufacturing.
