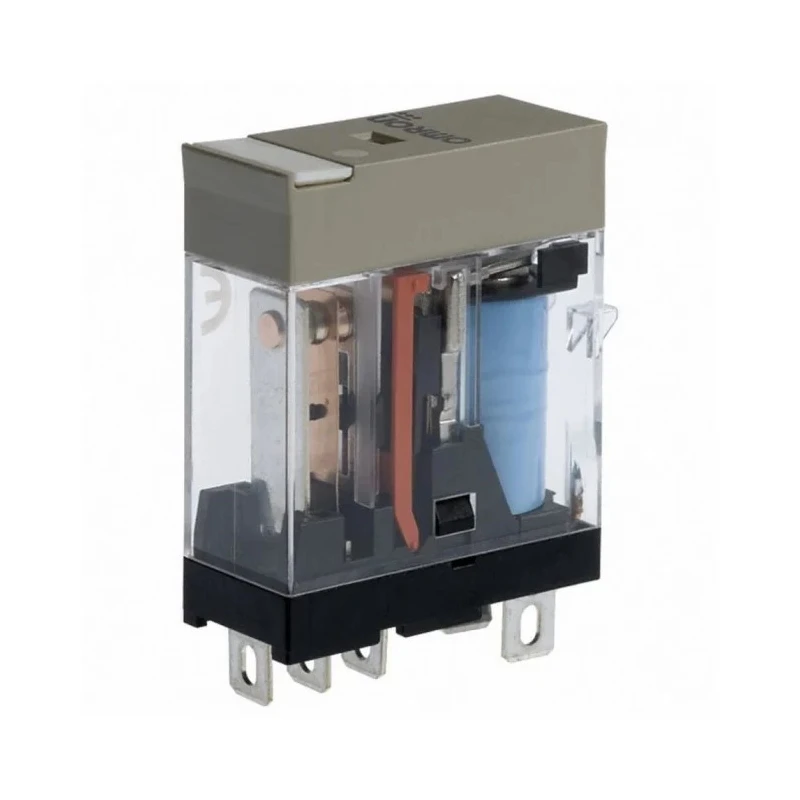

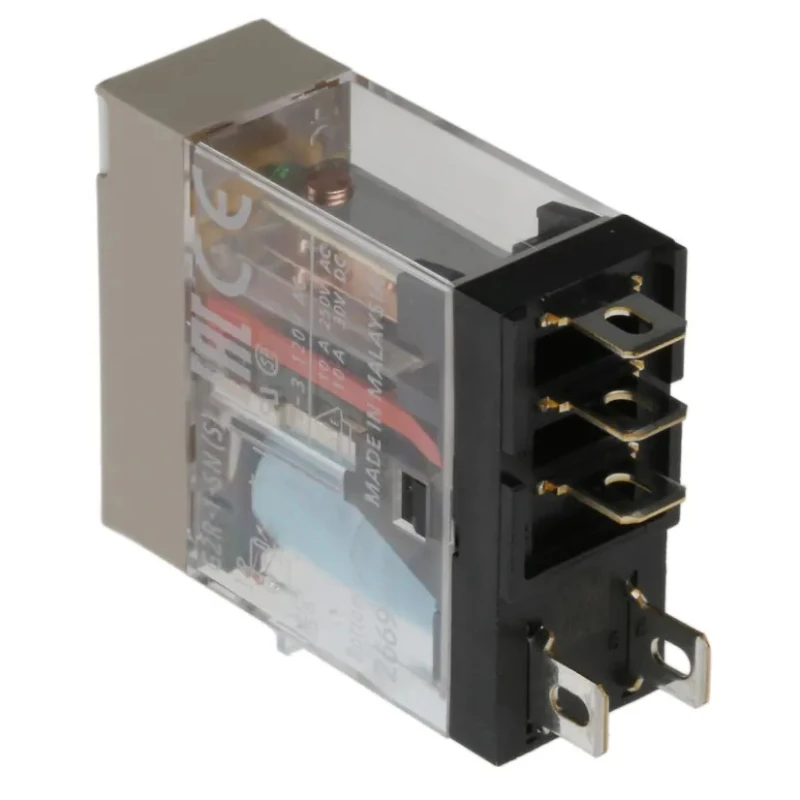

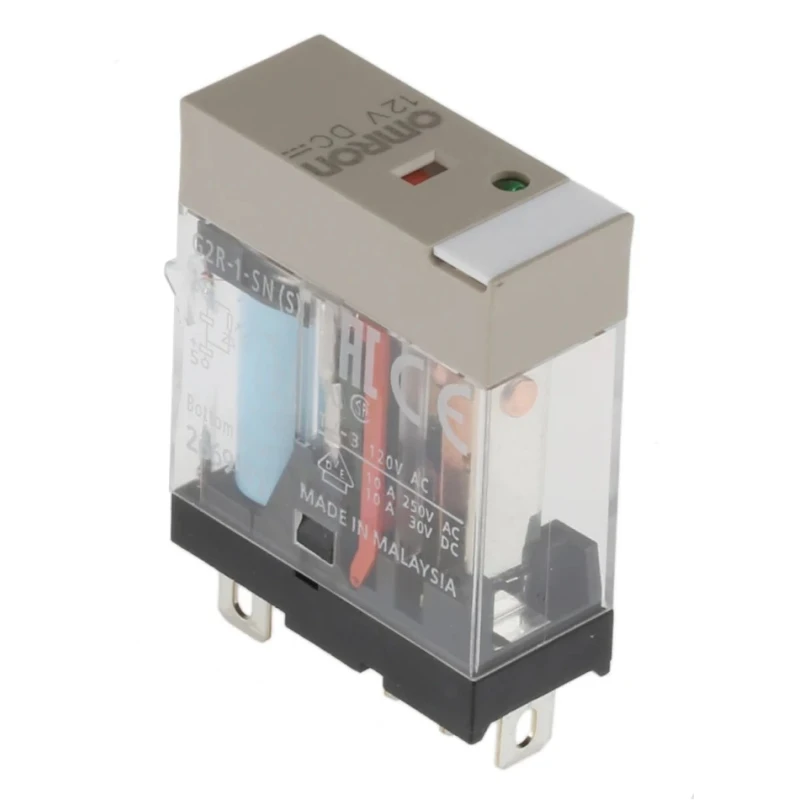

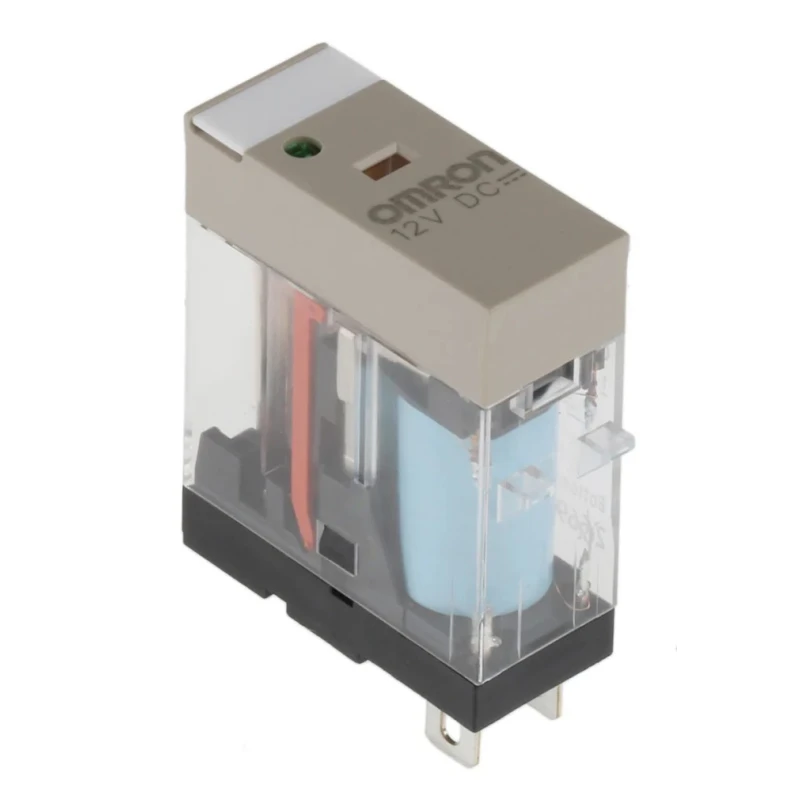

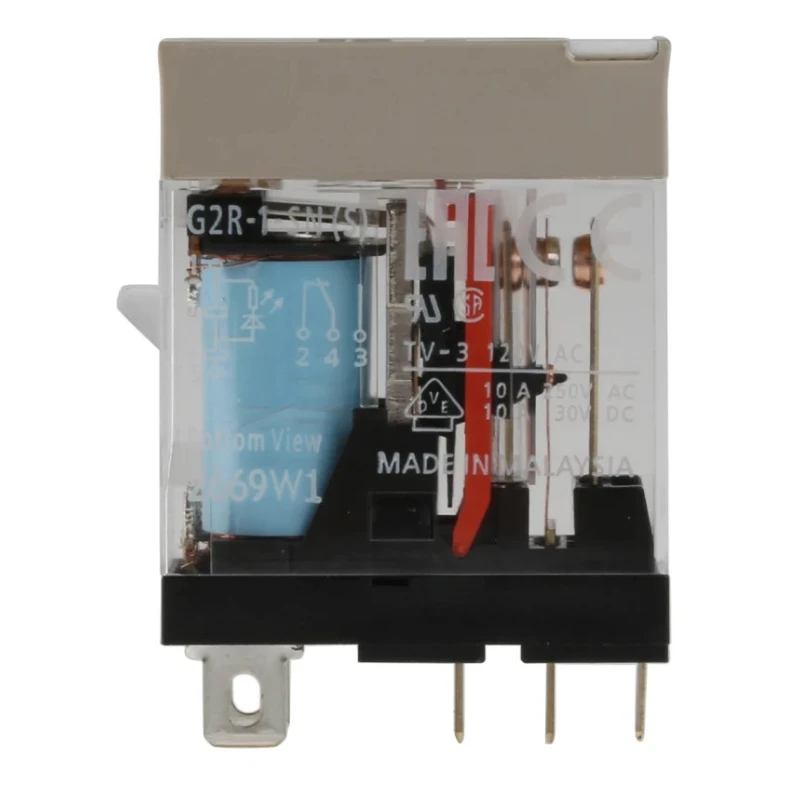

Omron Power Relay 12V dc Coil 10A Switching Current SPDT G2R-1-SN 12VDC (S)

Omron G2R-1-SN 12VDC (S) power relay features a 12V dc coil voltage and handles a switching current of 10A with single-pole double-throw (SPDT) contact configuration. It is designed for reliable and repeatable machine control in industrial and automation systems.

This relay offers a plug-in terminal type for quick installation and wiring. Its silver alloy contacts minimize resistance with a contact resistance of 100mΩ, ensuring efficient electrical conductivity. The device can operate continuously within a temperature range of -40°C to 70°C, making it suitable for various tough environmental conditions.

The built-in LED indicator allows convenient real-time status monitoring. Withstanding switching power up to 2.5 kVA and coil power consumption of 530mW, it is ideal for applications requiring both AC and DC voltage switching capacities, supporting up to 440V AC and 125V DC.

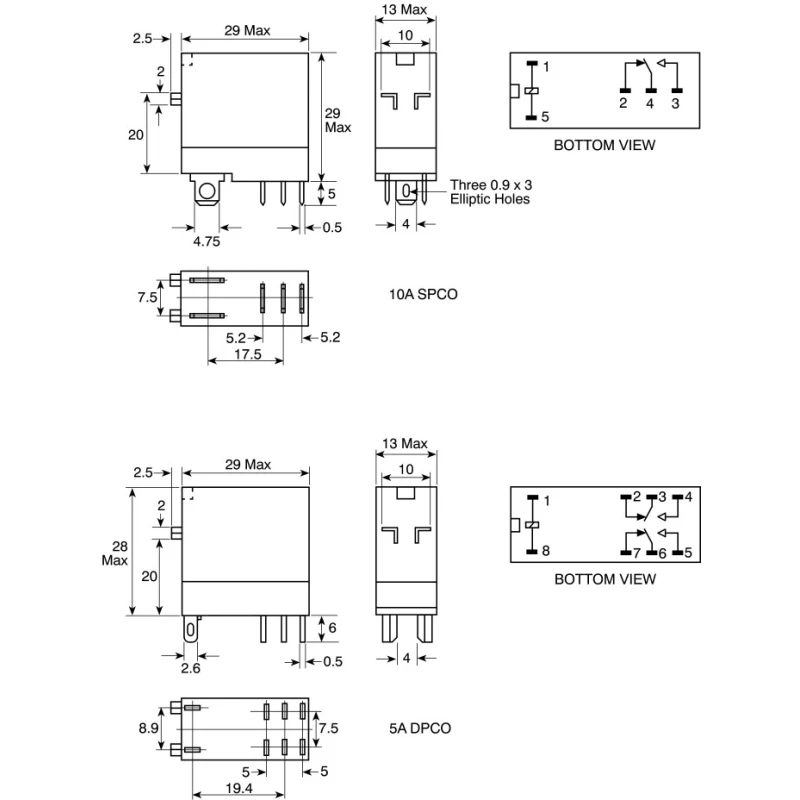

Dimensions are compact with 35.5 mm height, 29 mm length, and 13 mm width, making it suitable for space-constrained setups. The coil resistance of 278Ω adds to the operational stability of the device.

Omron’s G2R-1-SN 12VDC (S) relay is rated for at least one million electrical cycles and twenty million mechanical cycles, delivering long-lasting durability for continuous industrial use. Applications include automotive systems, textile manufacturing, beverage production, lift and elevator control, gas and electric boilers, and domestic appliances.

Constructed to meet RoHS standards and manufactured in Malaysia, this power relay also features a mechanical status indicator that displays switch positions even when de-energized, enhancing maintenance visibility.

Single-pole double-throw (SPDT) contact configuration for versatile switching. 12V dc coil voltage with 530mW coil power. Switching currents up to 10A suitable for industrial load control. Operating temperature range from -40°C to 70°C for harsh environments.

Compact size with dimensions: 35.5 mm x 29 mm x 13 mm (H x L x W). Silver alloy contacts with low 100mΩ contact resistance ensure reliable conductivity. Plug-in terminal type allows easy installation and replacement. Durable with over one million electrical and twenty million mechanical cycles.

Built-in LED indicator and mechanical status indicator for operation monitoring. Suitable for applications including automotive, textiles, beverage production, and HVAC systems. Explore more high-quality Power Relays and industrial automation components on EnvMart, designed to optimize your system performance and reliability.
