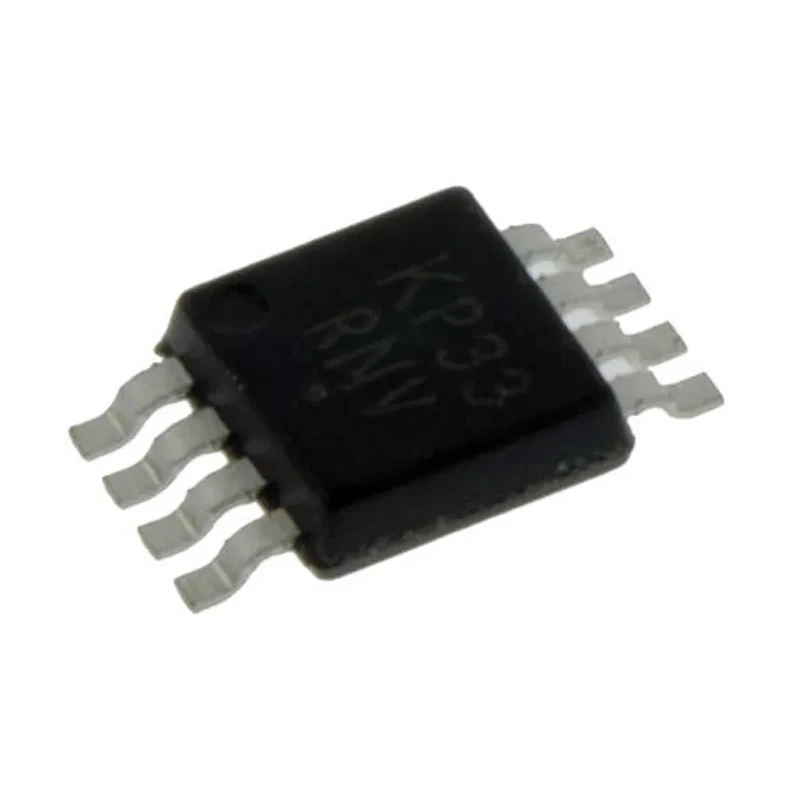

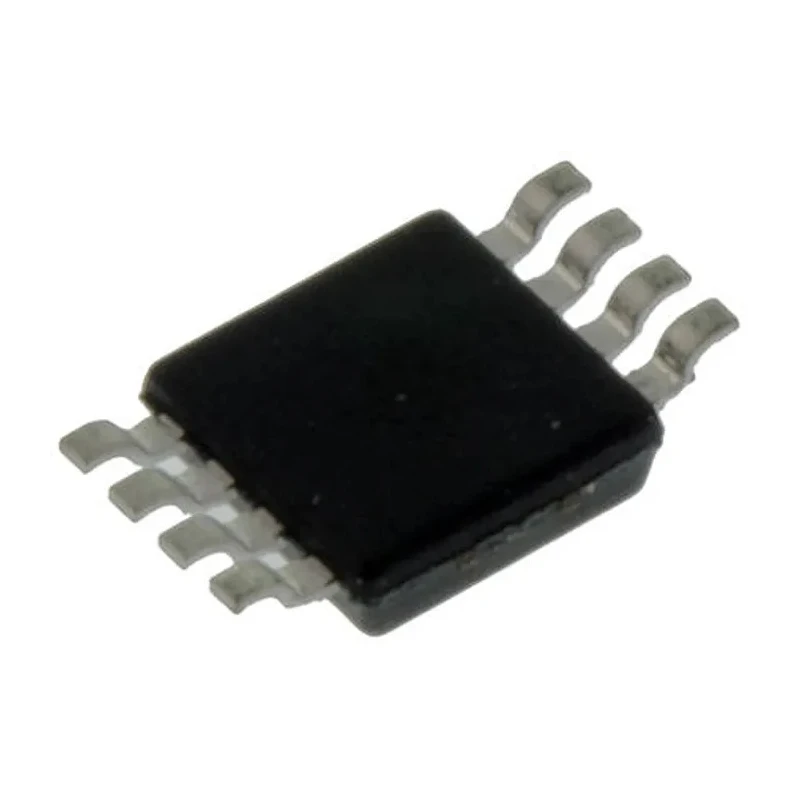

onsemi Operational Amplifier 3.2 MHz 8-Pin 36V TSSOP NCS20072DTBR2G
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | onsemi |
| Height | 1.1mm |
| Length | 3.1mm |
| Model | NCS20072DTBR2G |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | NCS20072 |
| Output Current | 70mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 3.2MHz |
| Input Bias Current | 1500 pA |
| Vos - Input Offset Voltage | ±4 mV |
| Slew Rate | 2.8V/μs |
| Input Offset Current | 1000 pA |
| Low supply current | 405 μA per channel |
Key Features
- High gain bandwidth product of 3.2 MHz for improved signal fidelity.
- Operates from a wide supply voltage range of 2.7 V to 36 V.
- Single channel dual operational amplifier with rail-to-rail output capability.
- Robust automotive standard AEC-Q100 compliant design.
- Low supply current of 405 μA per channel for power efficiency.
- Slew rate of 2.8 V/μs ensures fast response in dynamic applications.
- 8-pin TSSOP surface mount package with compact dimensions 3.1 mm x 4.5 mm x 1.1 mm.
- Wide operational temperature range from -40°C to 125°C for harsh environments.
Product Description
onsemi NCS20072DTBR2G is a dual operational amplifier designed for high precision analog applications with a gain bandwidth product of 3.2 MHz. This device features a rail-to-rail output and operates over a broad supply voltage range of 2.7 V to 36 V, making it highly versatile for industrial, automotive, and embedded systems.
The IC comes in an 8-pin TSSOP package measuring 3.1 mm in length, 4.5 mm in width, and 1.1 mm in height, optimized for surface mounting on compact printed circuit boards. Its robust automotive qualification under AEC-Q100 standard ensures reliable operation in demanding automotive electronics applications.
The operational amplifier offers a low supply current of 405 μA per channel combined with a fast slew rate of 2.8 V/μs, enabling energy-efficient and high-speed analog signal processing. It maintains low input bias (1500 pA) and input offset currents (1000 pA), with an input offset voltage tolerance of ±4 mV, providing precise amplification performance.
Designed for applications including industrial control, sensor interface, instrumentation, and communications systems, this amplifier handles an output current of up to 70 mA. This allows it to drive various loads with consistent analog performance.
High gain bandwidth product of 3.2 MHz for enhanced signal accuracy. Wide operating supply voltage supports 2.7 V to 36 V applications. Dual channel with rail-to-rail output for full voltage swing. Compliant with automotive AEC-Q100 standards for reliability.
Low quiescent current ensures power-efficient designs. Fast slew rate to accommodate rapid signal changes. Compact 8-pin TSSOP surface mount package for space-saving PCB layouts. Extensive operating temperature range suited for automotive and industrial environments.
Minimal input bias and offset currents for precision signal conditioning. Capable of delivering 70 mA output current for diverse analog circuits.
NCS20072DTBR2G operational amplifiers from onsemi provide reliable, high-performance analog amplification suitable for demanding industrial, automotive, and instrumentation applications. Their combination of speed, precision, and power efficiency supports a broad range of electronic circuit requirements.
Explore more Operational Amplifier solutions in the Op Amps category at EnvMart for high-quality semiconductor analog components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the NCS20072DTBR2G operational amplifier is 3.2 MHz, which enhances signal fidelity in various applications.
It can deliver an output current of up to 70 mA, allowing it to drive various loads effectively.
The NCS20072DTBR2G comes in an 8-pin TSSOP package with dimensions of 3.1 mm in length, 4.5 mm in width, and 1.1 mm in height.
The slew rate of this model is 2.8 V/μs, ensuring fast response in dynamic applications.
The input bias current is 1500 pA, and the input offset current is 1000 pA, contributing to its precise amplification performance.
Yes, it is compliant with the automotive AEC-Q100 standard, ensuring reliability in automotive applications.
The low supply current is 405 μA per channel, which promotes power efficiency in designs.
The input offset voltage tolerance is ±4 mV, which aids in maintaining precision in signal amplification.
This operational amplifier is designed for applications including industrial control, sensor interface, instrumentation, and communications systems.
The NCS20072DTBR2G is manufactured in the Philippines.
