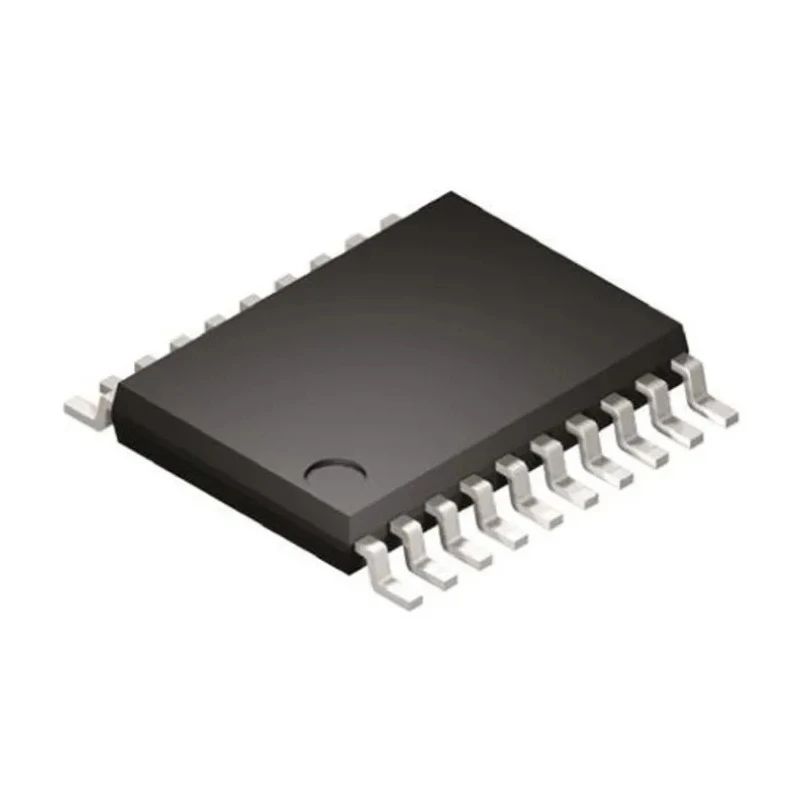

onsemi 2 Flip Flop IC ECL Logic Family, 20-Pin TSSOP MC10EP29DTG

onsemi MC10EP29DTG is a 2 Flip Flop integrated circuit utilizing Emitter Coupled Logic (ECL) technology with a 20-pin Thin Shrink Small Outline Package (TSSOP). This device operates at a clock frequency of 3 GHz and features dual D Flip-Flops supporting both inverting and non-inverting polarities.

Designed for surface mount assembly and broad environmental tolerance, the MC10EP29DTG IC functions reliably between -40°C and 85°C and operates on a low voltage supply ranging from 3V to a maximum of 5.5V. The device exhibits a maximum propagation delay time of 575 picoseconds, enabling high-speed switching suitable for modern electronic circuits.

The compact dimensions, measuring 6.6mm in length and 1.05mm in height, assist in space-constrained PCB designs. This IC is applicable across industrial controls, telecommunications hardware, and data processing systems requiring fast, stable flip flop logic components.

Implements dual D Flip-Flops with inverting and non-inverting polarity. Operates within a supply voltage range of 3V to 5.5V. Features a maximum propagation delay time of 575 picoseconds at CL. Designed for surface mount technology with TSSOP package form factor.

Supports operating temperatures from -40°C to 85°C. Compact dimensions: length 6.6mm and height 1.05mm. No automotive standard certification; RoHS compliant. Applications include industrial, laboratory instrumentation, telecommunications, and manufacturing.

This product is new and sourced in India. It enhances production efficiency and is suitable for integration into automated electronic assemblies. Explore more Flip Flop ICs and advanced semiconductor components in EnvMart’s Electronics & Electricals category for comprehensive industrial solutions.
