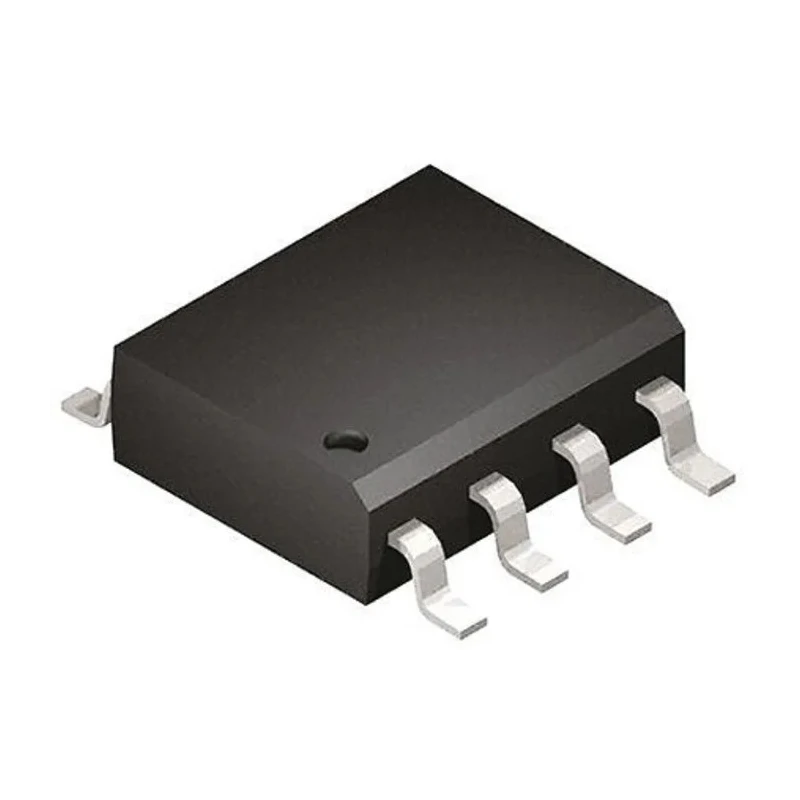

onsemi Operational Amplifier Dual Channel 3.2 MHz Gain Bandwidth, 36 V SOIC 8-Pin NCS20072DR2G
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | onsemi |
| Height | 1.5mm |
| Length | 5mm |
| Model | NCS20072DR2G |
| Width | 4mm |
| Mount Type | Surface |
| Series | NCS20072 |
| Output Current | 70mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 3.2MHz |
| Input Bias Current | 1500 pA |
| Vos - Input Offset Voltage | ±4 mV |
| Slew Rate | 2.8V/μs |
| Input Offset Current | 1000 pA |
| Low supply current | 405 μA per channel |
Key Features
- Supports supply voltage range from 2.7 V to 36 V for versatile applications.
- Boasts a high slew rate of 2.8 V/μs ensuring rapid response time.
- Low supply current at 405 μA per channel optimizes power consumption.
- Wide operating temperature range from -40°C to 125°C suits harsh environments.
- Features rail-to-rail output facilitating maximum output voltage swing.
- Complies with RoHS standards ensuring environmentally friendly manufacturing.
- Includes automotive standard qualification AEC-Q100 for reliability.
Product Description
onsemi NCS20072DR2G is a dual operational amplifier designed for electronic and semiconductor applications, featuring a gain bandwidth product of 3.2 MHz. It operates efficiently with supply voltages from 2.7 V up to 36 V, making it suitable for a wide range of industrial, automotive, and commercial uses.
The device provides a high slew rate of 2.8 V/μs and a low supply current consumption of 405 μA per channel, offering excellent performance in power-sensitive applications. Its rail-to-rail output design allows for maximum dynamic range in output voltage.
Engineered to withstand harsh conditions, the amplifier functions reliably over a temperature range from -40°C to 125°C, meeting automotive-grade standards such as AEC-Q100. The robust construction includes a surface-mount SOIC 8-pin package measuring 5 mm in length, 4 mm in width, and 1.5 mm in height, ensuring space-efficient PCB integration.
The NCS20072DR2G is RoHS compliant, guaranteeing adherence to environmental and safety regulations. It excels in various applications including industrial instrumentation, automotive electronics, sensor conditioning, and precision signal processing.
Supports supply voltage range from 2.7 V to 36 V for versatile applications. Boasts a high slew rate of 2.8 V/μs ensuring rapid response time. Low supply current at 405 μA per channel optimizes power consumption. Wide operating temperature range from -40°C to 125°C suits harsh environments.
Features rail-to-rail output facilitating maximum output voltage swing. Complies with RoHS standards ensuring environmentally friendly manufacturing. Includes automotive standard qualification AEC-Q100 for reliability. Compact SOIC 8-pin package supports surface mounting on PCBs.
Explore the Operational Amplifier category at EnvMart for more high-performance semiconductor components from onsemi and other leading manufacturers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 3.2 MHz, which allows for effective signal amplification in various applications.
It supports a supply voltage range from 2.7 V to 36 V, making it versatile for different applications.
The maximum operating temperature for this model is 125°C, suitable for harsh environments.
This operational amplifier features two channels, allowing for dual-channel applications.
The slew rate is 2.8 V/μs, ensuring rapid response times for signal changes.
The low supply current is 405 μA per channel, which helps optimize power consumption in applications.
It comes in a surface-mount SOIC 8-pin package, measuring 5 mm in length, 4 mm in width, and 1.5 mm in height.
It complies with the AEC-Q100 automotive standard, ensuring reliability for automotive applications.
The input offset voltage is ±4 mV, which is important for maintaining accuracy in signal processing.
The minimum supply voltage is 2.7 V and the maximum is 36 V, allowing for a wide range of operational flexibility.
This operational amplifier complies with RoHS standards, ensuring environmentally friendly manufacturing practices.
The input bias current is 1500 pA, which is critical for low-power applications.
