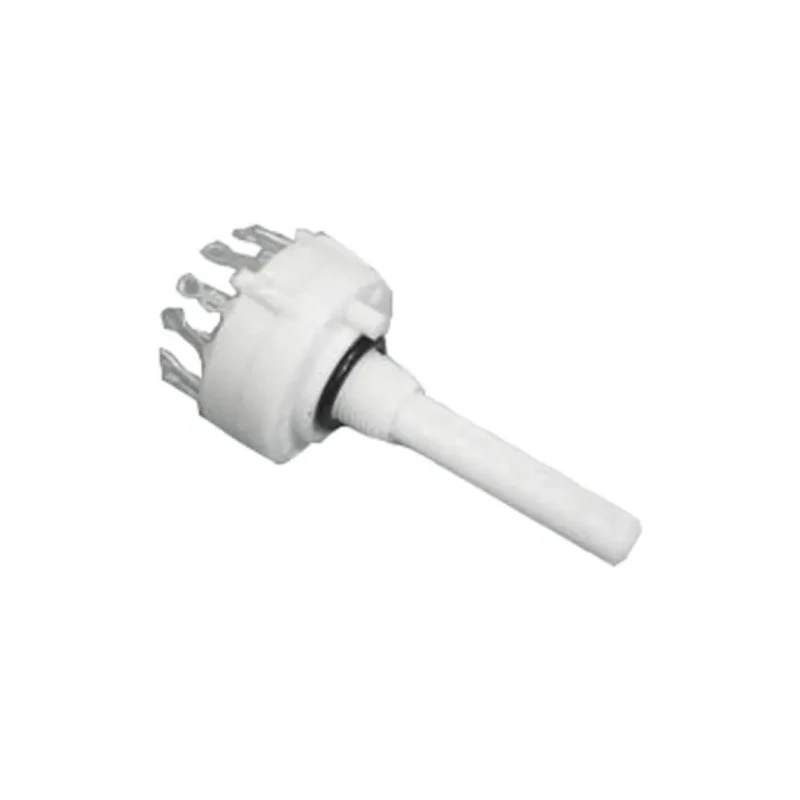

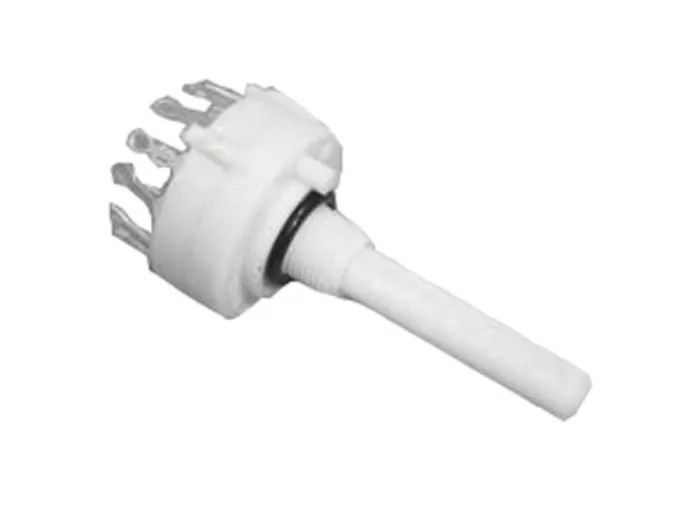

Lorlin 4 Position Rotary Switch 1A 24V AC/DC Polyamide Housing, Solder Tag, IP65 Sealed CKF1036

Lorlin CKF1036 4 Position Rotary Switch is a high-quality IP65 sealed rotary switch designed for reliable performance in industrial and electrical applications. The CKF series combines robust construction with precise rotary switching operation suitable for signal and control use.

This switch is constructed with a durable polyamide housing and features a black colored actuator, ensuring long-lasting usage and resistance to harsh conditions. It supports up to 1A current with a maximum operating voltage of 24V AC/DC, making it suitable for low voltage control circuits.

The CKF1036 model offers 4 distinct positions with a 90° angle of throw and 3 poles, incorporating solder tag terminals for effective PCB mounting. The switch also provides dampened indexing and reduced axial play to deliver a smooth, high-quality user experience. With a mechanical life rated for 10,000 cycles, this rotary switch guarantees durability and operational consistency.

Lorlin CKF1036 is rated IP65 on the front panel, providing excellent protection against dust and water ingress, which is essential for industrial automation, electrical, HVAC, and manufacturing environments.

The unit is engineered to operate efficiently within a wide temperature range, from -30°C to 85°C, ensuring stable performance in diverse climatic conditions. This feature makes the CKF1036 well-suited for demanding applications in laboratory and commercial electrical control systems.

The switch features 4 selectable positions and supports up to 1A current. Durable polyamide housing with black actuator color ensures long life and reliability. Designed for up to 24V AC/DC operating voltage, compatible with PCB mounting.

Solder tag terminals provide secure and reliable electrical connections. Rated for 10,000 mechanical cycles ensuring consistent operation and longevity. Front panel sealed to IP65 standard for dust and water protection. Wide operating temperature range from -30°C to 85°C suits various environments.

Set contains 1 Pc Lorlin CKF1036 rotary switch. Explore our wide range of Rotary Switches and electrical components for various industrial and commercial applications at EnvMart.
