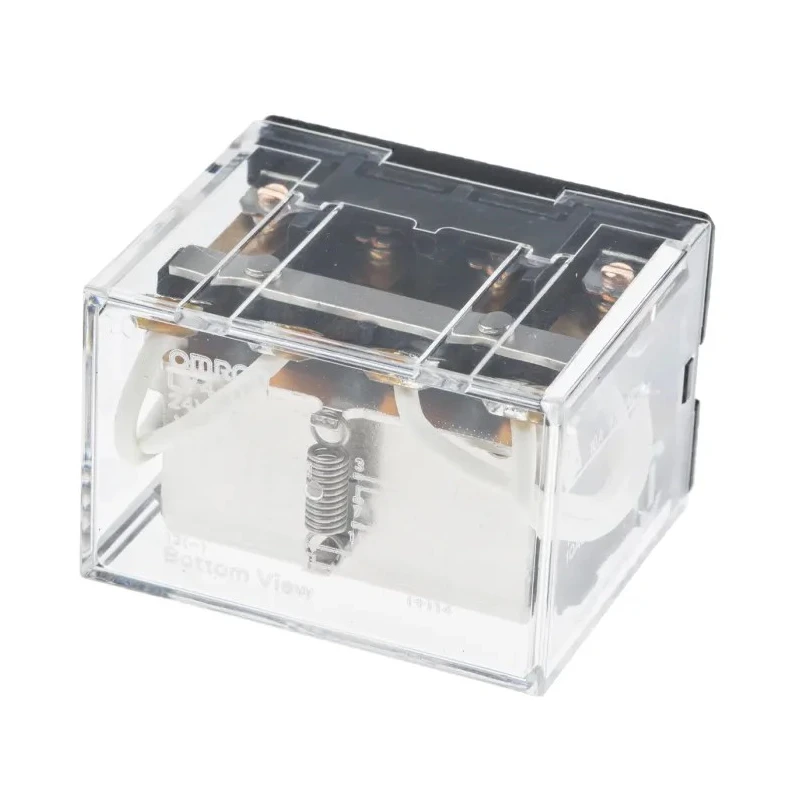

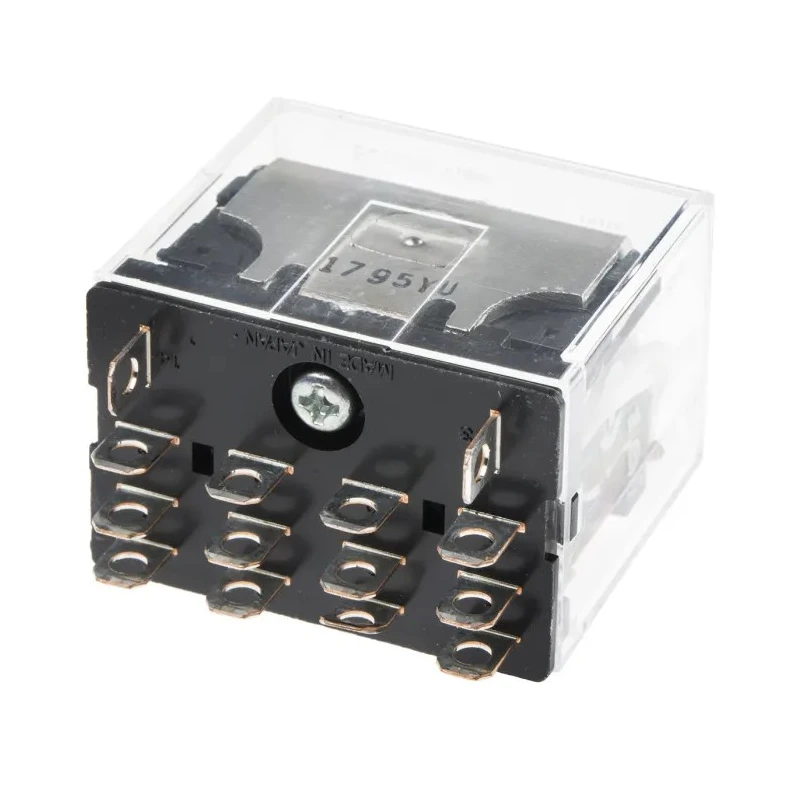

Omron Power Relay 24V DC Coil 10A Switching Current 4PDT Plug-In Terminal LY4-D 24VDC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 28mm |
| Length | 41.5mm |
| Model | LY4-D 24VDC |
| Width | 36mm |
| Contact Material | Silver Alloy |
| Series | LY4 |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Contact Resistance | 50mΩ |
| Standards/Approvals | UL, CSA |
| Coil Resistance | 350Ω |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 125V |
| Coil Power | 1.5W |
| Switching Power | 1.5W |
Key Features
- Operates with a 24V DC coil consuming 1.5 W power.
- Features four-pole double-throw silver alloy contacts with low contact resistance of 50 mΩ.
- Supports switching of AC and DC voltages up to 125V with a 10A continuous current rating.
- Plug-in terminal type allows easy replacement and maintenance.
- Compact size ideal for dense control panel layouts with 41.5mm length and 28mm height.
- Coil resistance of 350 Ω ensures predictable drive current.
- Rated for operating temperatures from -25°C to 55°C for reliable industrial performance.
- UL and CSA approvals ensure compliance with industrial standards.
Product Description
Omron LY4-D 24VDC Power Relay is a compact electromechanical device engineered for industrial automation and control panels requiring simultaneous switching of multiple circuits. Featuring a 24V DC coil operating at 1.5 W and a coil resistance of 350 Ω, it delivers reliable actuation with low power consumption.
This relay is equipped with four-pole double-throw (4PDT) silver alloy contacts, offering a low contact resistance of 50 mΩ and capable of switching both AC and DC voltages up to 125V at a continuous 10A current. Its plug-in terminal design facilitates quick replacement and ease of installation in modular systems.
The small footprint of 41.5mm length, 36mm width, and 28mm height allows space-efficient integration in tight control panels. Designed to operate under ambient temperatures ranging from -25°C to 55°C, it ensures stable switching performance across common industrial environments.
With recognized certifications from UL and CSA, this relay adheres to stringent industry standards for safety and reliability. Typical applications include relay logic in automation racks, motor control interlocks, signal routing in test and measurement setups, and general machine control for both AC and DC loads.
Operates at 24V DC coil voltage with 1.5W coil power consumption. Four-pole double-throw contacts allow complex circuit switching. Low contact resistance of 50 mΩ with silver alloy contacts ensures efficiency. Plug-in terminals streamline maintenance and replacement.
Rated for 125V AC/DC switching voltage and 10A current capability. Compact dimensions suitable for dense control cabinet layouts. Wide operating temperature range from -25°C to 55°C. UL and CSA approved for industrial applications.
Explore more in Electroincs & Electricals Power Relay category at EnvMart for advanced industrial switching solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a coil voltage of 24V DC and has a power consumption of 1.5W.
It supports a maximum switching current of 10A and can switch AC and DC voltages up to 125V.
This relay features four-pole double-throw (4PDT) contacts made of silver alloy, providing a low contact resistance of 50 mΩ.
The relay has a compact size with dimensions of 41.5mm in length, 36mm in width, and 28mm in height.
The coil resistance is 350 Ω, ensuring predictable drive current.
It is rated for operating temperatures from -25°C to 55°C, making it suitable for various industrial environments.
This model features a plug-in terminal type, allowing for easy replacement and maintenance.
The relay has UL and CSA approvals, ensuring compliance with industrial safety standards.
The contact configuration is four-pole double-throw (4PDT), which allows for complex circuit switching.
The contacts are made of silver alloy, which contributes to the low contact resistance.
Typical applications include relay logic in automation racks, motor control interlocks, and signal routing in test setups.
This relay belongs to the LY4 series, which is designed for industrial automation and control.
