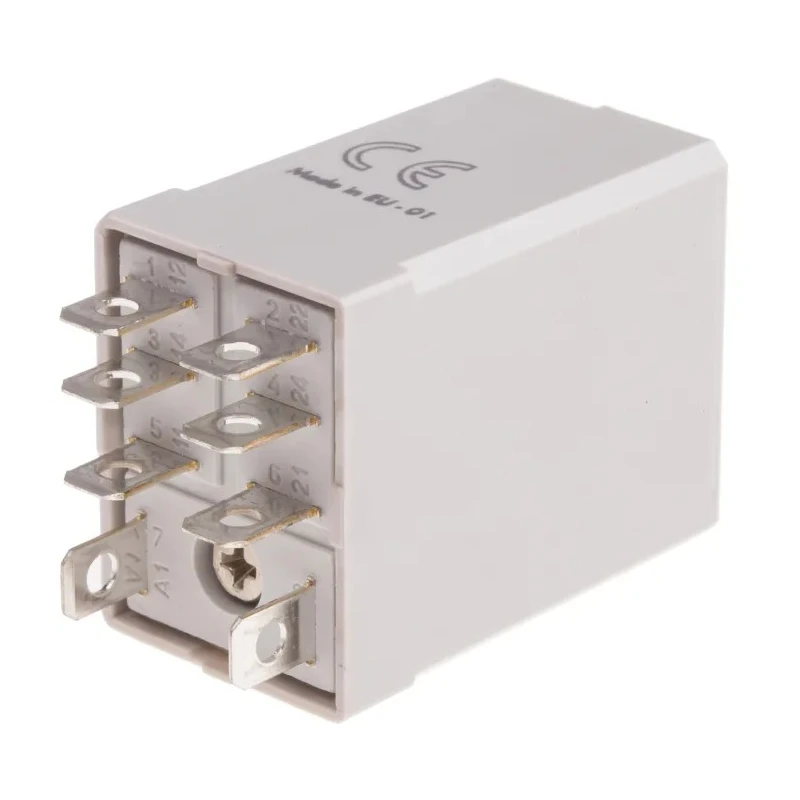

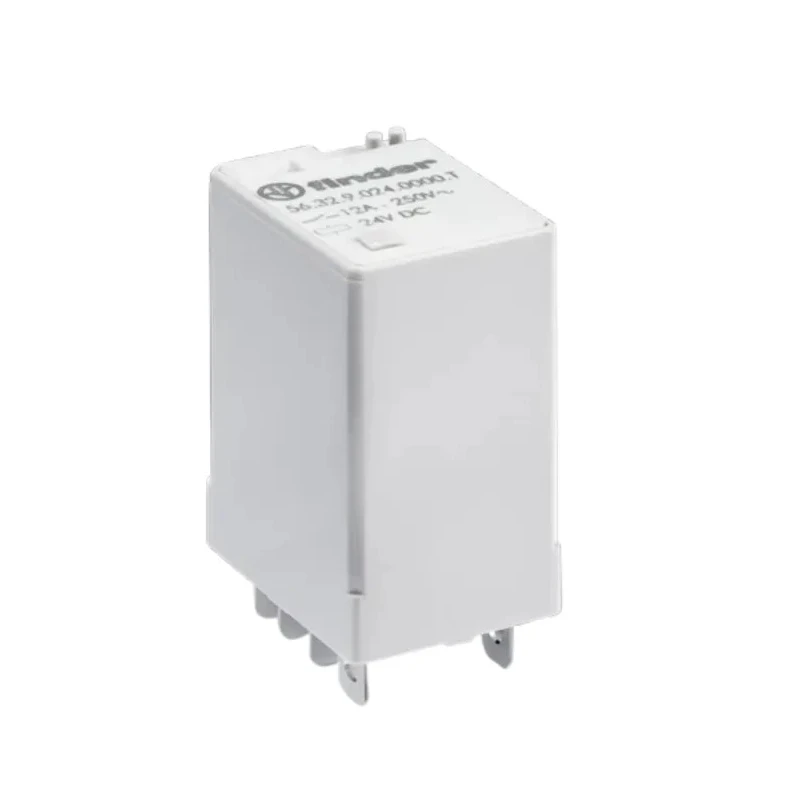

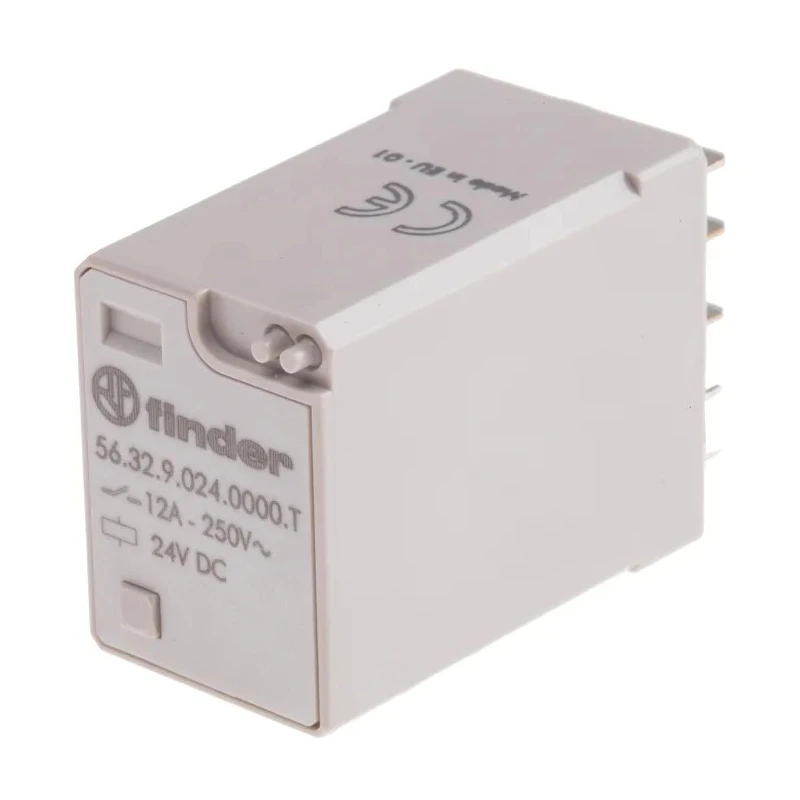

Finder Power Relay 24V DC Coil 12A Switching Current DPDT 56.32.9.024.0000T
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Finder |
| Height | 37.2mm |
| Length | 27.7mm |
| Model | 56.32.9.024.0000T |
| Width | 20.7mm |
| Contact Material | Silver Alloy |
| Series | 56 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Quick Connect |
| Standards/Approvals | CE, EAC |
| Coil Resistance | 600Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 1.5W |
Key Features
- Operates with a coil voltage of 24V DC and rated switching current of 12A.
- DPDT (Double Pole Double Throw) contact configuration enables versatile switching.
- Quick connect terminals for easy installation and maintenance.
- Robust silver alloy contacts ensure long-lasting performance and reliability.
- Rated switching voltages up to 250V AC and 250V DC.
- Mechanical life expectancy of up to 100,000 electrical cycles enhances durability.
- Safe operation with coil to contact insulation rated at 4 kV.
- Compact form factor with dimensions 27.7mm x 20.7mm x 37.2mm for space-efficient panel integration.
Product Description
Finder 56.32.9.024.0000T Power Relay features a 24V DC coil and supports a 12A switching current with a DPDT contact configuration. It is designed for industrial and railway use where reliable and safe power control is essential.
This relay incorporates quick connect terminals that make installation and maintenance efficient, while silver alloy contacts provide durable and reliable switching performance. The relay supports switching voltages up to 250V AC and 250V DC, making it suitable for diverse electrical applications. With a mechanical life expectancy of 100,000 cycles, it offers long-term dependable operation.
Its compact size (27.7mm length, 20.7mm width, and 37.2mm height) enables easy mounting in control panels and electrical assemblies. The relay operates within a temperature range from -40°C to 70°C, ensuring stable performance in harsh environments.
Safety is enhanced by an insulation rating of 4 kV between the coil and contacts, reducing the risk of electrical faults. This product complies with CE and EAC standards, demonstrating adherence to international quality and safety norms.
Common industrial applications include railway signalling, motor control systems in manufacturing, vending machine operation, power distribution management, and use in circuit breakers and switches for power interruption.
Operates with coil voltage of 24V DC and switching current of 12A. DPDT contact configuration supports versatile switching requirements. Quick connect terminal design simplifies installation and servicing. Durable silver alloy contacts for long-lasting function.
Supports switching voltages of 250V AC and 250V DC. Mechanical life expectancy up to 100,000 electrical cycles. Insulation resistance rated at 4 kV between coil and contacts. Compact dimensions facilitate integration into varied panel setups.
Wide operating temperature range from -40°C to 70°C. Complies with CE and EAC standards for safety and reliability. Explore EnvMart's Electronics & Electricals category for high-quality relays and power control components designed for industrial and commercial use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 24V DC.
It has a rated switching current of 12A.
This relay features a DPDT (Double Pole Double Throw) contact configuration.
It supports switching voltages up to 250V AC and 250V DC.
The mechanical life expectancy of this relay is up to 100,000 electrical cycles.
The dimensions are 27.7mm in length, 20.7mm in width, and 37.2mm in height.
The insulation resistance is rated at 4 kV between the coil and contacts.
It operates within a temperature range from -40°C to 70°C.
The contacts are made of silver alloy, ensuring reliable performance.
This model features quick connect terminals for easy installation and maintenance.
It complies with CE and EAC standards for safety and reliability.
Common applications include railway signalling, motor control systems, vending machines, and power distribution management.
