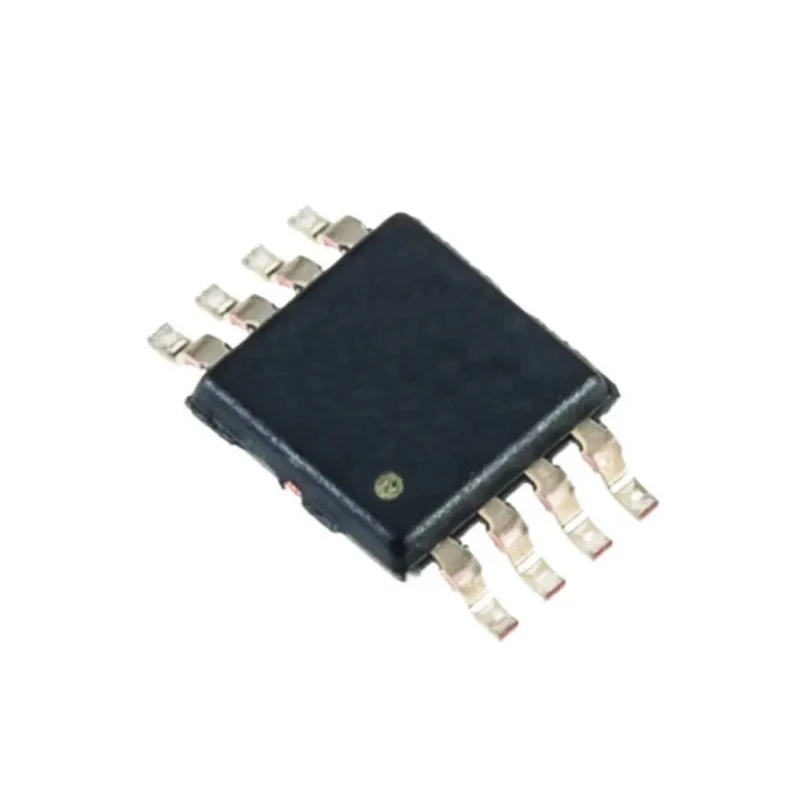

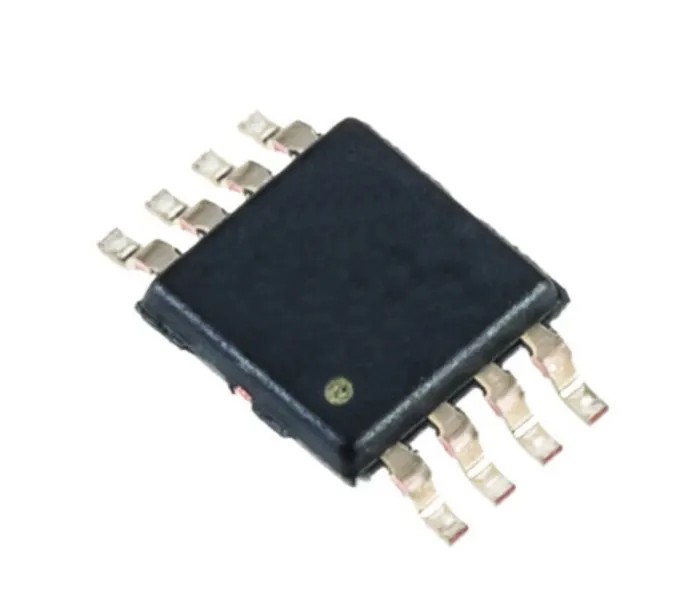

Texas Instruments Operational Amplifier 18 MHz, 8-Pin 40V VSSOP OPA2209AIDGKT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.3mm |
| Length | 3.05mm |
| Model | OPA2209AIDGKT |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | OPA2209 |
| Maximum Operating Temperature | 125°C |
| Package Type | VSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 40V |
| Minimum Supply Voltage | 4.5V |
| GBP - Gain Bandwidth Product | 18MHz |
| Input Bias Current | ±15 nA |
| Slew Rate | 6.4V/μs |
Key Features
- Single channel operational amplifier suitable for precision signal processing.
- Gain bandwidth product of 18 MHz enabling fast response.
- Input offset voltage of ±150 μV ensuring high precision.
- Operates with supply voltage range from 4.5V up to 40V for versatility.
- Low input bias current of ±15 nA ideal for sensitive measurements.
- Slew rate of 6.4 V/μs allowing rapid output changes.
- Operating temperature range from -40°C to 125°C suitable for harsh environments.
- Surface mount VSSOP package ensuring easy PCB integration.
Product Description
Texas Instruments OPA2209AIDGKT is a precision operational amplifier from the Burr Brown OPA series, tailored for demanding industrial and laboratory applications requiring high accuracy and low drift. Featuring a gain bandwidth product of 18 MHz, this single-channel amplifier is housed in a compact 8-pin VSSOP surface mount package, with a supply voltage range of 4.5 to 40 volts allowing flexibility in various analog circuit designs.
The device offers a low input offset voltage of ±150 microvolts and ultra-low input bias current of ±15 nanoamperes, making it ideal for precision transducer and strain gauge amplifiers, precision integrators, and active filters. Its slew rate of 6.4 V/μs ensures fast transient response suitable for high-fidelity signal amplification.
The OPA2209AIDGKT is robust, supporting a wide temperature range from -40°C to 125°C, providing reliability in both industrial environments and automotive applications without automotive standard certification.
Physical dimensions contribute to space-saving PCB layouts with a length of 3.05 mm, width of 1.75 mm, and height of 1.3 mm. This package type supports surface mount technology, streamlining manufacturing and assembly processes.
Single channel for precision analog amplification. Gain bandwidth of 18 MHz for fast signal response. Low input offset voltage and bias current ensure accuracy. Wide supply voltage range of 4.5 V to 40 V. Slew rate of 6.4 V/μs enhances signal transient handling.
Wide operating temperature range suitable for demanding environments. Compact 8-pin VSSOP surface mount package. Applications include instrumentation, active filters, and transducer amplifiers.
This operational amplifier is widely used in industrial manufacturing, laboratory instrumentation, and precision measurement equipment. It supports designs requiring stable and accurate signal conditioning in harsh environments, making it a versatile choice for electronics engineers.
Explore more Operational Amplifiers and semiconductor devices on EnvMart for advanced analog circuit design.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the OPA2209AIDGKT is 18 MHz, enabling fast response in signal processing applications.
It operates with a supply voltage range from 4.5V up to 40V, providing versatility for various analog circuit designs.
The input offset voltage is ±150 μV, ensuring high precision in signal amplification.
The slew rate of this model is 6.4 V/μs, allowing for rapid output changes suitable for high-fidelity signal amplification.
This operational amplifier has a length of 3.05 mm, a width of 1.75 mm, and a height of 1.3 mm, making it suitable for compact PCB layouts.
The input bias current is ±15 nA, which is ideal for sensitive measurements in precision applications.
It operates within a temperature range from -40°C to 125°C, making it suitable for harsh environments.
The OPA2209AIDGKT is a single-channel operational amplifier, designed for precision analog amplification.
This model is housed in an 8-pin VSSOP surface mount package, facilitating easy PCB integration.
It is widely used in instrumentation, active filters, and transducer amplifiers, particularly in industrial and laboratory settings.
This operational amplifier belongs to the Burr Brown OPA series, known for high accuracy and low drift characteristics.
The country of origin for this operational amplifier is India.
