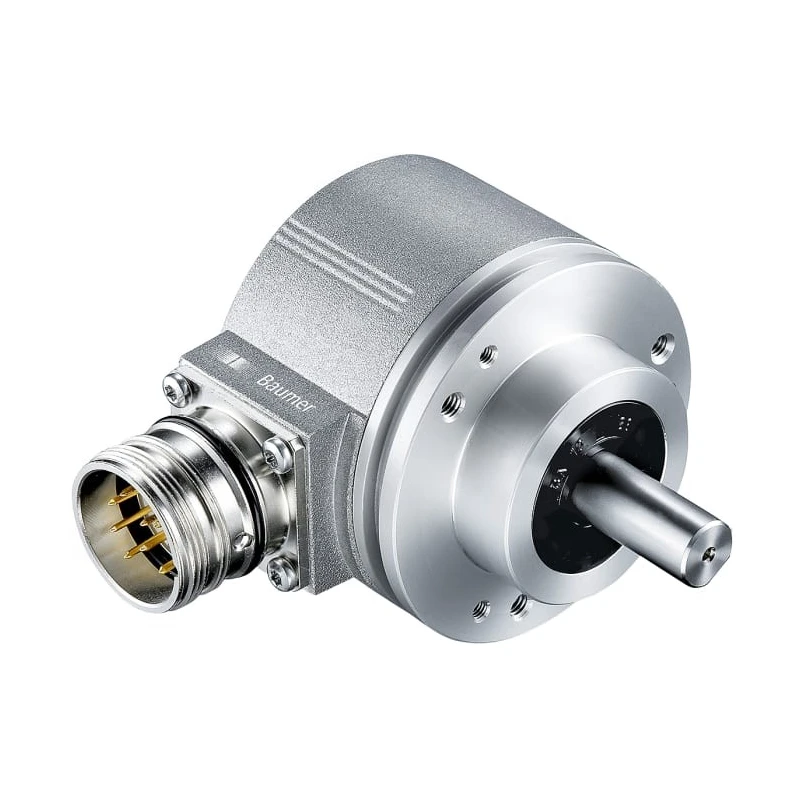

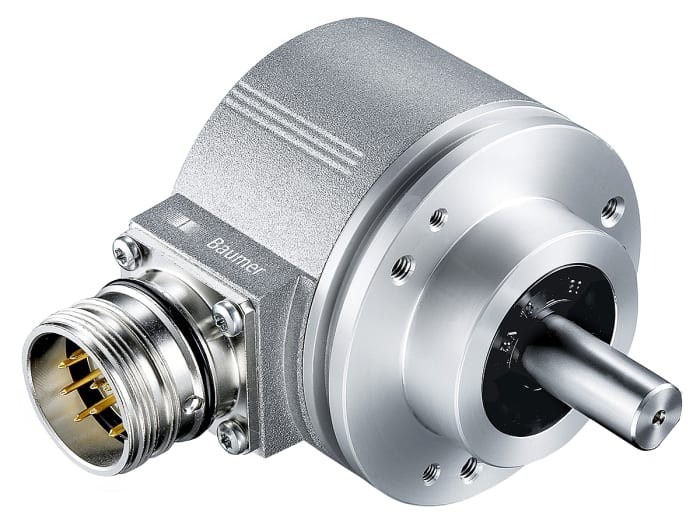

Baumer Optical Incremental Encoder EIL580 Series 30 V, 4096 ppr, HTL Push Pull Signal, Solid Shaft EIL580-SC10.5BN.04096.A

Baumer EIL580-SC10.5BN.04096.A optical incremental encoder is a precision device designed for accurate motion control and position feedback in industrial automation systems. Operating at 30 V supply voltage with a high pulse resolution of 4096 pulses per revolution, this encoder provides reliable and precise measurements through its optical sensing technology.

The encoder features a solid shaft type with a 10 mm diameter, ensuring robust mechanical coupling and stable operation. Its clamp mount design facilitates secure installation and resistance to mechanical vibrations prevalent in demanding environments.

Constructed with a stainless steel shaft and die-cast aluminium housing, the encoder is engineered for enhanced durability, corrosion resistance, and longevity. The device maintains an IP65 ingress protection rating, safeguarding internal components from dust ingress and water jets, making it suitable for outdoor or harsh conditions.

With a maximum rotational speed of 12,000 rpm and a switching frequency of 300 kHz, the encoder supports high-speed machinery applications. Its HTL Push Pull output signals combined with an M12 flange electrical connector allow for noise-resistant, standardized interfacing with motion control systems.

Dimensionally compact at 58 mm width, 63 mm height, and 48 mm depth, it integrates seamlessly into various industrial setups requiring precise rotary feedback.

This encoder is designed for applications across industrial automation, manufacturing, robotics, packaging machines, and HVAC systems, where dependable position feedback enhances system accuracy and efficiency.

High-resolution optical sensing at 4096 pulses per revolution. Robust solid shaft with 10 mm diameter for reliable motion tracking. HTL Push Pull output signal ensures noise-resistant signal transmission. Clamp mount type for secure installation and vibration resistance.

IP65 rated housing protects against dust and water jets. Operational temperature range from -40°C to 85°C for harsh environments. Maximum rotational speed up to 12,000 rpm suitable for high-speed applications. Equipped with M12 flange connector for standardized interfacing.

Compact dimensions: 58 mm width, 63 mm height, and 48 mm depth. Constructed with stainless steel shaft and die-cast aluminium housing for durability. Explore the Electronics & Electricals category at EnvMart for comprehensive solutions in Sensors and Optical Encoders from leading brands like Baumer.
