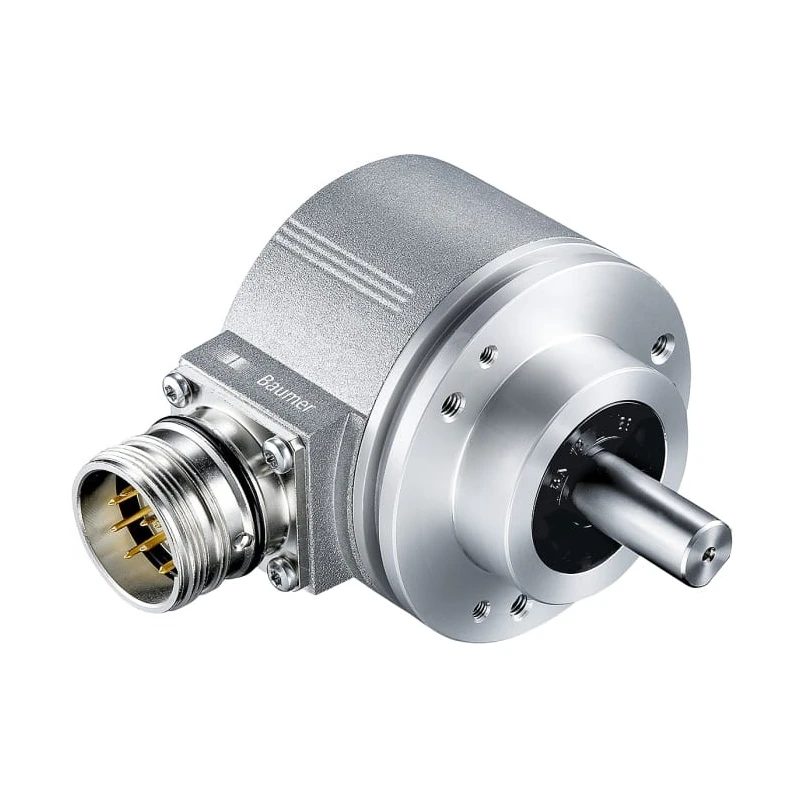

Baumer Optical Incremental Encoder 30V dc, 1000 ppr, HTL/Push Pull Signal, Solid Type, 10 mm Shaft EIL580

Baumer EIL580 Optical Incremental Encoder EIL580 offers high-precision position measurement with a robust solid shaft design. Operating at 30 V DC supply voltage, it generates 1000 pulses per revolution using optical encoder technology. The device outputs an HTL/Push Pull signal, ensuring compatibility with modern industrial automation systems.

This encoder features a 10 mm stainless steel solid shaft and is housed in a durable die-cast aluminium body, providing excellent resistance to shock and vibrations. Its compact dimensions with an overall depth of 48 mm, width of 58 mm, and height of 63 mm allow versatile mounting options, including a clamping flange mount for secure fixing.

Designed for demanding industrial environments, the EIL580 encoder operates reliably over a broad temperature range from -40°C to 85°C, with protection rated to IP65 against dust and water ingress. The M23 flange connector ensures secure and easy electrical interface.

The encoder's switching frequency of 300 kHz supports high-speed rotational applications, with a maximum revolution speed of 12,000 rpm. This product adheres to UL standards and is made in Germany, guaranteeing quality and reliability.

Applications of the Baumer EIL580 include industrial automation, motion control, robotics, machine tool positioning, and other precise shaft position monitoring tasks. Its robust construction and high accuracy make it suitable for use in manufacturing, laboratory instrumentation, HVAC systems, and water treatment plants.

This Incremental Encoder delivers 1000 pulses per revolution for accurate position detection. Operates at a maximum speed of 12,000 rpm with HTL/Push Pull output signal. Constructed with a stainless steel solid shaft and die-cast aluminium housing for durability.

Features a clamping flange mount for secure installation. Includes an M23 flange connector interface for reliable electrical connection. Operates in temperature ranges from -40°C to 85°C, suitable for harsh environments.

IP65 rated for protection against dust and water ingress. Switching frequency up to 300 kHz for high-speed signal processing. Manufactured in Germany with UL standards compliance. Explore more Industrial Sensors and Encoders at EnvMart to meet your automation and control gear needs.
