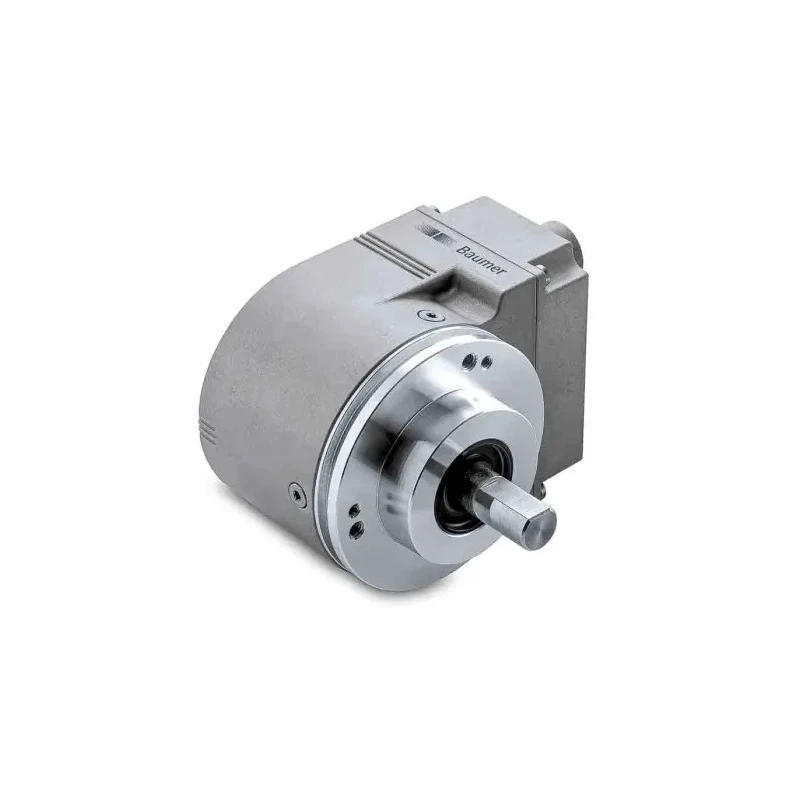

Baumer Optical Absolute Encoder Solid Shaft 10 mm, EtherCAT Interface, 30V, IP65, EAL580
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Baumer |
| Model | EAL580 |
| IP Rating | IP65 |
| Mount Type | Clamp |
| Series | EAL580 |
| Overall Width | 58mm |
| Maximum Operating Temperature | 85°C |
| Max. Resolution | single turn 18 bit, multiturn 16 bit |
| Minimum Operating Temperature | -40°C |
| Shaft Diameter | 10mm |
| Overall height | 90.9mm |
| Shaft Type | Solid |
| Terminal type | M12 Flange Connector |
| Interface Type | EtherCAT |
| Standards/Approvals | UL |
| Maximum Supply Voltage | 30V |
| Overall Depth | 59mm |
| Encoder Technology | Optical |
| Maximum Revolutions | 6000rpm |
Key Features
- Suitable for industrial environments requiring IP65 protection.
- Optical sensing with multiturn 16 bit and single turn 18 bit resolution.
- Clamping flange mount ensures secure and stable installation.
- High temperature tolerance from -40°C to 85°C for reliable operation.
- M12 flange connector for robust electrical connection.
- Maximum shaft speed of 6000 rpm supports diverse application speeds.
- LED status display facilitates easy operational status monitoring.
- Resistant to strong magnetic fields ensuring signal integrity.
Product Description
Baumer EAL580 Optical Absolute Encoder is a high-precision sensor designed for integration in demanding industrial, automation, and motion control systems. This encoder utilizes an optical sensing method to deliver accurate position feedback with a maximum resolution of single turn 18 bit and multiturn 16 bit. The solid shaft features a 10 mm diameter and is secured via a clamping flange mount, facilitating easy and reliable installation in various machine assemblies.
The device operates with a maximum supply voltage of 30V and interfaces via EtherCAT, supporting seamless connectivity in automated control networks. Rated at IP65, this encoder offers protection against dust and water jets, suitable for harsh industrial environments. The temperature range from -40°C to 85°C ensures reliable performance under extreme operating conditions.
Equipped with a robust M12 flange connector, the encoder maintains strong electrical connectivity. The LED status display provides visual confirmation of operational status, aiding maintenance and troubleshooting. Its substantial resistance to magnetic fields preserves the accuracy and reliability of signal output even in electromagnetically noisy surroundings.
The compact size, measuring 90.9 mm in height, 58 mm in width, and 59 mm in depth, allows integration into tight system assemblies without compromising performance. Manufactured in Germany and conforming to UL standards, the Baumer EAL580 heralds quality and durability for rotary motion sensing applications.
Solid shaft with clamping flange mount for secure attachment. Optical absolute encoder with high resolution for precise positioning. EtherCAT interface for fast, deterministic communication. IP65 rated protection against dust and water ingress.
Wide operating temperature range for versatile deployment. Robust M12 flange connector ensures reliable electrical connections. LED status display aids operational monitoring. High magnetic field resistance for stable sensor output.
Compact dimensions suit diverse industrial applications. Manufactured in Germany meeting UL standards.
Ideal for industrial automation, manufacturing process control, robotics, and other applications requiring precise rotary position measurement. Explore more Baumer sensors and motion control solutions at EnvMart.
Explore more products in our Motion Control Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The encoder features a maximum resolution of 18 bits for single turn and 16 bits for multiturn applications.
This model operates within a temperature range of -40°C to 85°C, making it suitable for extreme conditions.
It utilizes a clamping flange mount, ensuring secure and stable installation in various machine assemblies.
The maximum shaft speed supported by this encoder is 6000 rpm, accommodating diverse application speeds.
The encoder is rated IP65, providing protection against dust and water jets, making it suitable for harsh industrial environments.
It interfaces via EtherCAT, allowing for fast and deterministic communication in automated control networks.
The encoder has dimensions of 90.9 mm in height, 58 mm in width, and 59 mm in depth, allowing for compact integration.
It features an M12 flange connector, ensuring robust electrical connectivity.
Yes, it is designed to be resistant to strong magnetic fields, preserving signal integrity in electromagnetically noisy environments.
This encoder conforms to UL standards, indicating compliance with recognized safety and performance criteria.
The encoder operates with a maximum supply voltage of 30V.
This encoder is suitable for applications in industrial automation, manufacturing process control, and robotics that require precise rotary position measurement.
