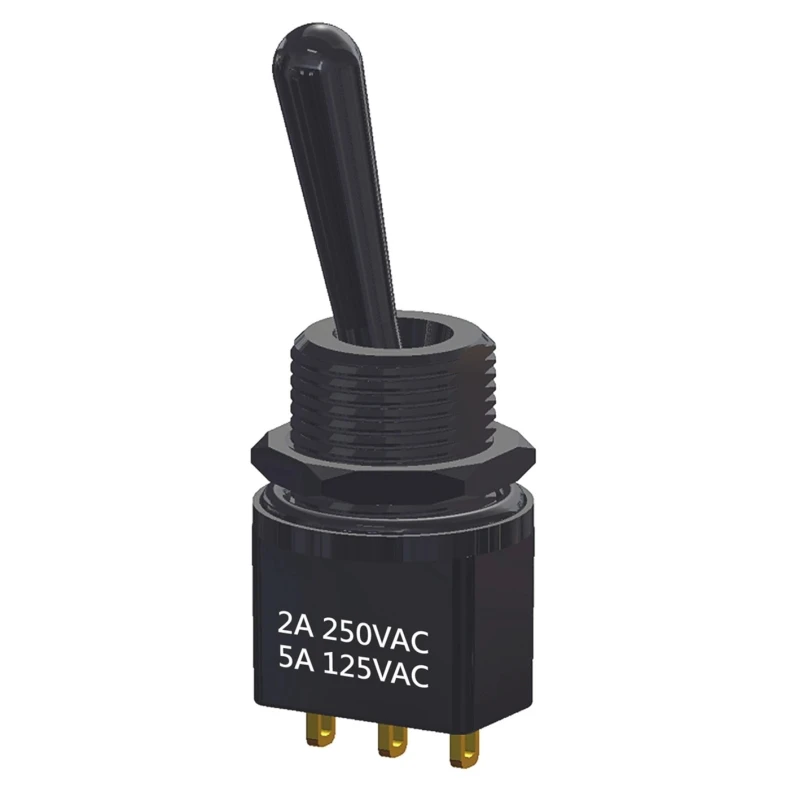

RS PRO Toggle Switch PCB Mount On-Off-On SPDT Solder Terminal 28 V dc 250 V ac 820-0554
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Height | 39.8mm |
| Length | 16mm |
| Model | 820-0554 |
| IP Rating | IP67 |
| Width | 14.48mm |
| Mount Type | PCB |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-Off-On |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder |
| Standards/Approvals | MIL-STD-202F |
| Switch Operation | On-Off-On |
| Actuator Length | 18mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Mechanical Life | 50000Cycles |
| Contact AC Voltage | 250V ac |
| Actuator Material | Brass |
Key Features
- The switch features a sealed miniature design with an IP67 rating.
- It is suitable for both low-level and power applications, with a switch contact current of 5A.
- Constructed with a brass actuator and two O-ring frontal seals for enhanced durability and mechanical strength.
- Designed for PCB mounting with solder terminals for reliable connectivity.
- Operating temperature range from -30°C to 85°C ensures performance under varied conditions.
- The compact dimensions are 39.8mm (H) x 16mm (L) x 14.48mm (W).
- Mechanical life rated at 50,000 cycles assures long-term usage.
- Conforms to MIL-STD-202F standards and originates from Taiwan, Province Of China.
Product Description
RS PRO presents the model 820-0554 toggle switch designed for PCB mounting applications, featuring an On-Off-On SPDT switch operation. This switch is engineered for both electrical and industrial use, providing reliable switching performance with contact ratings suitable for 28 V dc and 250 V ac loads.
The IP67 sealing rating ensures complete protection against dust and immersion in water, making it ideal for harsh environments. The device incorporates a double shell case and two frontal O-ring seals that maintain the integrity of the seal during operation, along with full rear sealing to prevent ingress of flowing water.
Constructed with a brass actuator measuring 18mm in length, the switch offers robust mechanical strength and electrical insulation. It is particularly suited for applications requiring reliable low-level switching down to 10mA at 50mV, as well as power switching up to a contact current of 5A.
With compact dimensions of 39.8mm height, 16mm length, and 14.48mm width, this switch fits well in tight PCB assemblies. The operational temperature range from -30°C to 85°C ensures consistent performance across a wide variety of industrial and commercial environments.
This model complies with MIL-STD-202F standards, reflecting rigorous mechanical and environmental testing. It boasts a mechanical lifespan of 50,000 cycles, providing dependable, long-lasting switching capability.
The switch is sealed to IP67 standards for dust and water ingress protection. Features solder terminals designed for secure PCB mounting. Brass actuator material provides durable mechanical operation. Double shell case enhances mechanical strength and insulation.
Suitable for industrial, automation, and electrical control applications. Compact size contributes to efficient PCB layout design. Meets stringent military standards for reliability. Manufactured in Taiwan, Province Of China.
This RS PRO Toggle Switch is an excellent choice for applications including but not limited to industrial automation systems, electrical equipment, and control panels requiring robust, sealed, and reliable switching components. Explore the Electronics & Electricals category on EnvMart for related products and components from RS PRO.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch has an SPDT (Single Pole Double Throw) contact configuration, allowing it to switch between two circuits.
It is rated for a contact DC voltage of 28V and an AC voltage of 250V.
The switch can handle a maximum contact current of 5A.
The dimensions of the switch are 39.8mm in height, 16mm in length, and 14.48mm in width.
The operating temperature range is from -30°C to 85°C, ensuring performance in various conditions.
It has a mechanical life rated for 50,000 cycles, providing long-term usability.
This model features solder terminals designed for reliable PCB mounting.
The switch has an IP67 rating, providing complete protection against dust and immersion in water.
The actuator is constructed from brass, which enhances its mechanical strength and electrical insulation.
It conforms to MIL-STD-202F standards, indicating it has undergone rigorous mechanical and environmental testing.
This switch is suitable for industrial, automation, and electrical control applications that require reliable switching components.
The toggle switch is manufactured in Taiwan, Province Of China.
