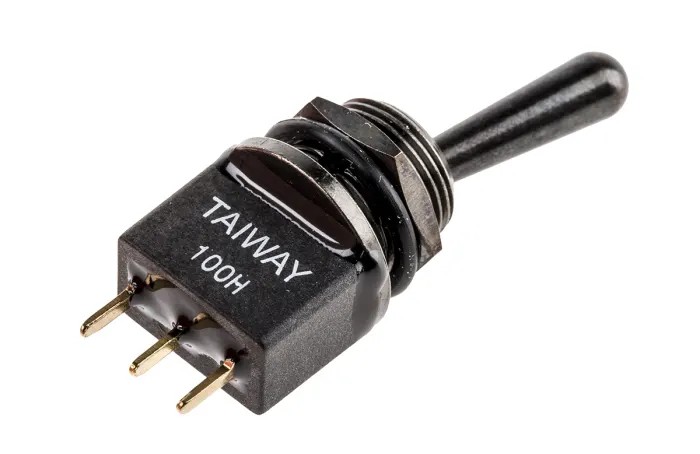

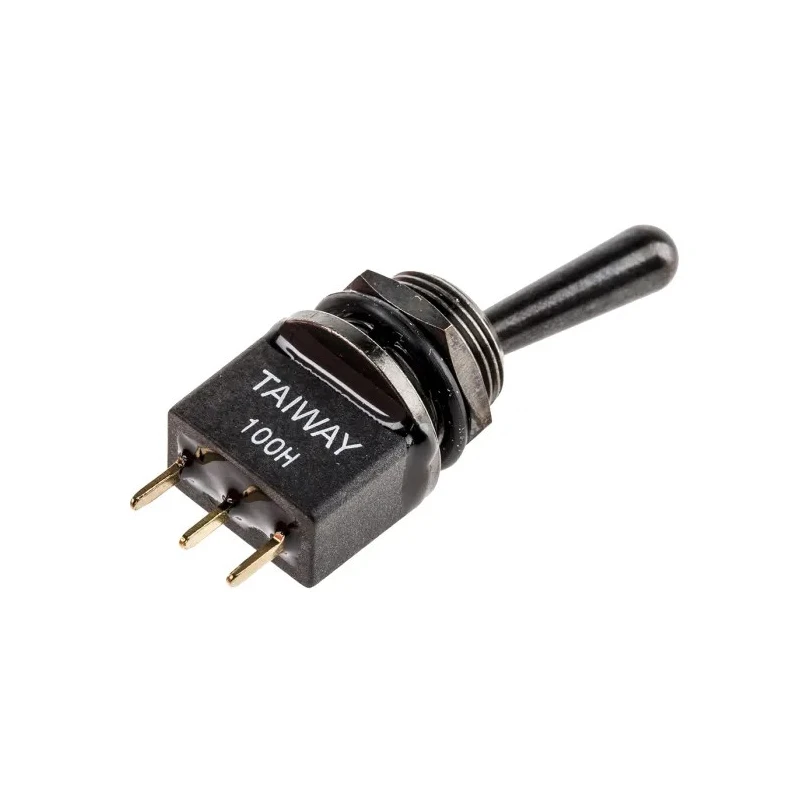

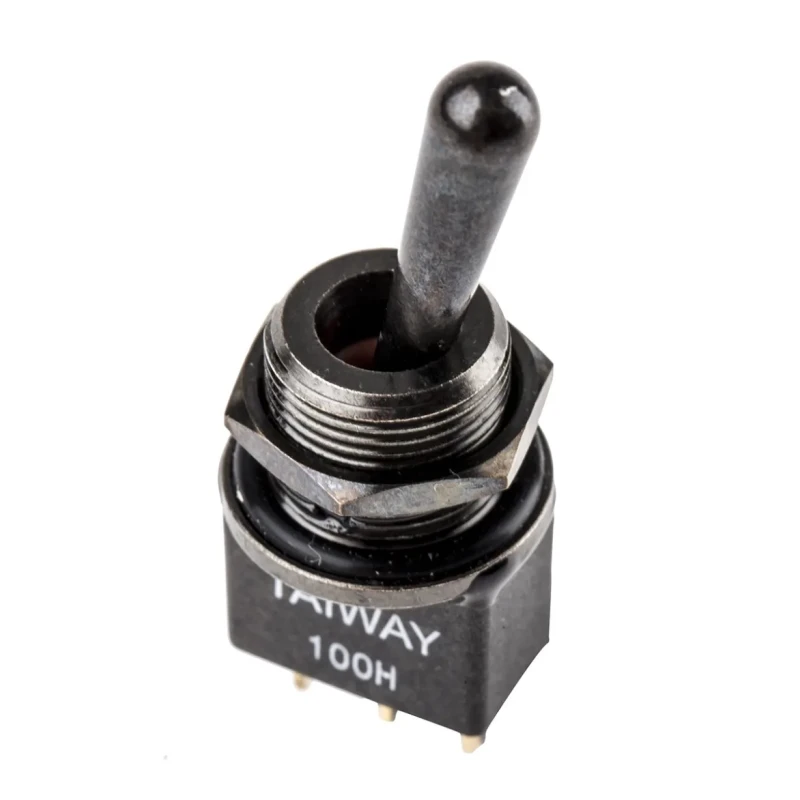

RS PRO Toggle Switch PCB Mount On-On SPDT Through Hole Terminal 20 V DC 20 V AC 820-0539

RS PRO 820-0539 Toggle Switch PCB Mount On-On SPDT is a high-quality miniature toggle switch designed for industrial and commercial electronic applications requiring reliable low voltage switching solutions.

This toggle switch features a SPDT (Single Pole Double Throw) contact configuration with On-On switch operation, allowing circuit users to maintain two stable ON positions as needed.

The mount type is designed for PCB through hole installation, providing secure mechanical fitment and ease of integration into printed circuit boards.

With an IP67 sealed double shell case construction and two 'O' ring frontal seals, this switch offers excellent protection against dust, dirt, and water ingress, suitable for harsh industrial environments including exposure to flowing water.

The actuator is made from brass, measuring 18mm in length, contributing to mechanical strength and durability during frequent switching operations. It supports an electrical contact rating of 400mA at both 20V DC and 20V AC, making it suitable for low power control circuits.

The switch complies with MIL-STD-202F military standards ensuring robust mechanical and electrical performance under demanding conditions.

With a mechanical life expectancy of 50,000 cycles and operational temperature range from -30°C to 85°C, it is well suited for industrial, automation, electronics manufacturing, and commercial applications requiring durability and reliability.

The switch features a SPDT contact configuration for versatile circuit control. Operation mode is On-On for stable switching actions. Mount type is PCB with through hole terminals ensuring secure installation. Rated for 20 V DC and 20 V AC contact voltage for low voltage applications.

Actuator is brass material with 18mm length for robust mechanical performance. Switch is sealed with IP67 rating, suitable for harsh environments including exposure to flowing water. Rated for 400mA switch contact current supporting moderate electrical load.

Mechanical life expectancy is 50,000 cycles for long-term reliability. The switch is compliant with MIL-STD-202F standards ensuring quality and durability. Operating temperature range is from -30°C to 85°C accommodating varied environmental conditions.

This toggle switch is ideal for applications in industrial automation, electronics equipment, control panels, and environments demanding sealed, reliable switching performance. Explore more industrial-grade Toggle Switches and electronic components to complement your projects on EnvMart.
