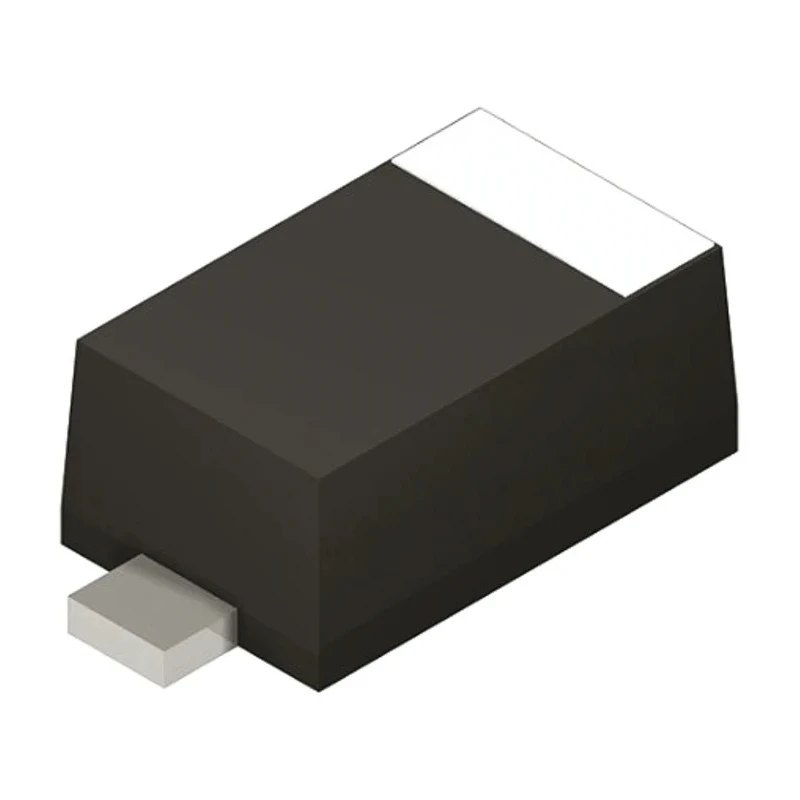

Nexperia Schottky Diode 60 V 200 mA 2-Pin Surface Mount SC-90 PMEG6002EJ,115

Nexperia PMEG6002EJ,115 Schottky Diode is a high-efficiency discrete semiconductor designed for surface mount applications. It features a 2-pin SC-90 ultra-small, low-profile package optimized for minimal forward voltage drop and high junction temperature endurance, making it ideal for power management in compact electronics.

Rated for a maximum continuous forward current of 200 mA and a peak reverse repetitive voltage of 60 V, this diode is well suited for a range of low-voltage industrial and commercial electronic circuits. Its Schottky rectifier design provides low leakage current and low capacitance, enabling faster switching speeds with negligible power losses.

The diode operates efficiently within an extended temperature range from -55°C up to 150°C, supporting automotive and industrial temperature requirements with AEC-Q101 certification for automotive applications. Its peak reverse current of 100 µA and a fast peak reverse recovery time of 5 ns ensure minimal switching noise and improved performance in high-frequency circuits.

The compact dimensions of 1.8 mm length, 1.35 mm width, and 0.8 mm height make this diode ideal for densely packed PCBs, supporting modern miniaturized designs in consumer electronics, telecommunications, automotive electronics, and power supplies.

Maximum continuous forward current: 200 mA for reliable current handling. Peak reverse repetitive voltage: 60 V allowing safe operation in low voltage circuits. Schottky barrier technology ensures ultra-low forward voltage drop.

Low capacitance and leakage current for efficient power switching. Small surface mount footprint adopted in SC-90 package for space-saving design. Wide operating temperature range fits automotive and industrial environments.

Automotive standard AEC-Q101 certified for durability and quality. Fast reverse recovery time of 5 ns suits high-speed switching applications. Negligible power switching losses improve energy efficiency. Made in China under high manufacturing standards.

This Diode is commonly used in power supply circuits, voltage clamping, reverse polarity protection, and RF applications within industrial, automotive, and consumer electronics sectors. Its robust performance in harsh conditions ensures long-term reliability and efficiency.
